The basic fluxgate compass is a simple electromagnetic device that employs two or more small coils of wire around a core of highly permeable magnetic material, to directly sense the direction of the horizontal component of the Earth's magnetic field.

What does a fluxgate magnetometer do?

The fluxgate magnetometer is a magnetic field sensor for vector magnetic field. Its normal range is suitable for measuring earth's field and it is capable of resolving well below one 10,000th of that. It has traditionally been used for navigation and compass work as well as metal detection and prospecting.

What does a fluxgate magnetometer measure?

A fluxgate magnetometer is a highly precise magnetic field sensor. Its typical sensitivity range is fit for measuring earth's magnetic fields, but it is also capable of resolving external magnetic field strengths less than . 01% of that range.

How the fluxgate magnetometer is working?

Working Principle:

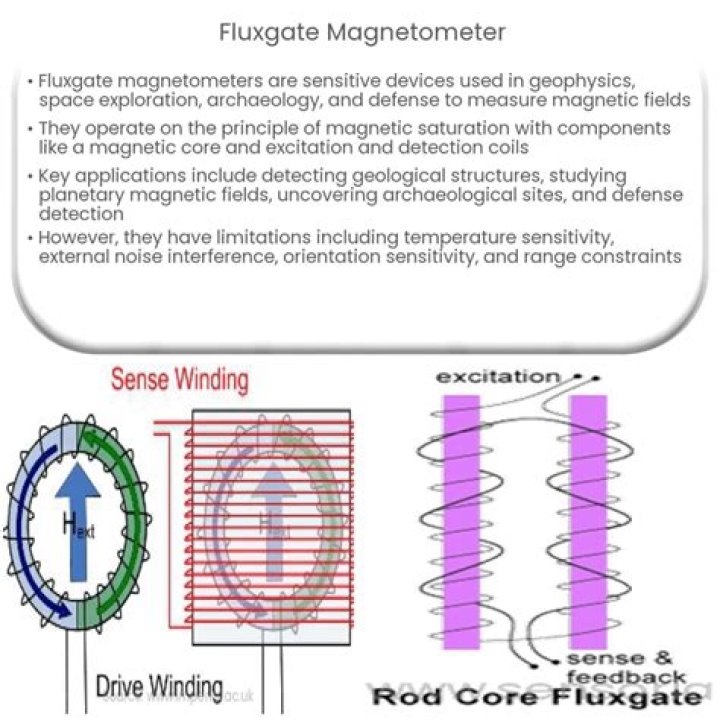

A fluxgate magnetometer consists of a small, magnetically susceptible core wrapped by two coils of wire. ... This constantly changing field induces an electric current in the second coil, and this output current is measured by a detector.

What is a magnetometer used for?

A magnetometer is a scientific instrument used to measure the strength and direction of the magnetic field in the vicinity of the instrument.

Fluxgates: magnetometer technology primer

Is a magnetometer a vibration?

Vibration magnetometer is used for comparison of magnetic moments and magnetic fields. This device works on the principle, that whenever a freely suspended magnet in a uniform magnetic field, is disturbed from it's equilibrium position, it starts vibrating about the mean position.

How do Gradiometers work?

This device consists of two magnetometers placed in series (i.e., one above the other). The result coming from the device is the difference in magnetic flux at that point in space, in other words, the result is the difference between what each of the magnetometers detects.

What is Fluxgate technology?

Fluxgate Technology

It is the transducer that converts magnetic field into electric voltage. The fluxgate is the most widely used magnetic field vector measuring instrument. It is rugged, reliable, and relatively less expensive than the other low-field vector measuring instruments.

What is an optically pumped magnetometer?

Optically pumped magnetometers (OPMs) are, in principle, scalar-type quantum sensors for magnetic fields based on the Zeeman effect. That is the shift of energy levels due to the interaction of atoms with an external magnetic field [1]. Usually alkali vapors in paraffin-coated glass cells are used as sensing element.

Can a magnetometer find gold?

Magnetometers are used to find disseminated gold by its association with mineralized zones which also contain magnetite or other magnetic minerals. ... Gold treasure is a different story and being non-magnetic gold, silver, and other precious minerals are not directly detectable by the magnetometer.

What is a magnetometer in an IMU?

Magnetometer. The third component of our IMU is the magnetometer. This is where I have seen people facing difficulties. It is a device capable of measuring magnetism. It is able to help us find orientation using the earth's magnetic field, similar to a compass.

How does phone magnetometer work?

How it Works. Smartphones come equipped with a magnetometer so that your phone can sense its orientation in space, and use basic apps like the Compass App to determine your location with respect to Magnetic North (or South!). The way this is done is through an internal chip that contains a 3-axis magnetometer.

How accurate is the fluxgate compass?

Accuracy ±1.0° (excluding magnetic anomalies) 2.

What is a fluxgate gradiometer?

Standard fluxgate gradiometers measure the vertical gradient of the local magnetic field which can be influenced by shallow magnetic sub-surface archaeological features. ... In this case the magnetic gradient is derived from the field data and then interpreted to produce maps showing possible sub-surface archaeology.

How does an IMU work?

An inertial measurement unit works by detecting linear acceleration using one or more accelerometers and rotational rate using one or more gyroscopes. ... Typical configurations contain one accelerometer, gyro, and magnetometer per axis for each of the three principal axes: pitch, roll and yaw.

What is OPM Meg?

ABSTRACT. Magnetoencephalography (MEG) is a powerful technique for functional neuroimaging, offering a non-invasive window on brain electrophysiology. ... However, OPM-MEG remains a nascent technology, and whilst viable systems exist, most employ small numbers of sensors sited above targeted brain regions.

How does an optically pumped magnetometer work?

Optically Pumped Magnetometers

The light depopulates one electron energy level in the gas by pumping the electrons to a higher energy level. These electrons spontaneously decay to both energy levels, and eventually, a lower energy level is fully populated.

How does a proton precession magnetometer work?

The proton precession magnetometer operates on the principle that protons in all atoms are spinning on an axis aligned with the magnetic field. Ordinarily, protons tend to line up with the earth's magnetic field. ... When this new field ceases, the protons return to their original alignment with the earth's magnetic field.

What is the function of search coil?

Search coil magnetometers are used to determine the properties of waves, such as comparing the relative electric and magnetic field amplitudes of the waves, or to investigate wave propagation parameters, such as Poynting flux and wave normal vectors.

How does a Hall effect sensor work and how is it different from a magnetic sensor?

Working principle

In a Hall sensor, a current is applied to a thin strip of metal. ... Hall effect sensors respond to static (non-changing) magnetic fields. This is a key difference from inductive sensors, which respond only to changes in fields.

How do you sense DC current?

DC current is determined by measuring voltage drop across a shunt resistors then converted to analog voltage output by the Texas Instruments INA-169. Voltage sense is accomplished by scaling to 3.3V ADC range by a precision resistor divider. The current limit coincides with maximum power rating of the shunt resistors.

What is the difference between compass and magnetometer?

A magnetic compass is designed to give a horizontal bearing direction, whereas a vector magnetometer measures both the magnitude and direction of the total magnetic field.

What is the difference between magnetometer and gradiometer?

The gradiometer is a magnetometer which measures the change in the magnetic field (the gradient of the field). Compared to a magnetometer this increases the measurement accuracy and the sensitivity to regional changes of the Earth's magnetic field. Both measuring systems can also be used on the water.

What is magnetic survey geophysics?

Magnetic surveys are a geophysical method to image anomalies in the earth's magnetic field caused by source bodies within the sub-surface. ... Magnetics are commonly used with gravity as a low cost way to understand the structure of the subsurface during the beginning phases of exploration.
