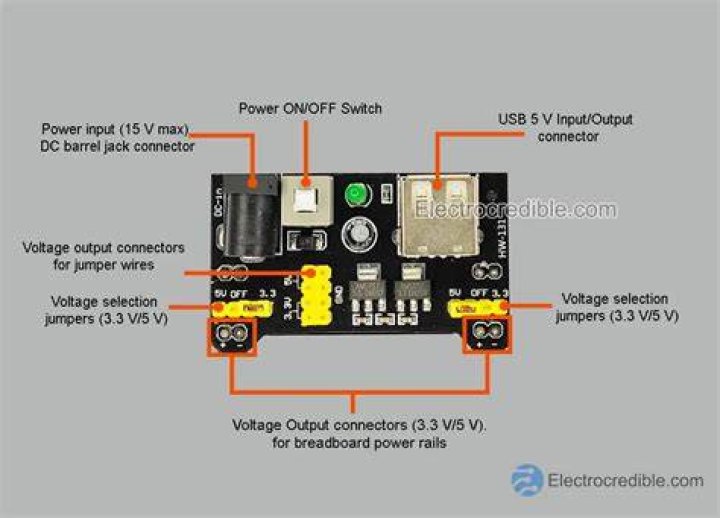

A Breadboard Power Supply Module accepts an input through a barrel jack from a battery, a 12V adapter or any other source, and provides to our circuit a 5V or 3.3V tension, depending on our needs. ...

What is the use of breadboard power supply?

Its ease of use allows users to connect any DC power supply unit that has 6.5-12 VDC power output from a barrel jack. The board has two independent channels of power output for breadboards. These power channels can be independently configured for 3.3V, 0V, and 5V operations.

What is breadboard power?

The breadboard power supply stick regulates voltage from a 9V wall wart to either 5V or 3.3V to the power rails. A simple circuit, involving a button, an LED, and a resistor, built two different ways. The circuit goes as follows: There is a wire connecting the VCC power rail to the positive, anode leg of an LED.

How does a breadboard work?

Breadboards are designed to work with through-hole electronic components. These components have long metal leads that are designed to be inserted through holes in a printed circuit board (PCB) that are plated with a thin copper coating, which allows the components' leads to be soldered to the board.

How do you power a breadboard?

Use a 6 volt lantern battery, a 6V battery pack, or a power source to supply your breadboard. Use red wire to connect from the +6V terminal to the top bus on your breadboard. Use a black wire to connect from 0V (marked - on batteries) to the lower bus on your breadboard; this is 'ground'.

How to use a breadboard power supply module for DIY learning electronics

How do you power an Arduino breadboard?

Step 1: Place the LED sensor in the breadboard. Step 2: Connect its one pin to A0 (analog pin) of Arduino, and connect its pin to GND pin of Arduino. Step 3: Place another LED on a breadboard and connect a 220-ohm resistor to its Anode. Step 4: Connect a wire from the resistor to pin 13 on Arduino (digital pin).

How do you connect a battery to a breadboard?

1. Connect the battery positive (red) wire to the positive (longer) leg of the LED.
2. Connect the shorter leg of the LED to one side of the resistor.
3. Connect the other side of the resistor to the battery negative (black) wire.

Where is breadboard used?

A breadboard is a rectangular board with many mounting holes. They are used for creating electrical connections between electronic components and single board computers or microcontrollers such as Arduino and Raspberry Pi. The connections aren't permanent and they can be removed and placed again.

What is a breadboard used for in electronics?

A thin plastic board used to hold electronic components (transistors, resistors, chips, etc.) that are wired together. Used to develop prototypes of electronic circuits, breadboards can be reused for future jobs. They can be used to create one-of-a-kind systems but rarely become commercial products.

Does Arduino need a power supply?

All Arduino boards need electric power to function. A power supply is what is used to provide electric power to the boards and typically can be a battery, USB cable, AC adapter or a regulated power source device.

Do you need to power a breadboard?

Typically, you only need to connect a power and ground wire from the posts to the breadboard. If you need an alternate power source, you can use the third post. Now your posts are connected to the the breadboard, but there is still no power.

Why is a resistor important?

Resistors ensure components receive the proper voltage by creating a voltage drop, and they can protect a component from voltage spikes. ... If a component in your circuit requires less voltage than the rest of your circuit, a resistor will create a voltage drop to ensure the component does not receive too much voltage.

What does the Arduino power supply module do?

A Breadboard Power Supply Module accepts an input through a barrel jack from a battery, a 12V adapter or any other source, and provides to our circuit a 5V or 3.3V tension, depending on our needs. We're going to soon introduce Arduino into our circuits, and all our Arduino circuits will work with those voltage levels.

What is breadboard circuit?

A breadboard is used to build and test circuits quickly before finalizing any circuit design. The breadboard has many holes into which circuit components like ICs and resistors can be inserted. ... The bread board has strips of metal which run underneath the board and connect the holes on the top of the board.

How do you use a breadboard simulator?

1. Step 1: Create an Account. Go to 123d.circuits.io and fill in your user name, email and password.
2. Step 2: Creating a Breadboard Circuit. ...
3. Step 3: Editor Overview. ...
4. Step 4: Create Your Breadboard Design. ...
5. Step 5: Simulate the Circuit. ...
6. Step 6: Get Insight in the Circuit Using the Multimeter.

Why is it called breadboard?

A breadboard, or protoboard, is a construction base for prototyping of electronics. Originally the word referred to a literal bread board, a polished piece of wood used when slicing bread. ... This makes it easy to use for creating temporary prototypes and experimenting with circuit design.
