The frontal plane of projection is the plane onto which the front view of a multiview drawing is projected. The top view of an object shows the width and depth dimensions. The top view is projected onto the horizontal plane of projection, which is plane suspended above and parallel to the top of the object.

What are the 3 planes of projection?

These are Top View, Front View, and Side View. If the plane is kept in a vertical position, then it is called the vertical plane. If the plane is kept in a horizontal position, then it is called the horizontal plane.

What are the planes of projection in Multiview projection quizlet?

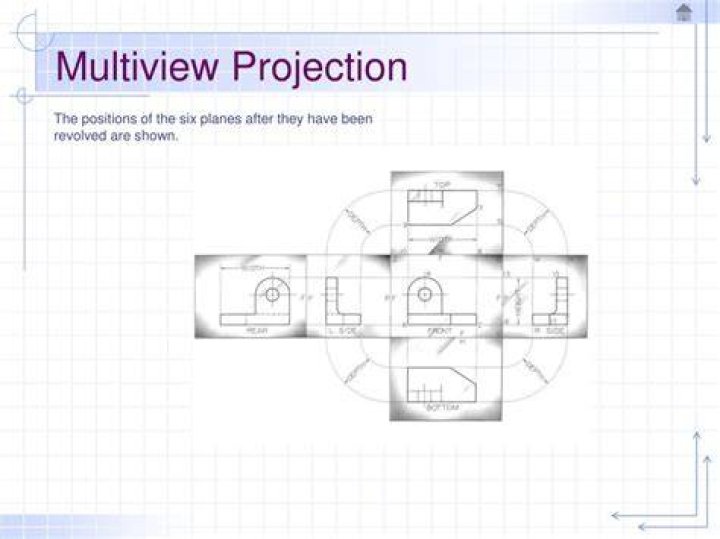

The plane onto which the front view of a multiview drawing is projected. A plane suspended above and parallel to the top of the object. A plane that is parallel to the right side of the object. The six mutually perpendicular views that are produced by six mutually perpendicular planes of projection.

What are the planes of projection in Multiview projection GC 120?

What are the planes of projection in multiview projection? What dimension is shared between the top view and the left side view? Front view is placed in the first quadrant, so views are to the left and bottom. Front view is placed in the third quadrant, so views are to the right and top.

How many types of multiview projection are there?

Multiview projections are a collection of flat 2-D drawings of the different sides of an object. Only two forms of orthographic projections are used: first-angle ('European ISO-E') and third-angle ('American ISO-A').

What is MULTIVIEW PROJECTION? What does MULTIVIEW PROJECTION mean? MULTIVIEW PROJECTION meaning

What are the three most common views in a multiview drawing?

Although six different sides can be drawn, usually three views of a drawing give enough information to make a three-dimensional object. These views are known as front view, top view and end view. Other names for these views include plan, elevation and section.

Which projection is recommended by BIS?

For orthographic projections, BIS recommends the First-angle projection. The plane of projection is assumed to be transparent.

How is a cutting plane represented?

A cutting plane is represented on a drawing by a cutting plane line. This is a heavy long-short-short-long kind of line terminated with arrows. The arrows in show the direction of view. Once again, here is an graphic example of a cutting plane line and the section that develops from it.

What is axonometric orthographic projection?

Axonometric projection is a type of orthographic projection used for creating a pictorial drawing of an object, where the object is rotated around one or more of its axes to reveal multiple sides.

What is third angle projection in engineering drawing?

3rd Angle project is where the 3D object is seen to be in the 3rd quadrant. It is positioned below and behind the viewing planes, the planes are transparent, and each view is pulled onto the plane closest to it. The front plane of projection is seen to be between the observer and the object.

Is inclined to all three planes of projection?

A primary auxiliary view is projected onto a plane that is perpendicular to one of the principal planes of projection and is inclined to the other two. A secondary auxiliary view is projected from a primary auxiliary view onto a plane that is inclined to all three principal projection planes.

What surface is a plane surface parallel to a plane of projection?

A plane surface that is parallel to a plane of projection appears on edge as a straight line.

What is a view projected from a primary view called?

A view projected from a primary auxiliary view is called a. front auxiliary view.

What are the principal planes of projection?

Orthographic projection uses two main planes called the principal planes of projection, they are the vertical plane planes and the horizontal planes. These two planes intersect, producing four quadrants.

What is meant by plane of projection?

: a plane that is intersected by imaginary lines drawn from the eye to every point on the object and that is therefore the plane on which the pictorial representation in perspective is formed.

What are the 3 principal views?

The standard views used in a three-view drawing are the top, front and the right side views Page 16 The width dimensions are aligned between the front and top views, using vertical projection projection lines.

What is a diametric projection?

: an axonometric projection in which only two faces are equally inclined to the plane of projection.

What is the difference between isometric and axonometric?

Isometric (meaning “equal measure”) is a type of parallel (axonometric) projection, where the X and Z axes are inclined to the horizontal plane at the angle of 30⁰. The angle between axonometric axes equals 120⁰. ... Because all edges of an isometric object are inclined at the same angle, they are equally foreshortened.

What is the difference between isometric and Trimetric projections?

What is the difference between isometric Dimetric and Trimetric? Isometric – all dimensions are the same scale. ... Trimetric – tri=3; 3 axes/dimensions foreshortened.

How many planes are cutting?

In the field of engineering, two forms of cutting plane lines have been approved for use on plans. A series of evenly spaced dashes with arrows at the end comprises the first approved form.

What is viewing plane line?

viewing plane line. The line used to define an auxiliary view. If the line were projected through the drawing sheet to create a plane, this plane would define the view. The viewing plane line is displayed on the drawing sheet to show the orientation of the auxiliary view in relation to the principal view.

What are the 7 types of section views?

There are a number of different types of sectional views that can be drawn. A few of the more common ones are: full sections, half sections, broken sections, rotated or revolved sections, removed sections, offset sections, and assembly sections.

Which drawing sheet is recommended by BIS?

The Engineering drawing sheet sizes as recommednded by BIS. The Bureau of Indian Standards recommends the “ISO-A series” size of drawing sheet for engineering drawing works. The Bureau of Indian Standards specifies all of their recommendations for engineering drawing sheets in its bulletin IS 10711: 2001.

Which angle projection is not recommended?

Therefore fourth angle projection is also not used. To sum up, Because of the overlapping of front and top views 2nd and 4th angle projections are not used. First and third angle projection systems are recommended for orthographic projections.

Which angle of projection is used in India?

First angle projection is widely used in India and European countries. The object is placed between the observer and projection planes. The plane of projection is taken solid in 1st angle projection.
