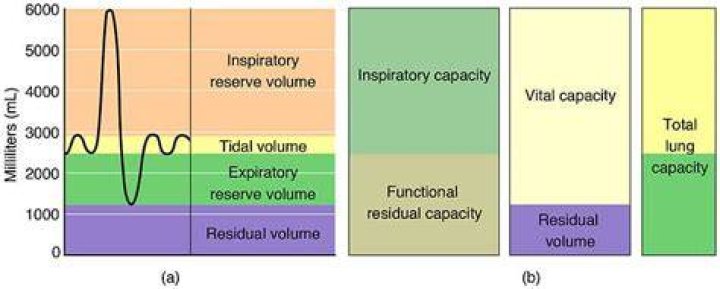

Four standard lung volumes, namely, tidal (TV), inspiratory reserve (IRV), expiratory reserve (ERV), and residual volumes (RV) are described in the literature. Alternatively, the standard lung capacities are inspiratory (IC), functional residual (FRC), vital (VC) and total lung capacities (TLC).

What are the 4 Respiratory volumes that are included in total lung capacity?

Total Lung Capacity(TLC)

The normal value is about 6,000mL(4‐6 L). TLC is calculated by summation of the four primary lung volumes (TV, IRV, ERV, RV).

What are the 4 volumes seen on a spirometer?

Four lung capacities are also defined: inspiratory capacity, vital capacity, functional residual capacity, and the total lung capacity. Pulmonary ventilation is the product of tidal volume and respiratory frequency. The maximum voluntary ventilation is the maximum air that can be moved per minute.

What are the four respiratory volumes Class 11?

This is a sum total of residual volume, expiratory reserve volume, inspiratory reserve volume and tidal volume. The total lung capacity formula is RV+ERV+TV+IRV.

What is minute volume and tidal volume?

Breathing rate (frequency, BR) is the number of breaths in a minute. The average breathing rate is 12 breaths per minute. Tidal volume (TV) is the amount of air breathed in with each normal breath. ... Minute ventilation (VE) is the total volume of air entering the lungs in a minute.

Lung Function - Lung Volumes and Capacities

What is EC in breathing?

Expiratory Capacity (EC) - This suggests a total amount of air an adult exhales during a normal breathing process. A summation of expiratory Reserve Volume and Tidal Volume, its formula is EC= ERV+TV.

What are the respiratory volumes and capacities?

Air in the lungs is measured in terms of lung volumes and lung capacities. Volume measures the amount of air for one function (such as inhalation or exhalation) and capacity is any two or more volumes (for example, how much can be inhaled from the end of a maximal exhalation).

What are static lung volumes?

Lung volumes that are not affected by the rate of air movement in and out of the lungs are termed static lung volumes. The following five static lung volumes can be measured: VT (tidal volume), IRV (inspiratory reserve volume), ERV (expiratory reserve volume), IC (inspiratory capacity) and VC (vital capacity).

What is lung tidal volume?

Tidal volume is essentially every breath a person takes. It is one of the main determinants of minute ventilation and alveolar ventilation. Minute ventilation, also known as total ventilation, is a measurement of the amount of air that enters the lungs per minute. It is the product of respiratory rate and tidal volume.

What is lung volume ks3?

To measure a volume, blow through the tubing so that the air pushes water out. After a deep breath, the volume of the water that you expel from the bottle is the same as the volume of your lungs.

How are static lung volumes measured?

Static lung volumes are measured by methods which are based on the completeness of respiratory manoeuvres, so that the velocity of the manoeuvres should be adjusted accordingly. The measurements taken during fast breathing movements are described as dynamic lung volumes and as forced inspiratory and expiratory flows.

How do you measure respiratory volume?

1. The most accurate way is called body plethysmography. You sit in a clear airtight box that looks like a phone booth. ...
2. Lung volume can also be measured when you breathe nitrogen or helium gas through a tube for a certain period of time.

What is alveolar sac?

(al-VEE-oh-ly) Tiny air sacs at the end of the bronchioles (tiny branches of air tubes in the lungs). The alveoli are where the lungs and the blood exchange oxygen and carbon dioxide during the process of breathing in and breathing out.

Which of the following respiratory capacity includes residual volume?

(i) Inspiratory Capacity (IC) = Tidal Volume + Residual Volume.

What is a low lung volume?

Low lung volume

If your lung volume is lower than normal, this may be a sign of a restrictive lung condition such as pulmonary fibrosis or sarcoidosis.

What is dynamic lung volume?

Lung volumes that depend upon the rate at which air flows out of the lungs are termed dynamic lung volumes. There are various dynamic tests: Forced Vital Capacity test, and the Maximum Voluntary Ventilation test.

What is tidal volume measured in?

Tidal volume (Vt or TV) is a physiological term used to describe the amount of air typically moved during inspiration and expiration while you are at rest. It is measured by spirometry. On average, adults breathe 7 milliliters (mL) per kilogram (kg) of ideal body weight.

How many lobes are in each lung?

The lung consists of five lobes. The left lung has a superior and inferior lobe, while the right lung has superior, middle, and inferior lobes. Thin walls of tissue called fissures separate the different lobes.

What is respiratory reserve volume?

The inspiratory reserve volume is the amount of air a person can inhale forcefully after normal tidal volume inspiration; the expiratory reserve volume is the amount of air a person can exhale forcefully after a normal exhalation.

What is the normal size of lungs?

In the normal adult, the lungs weigh approximately 1000 g. Lung volume increases from about 250 mL at birth to 6000 mL in the adult. The height of a normal adult lung is 27 cm at total lung capacity, but in the range of normal breathing it is approximately 24 cm in height.

What does 50% lung capacity mean?

Likewise, if your FEV1 is 50%, your lungs are able to handle only half as much air as they should. If your FEV1 is 33%, your lungs are able to handle even less—only a third as much. The lower your FEV1 percentage, the less air your lungs are able to handle.

How many Litres is lung capacity?

Did you know that the maximum amount of air your lungs can hold—your total lung capacity—is about 6 liters? That is about three large soda bottles. Your lungs mature by the time you are about 20-25 years old.

When 1200 mL air is left in the lungs it is called?

Residual Volume (RV): Volume of air remaining in the lungs even after a forcible expiration. This averages 1100 mL to 1200 mL.
