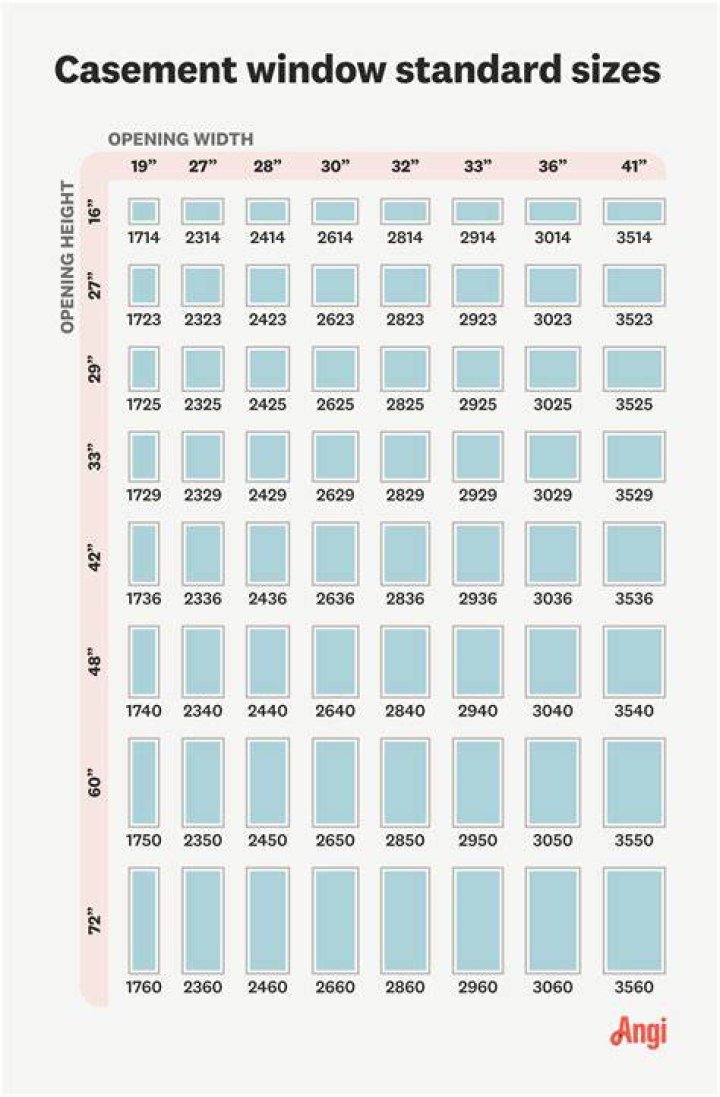

Casement windows are designed to open from the side and are perfect for areas of the house that require more ventilation, like a bathroom or a kitchen. Standard width is between 1 foot, 2 inches and 2 feet, 11.5 inches. Standard height is between 2 feet, 5.5 inches, and 6 feet, 5.5 inches.

Are all casement windows the same size?

The truth is, there is no “right size.” While some casement window sizes might be more common than others, when it comes down to it, every window purchase is unique and can be custom-fit to the buyer's window size.

How do you size a casement window?

Run a tape measure from the inside edge of one window side jamb -- the vertical boards framing the window -- to the opposite inner side jamb on the other side of the window. Use a steel tape measure to ensure accuracy. Measure at the top, bottom, and about halfway up the window.

What window sizes are standard?

The most common widths for picture windows are 2 ft, 3 ft, 4 ft, 6 ft, and 8 ft. Standard picture window heights can range from 1 ft to as tall as 8ft.

What is 2 lite casement window?

Double casement windows, also known as French casement windows, have two sashes that open from the center with no center stile, offering a wide, unobstructed pane of glass. This custom option is hinged on each side and can operate with a single, easy-to-reach handle.

What is the standard size of a window in residential Buildings?

What is single casement window?

The single casement window is one of the most common types, with one single window opening on a hinge along the side of the window. The single casement window is a great way to add extra charm to any home, old or new. It's most commonly used on standard sized windows in the bathroom, bedroom, or living room.

What is a Push Out Casement?

The Push Out Casement operates easily with the turn of a level and an outward push. Because of the lack of a crank handle, the simple hardware allows for low-profile interior wood stops, giving the window a sleek, contemporary look. ... The screen options are one of the things that make this window truly unique.

What's the most common window size?

So, What Is The Most Common Window Size? The most common window size or average window size is 24×36. All common window sizes & dimensions for fixed, standard & double-hung windows can differ on manufacture.

How do I know my window size?

1. Measure the height from the head of the window (top fixed-frame piece) to the windowsill (bottom fixed-frame piece)
2. As with the width, take three measurements: down the left side, right side and the middle.
3. Record the shortest measurement — this ensures that the new window will fit.

What are standard UK window sizes?

• 1,500 mm.
• 1,350 mm.
• 1,200 mm.
• 1,050 mm.
• 600 mm.
• 450 mm.

What is the standard window height from floor?

Standard windows are three feet from the floor and about 18 inches from the ceiling.

What is the rough opening for a 36 inch window?

For example, a 30 inch wide, by 36 inch high wood window, would require a rough opening width of 32 inches and a height of 38 inches.

What is a French casement window?

Similar to a hinged French door, a French casement window has two sashes that extend outward from the center of the window to create a wide opening. With no central post in the window frame, French casement window panels crank open simultaneously for twice the ventilation and an unobstructed view.

What is the standard rough opening for a window?

Recommended rough opening is between 3/4" (19mm) - 1" (25mm) larger than the window width and height. Ensure that the rough opening is plumb, level and square, and the walls in the opening are not twisted. a) 1 1/2" (38 mm) solid blocking is required at the sill and sides of the opening.

What is the difference between rough opening and window size?

A rough opening is the opening that is left in a frame wall where the window frame will sit. The measurements of the rough opening will be important for you to choose the right window frame size. The actual window size will be lesser as the frame will have a header, sill, and vertical trimmers that will have to fit in.

How tight should replacement windows fit?

All windows need a little extra wiggle room to allow you to shim the window and square it in the opening. When ordering a replacement window, subtract 1/4 inch from both the width and height to determine the exact replacement size. Keep your original measurements in case the manufacturer recommends a greater clearance.

How many inches wide is a standard window?

Width: between 36 and 84 inches (standard dimensions: 36 in, 48 in, 60 in, 72 in, 84 in) Height: between 24 and 60 inches (standard dimensions: 24 in, 36 in, 48 in, 60 in)

What does nominal window size mean?

The Nominal size of a window is really the size needed for the rough opening. ... Usually the gap between the inside of the rough opening and outside of the window is between 5/8” – ½” each side. Some vendors have very small gaps between ¼ and 3/8” each side.

Do push out casement windows have screens?

Casement windows are hinged at the side and open outward like a door. It looks like a picture window because unlike double hung or sliding windows, a casement window has no rail. ... Screens are placed on the inside of the window, where they're more protected from the elements.

Can casement windows have screens?

Casement windows are hinged on the side like a door, and they open sideways with a hand crank located on the inside of the house. The windows have optional screens, which are removable from the inside of the house.

What do you call windows that open upwards?

Casement windows are a very popular replacement window type. They are often a single pane of glass that can be cranked open and out from the side. Many homeowners put double casement windows next to each other opening up on each side.

What is the maximum width of a casement window?

In terms of the maximum range for casement windows, you can get double-glazed windows as large as 38 inches wide by 78 inches high. The maximum for triple-glazed casement windows is almost the same, at 37 x 78 inches.

Are casement windows single pane?

It has a single frame with window panes separated by wooden strips. Depending on the way of mounting, you can open it outwards or inwards. Benefits of this type of windows are: Durability – It is the type of casement windows that last long thanks to the frame being hinged on the side.
