Schuler oscillations are characteristic 84 minute cyclic responses of the correct navigation calculations in an INS (inertial navigation system) to incorrect INS initialization and inertial sensor errors.

What is Schuler cycle?

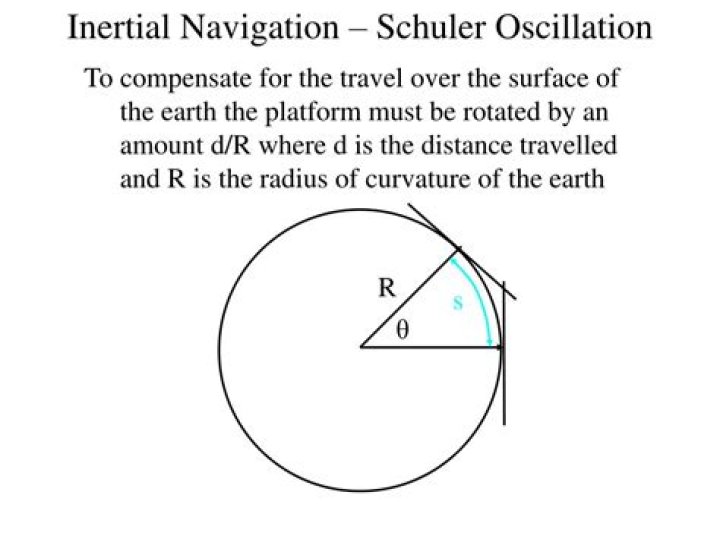

Schuler tuning is a design principle for inertial navigation systems that accounts for the curvature of the Earth. An inertial navigation system, used in submarines, ships, aircraft, and other vehicles to keep track of position, determines directions with respect to three axes pointing "north", "east", and "down".

How does inertial navigation system work?

An inertial navigation system (INS) is a navigation device that uses a computer, motion sensors (accelerometers) and rotation sensors (gyroscopes) to continuously calculate by dead reckoning the position, the orientation, and the velocity (direction and speed of movement) of a moving object without the need for ...

What is the difference between INS and IRS?

An inertial navigation system (INS) is used on some large aircraft for long range navigation. This may also be identified as an inertial reference system (IRS), although the IRS designation is generally reserved for more modern systems.

What are the disadvantages of inertial navigation system?

A system's IMU measures variables such as position, velocity, and altitude. One disadvantage of INS systems is the cost, including the acquisition cost, operations cost, and maintenance cost. Other disadvantages include increasing navigation errors over time and heat dissipation.

schuler oscillations

How does a laser gyroscope work?

When a ring laser gyro is in motion, the beams of light travel different distances. The difference in frequency is proportional to the rotation rate. The frequency difference is measured via an interference fringe pattern whose phasing contains the directional information.

Who invented ring laser gyroscope?

In Chapter 11 we defined the ring laser gyroscope (RLG) as an active resonator optical gyro. Clifford Heer conceived the RLG in 1961 [1]; he saw that the properties of the laser, recently invented by Schawlow and Townes, could be exploited to measure rotation.

Is laser gyro has rotating mechanical gyro?

Principle of operation

RLGs, while more accurate than mechanical gyroscopes, suffer from an effect known as "lock-in" at very slow rotation rates. ... The ring laser cavity is rotated clockwise and anti-clockwise about its axis using a mechanical spring driven at its resonance frequency.

What is the purpose of a ring laser gyroscope?

3.09.

Ring laser gyroscopes measure the absolute rotation of the Earth in the sense that, in principle, just a single measurement of the Sagnac frequency is required to determine n·ω.

How does a MEMS gyroscope work?

MEMS gyroscopes measure angular rate by means of Coriolis acceleration. ... The acceleration required is the Coriolis acceleration. If Ω is the angular rate and r is the radius, the tangential velocity is Ωr. So if r changes at speed v there will be a tangential acceleration Ωv.

How much is a laser gyroscope?

Silicon and quartz gyroscope technologies are primarily used for automotive applications, with pricing on the order of $60 for gyroscopes in applications such as vehicle dynamic control and navigation assist. Gyroscopes for less-demanding applications like rollover detection cost even less.

What is the advantage of gyroscope?

The gyroscope allows tracking of the twists, turns & rolls of the object in motion, Access to more accurate orientation information has wide-ranging practical applications, helping the land-based robot account for the obstacles it runs over, translating the person's real-world movement into the virtual world, or ...

What is a laser gyro aviation?

The ring laser gyro uses laser light to measure angular rotation. Each gyro is a triangular-shaped, helium-neon laser that produces two light beams, one traveling in the clockwise direction and one in the counterclockwise direction.

When was the ring laser gyroscope invented?

Following mechanical gyroscopes, the first ring laser gyroscope was invented in 1963 by Mecek and Davis.

How does RLG seek North?

Gyroscopes measure angular velocity relative to its inertial position. A 2-axis gyroscope can find north, and a 3-axis gyroscope detects the Earth's axis of rotation. ... Optical – Fiber optic gyros (FOG) and Ring Laser Gyro (RLG), based on the Sagnac effect.

What are the types of gyroscope?

• Mechanical gyroscope.
• Optical gyroscope.
• Gas-bearing gyroscope.

What is inertial reference system in aircraft?

If you consider avionics the “brains” of an aircraft, the inertial reference system is its heart. ... Inertial reference systems use gyroscopes, accelerometers and electronics to provide precise attitude, velocity and navigation information so an aircraft can determine how its moving through the airspace.

What are the advantage of inertial navigation over GPS?

The benefits of using GPS with an INS are that the INS may be calibrated by the GPS signals and that the INS can provide position and angle updates at a quicker rate than GPS. For high dynamic vehicles, such as missiles and aircraft, INS fills in the gaps between GPS positions.

How accurate are inertial navigation systems?

The value of the INS manufactured by OxTS is in their extremely high accuracy. A single-antenna GPS navigation system of the kind found in a modern car can typically achieve horizontal positioning accuracy of 10m in good conditions – that is, in open space, with a stable GPS signal.

What is the difference between GPS and INS?

A GPS gives you position only and provides update rates at a slower speed. A GPS INS fuses IMU data with calibrated IMU data with the GPS solution. As a result, we're able to give you orientation data, roll pitch and heading, and give you update rates at a much higher rate than the GPS can.

What is inertial altitude?

The inertial navigation system is an unstable system, which relies on the acceleration measurement integration to obtain the height estimation. So auxiliary inertial altitude channel equipment, such as the barometric altimeter is used to assist the height measurement of inertial navigation.

What is IRS aviation?

Inertial Reference System (IRS) refers to a solid-state unit of three Ring Laser Gyros detecting accelerations in 3 dimensions; they may also contain quartz accelerometers. Inertial Reference Unit (IRU)

What is AHRS aviation?

An attitude and heading reference system (AHRS) uses an inertial measurement unit (IMU) consisting of microelectromechanical system (MEMS) inertial sensors to measure the angular rate, acceleration, and Earth's magnetic field. These measurements can then be used to derive an estimate of the object's attitude.
