Hachures are short lines laid down in a pattern to indicate direction of slope. When it became feasible to map rough terrain in more detail, hachuring developed into an artistic speciality.…

What do hachure lines mean?

: a short line used for shading and denoting surfaces in relief (as in map drawing) and drawn in the direction of slope. hachure. verb. hachured; hachuring.

What do hachure lines represent on a topographic map?

As the use of shading became systematized during the eighteenth and nineteenth centuries, French cartographers referred to these shading lines as "hachures." Hachures represent the slope of the land—the more gentle the slope, the fewer the lines—and the absence of line indicates flat terrain.

What is the meaning of Hachuring?

A method of representing relief upon a map or chart by shading in short disconnected lines drawn in the direction of the slopes.

What is an index line?

Index lines are the thickest contour lines and are usually labeled with a number at one point along the line. This tells you the elevation above sea level. 2. Intermediate lines are the thinner, more common, lines between the index lines.

Hachure Lines

What is Hill shading?

Definition: Hillshading is the process of adding light and dark areas or shading to a map to highlight the location of hills or mountains. Hillshading uses light and dark areas to highlight where sunlight would hit and where shadows would form in the presence of hills and mountains. Hillshading.

What are hachure marks used for?

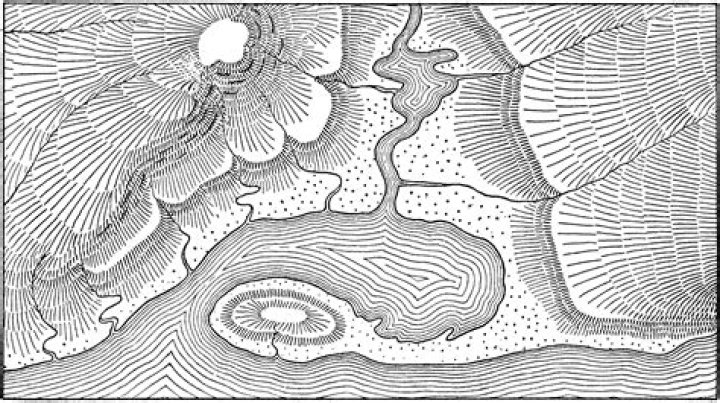

Hachures (/ˈhæʃʊərz/) are an older mode of representing relief. They show orientation of slope, and by their thickness and overall density they provide a general sense of steepness.

What is a hachure in geography?

Hachures are short lines laid down in a pattern to indicate direction of slope. When it became feasible to map rough terrain in more detail, hachuring developed into an artistic speciality.…

What is gradient geography?

Gradient is a measure of how steep a slope is. The greater the gradient the steeper a slope is. The smaller the gradient the shallower a slope is.

What are the disadvantages of Hachuring?

Hachures are an older mode of representing relief features on a map. In hachures, on a gentle slope, lines become thin and are far apart from each other. These lines are closely spaced on a steeper slope. One disadvantage of hachures is that they do not tell us about the actual height above sea level.

What does a topographic map measure?

Topographic maps are a detailed record of a land area, giving geographic positions and elevations for both natural and man-made features. They show the shape of the land the mountains, valleys, and plains by means of brown contour lines (lines of equal elevation above sea level).

What do you know about contour lines?

A contour line is a line drawn on a topographic map to indicate ground elevation or depression. A contour interval is the vertical distance or difference in elevation between contour lines. Index contours are bold or thicker lines that appear at every fifth contour line. ... Sharp contour points indicate pointed ridges.

What direction do contour lines bend along a river?

The bending of the contour lines near the river always points uphill, which means RIVERS ALWAYS FLOW IN THE OPPOSITE DIRECTION FROM THE WAY THE CONTOUR LINES BEND. represented by a series of closed circles. For a hill the elevation of each contour line increases as you move towards the center of the circle.

How are contour lines drawn on maps?

Contour lines are lines drawn on a map with equal elevation points, so elevation would be constant if you followed the contour line physically. The elevation and terrain shape of the contour lines shows. It is useful because they show the form of the land surface on the map–its topography.

What does a topographic profile show?

Topographic profiles are used to understand what a topographic map is telling you in a specific area (or, you can think about it like it is giving you a "side view" of the landscape along a specific line on the map). Interestingly, many geologists are quite visual and like to have visual representations of data.

What is the gentle slope?

The space between contour lines reflects the slope. When contour lines are closer to each other, then slope is called steep slope. When contour lines are further apart from each other, then slope is gentle slope. ... A gentle slope or curve is not steep or severe.

What do form lines indicate?

: a line drawn on a map to depict surface configuration in a generalized manner and usually without indicating elevations — compare contour line.

What is layer shading on a map?

Layer tinting uses different colours (or shades) to represent different heights. It is a mapping convention for darker colours to signify greater height. When using layer tinting, green is often used for low land, yellow for higher land and brown for the highest land.

What is tinting in topography?

Hypsometric tinting or Layer tinting is a method of showing relief on maps and charts by coloring in different shades those parts that lie between different levels. Sometimes referred to as elevation tint, altitude tint, and layer tint, color gradients, and gradient tints.

What are Index contour lines for?

A contour line shown on a map in a distinctive manner for ease of identification, being printed more heavily than other contour lines and generally labeled with a value (such as figure of elevation) along its course.

What are intermediate contour lines?

A contour line drawn between index contours. Depending on the contour interval there are three or four intermediate contours between the index contours. See also index contour line. Dictionary of Military and Associated Terms.

Does Google Earth show contour lines?

Open Google Earth. Click File | Open, select the KML file, and click Open. The contour map is loaded and displayed over the aerial photo. The color and transparency properties are retained.

What is the space between contour lines called?

The elevation difference between two adjacent contour lines is called the contour interval (CI). Usually the contour interval is noted on the map legend. In most topographic maps every 5th contour line is drawn in bold print or wider than other contours.
