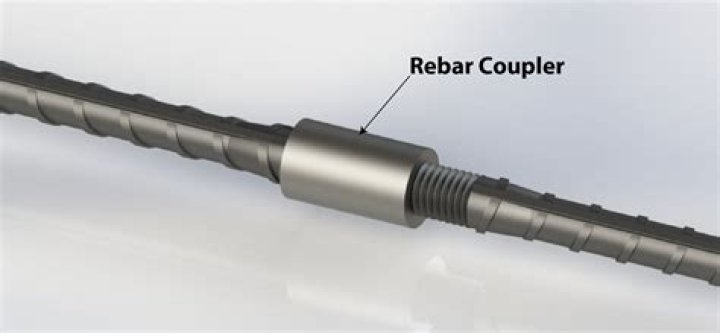

According to ASTM A1034; a coupler is a threaded device for joining reinforcing bars for the purpose of providing transfer of either axial compression or axial tension or both from one bar to the other.

What is a coupling in construction?

The coupling beams reduce flexural moments in the coupled shear wall piers, provide an energy dissipation mechanism along the entire building height, and improve shear wall system efficiency.

Why do we use coupler?

A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. The primary purpose of couplings is to join two pieces of rotating equipment while permitting some degree of misalignment or end movement or both.

Why coupler is use in reinforcement?

Lapped joints are not always an appropriate means of connecting rebar. The use of Ancon Reinforcing Bar Couplers can simplify the design and construction of reinforced concrete and reduce the amount of reinforcement required. Ancon Couplers are sold via approved distributors. ...

What is coupling in steel?

Steel pipe coupling is a very short length of tube used in piping or plumbing, it usually refers to the socket weld or a threaded on one or both ends that allows two tubes connected together. Socket Weld Full Coupling. Threaded Full Coupling.

What Are Rebar Couplers? | MOMENT

Why couplers are used in construction?

Rebar couplers are used in reinforced concrete structures to replace normal rebar lap joints. The couplers are also suitable for use in reinforced concrete columns and walls. ... In construction joints, rebar couplers can be used to replace all pieces of rebar going through the formwork.

What is coupler in civil engineering?

Mechanical Couplers are the cylindrical element that connects the two rotating edges of reinforcement bars, also known as an alternative to lapping rebars. The grade of the coupler should be equivalent to the reinforcement bars which ensures the maximum transmission of the load stresses from one bar to another.

What means coupler?

1 : one that couples. 2 : a contrivance on a keyboard instrument by which keyboards or keys are connected to play together.

Which is better coupling or lapping or welding?

The ends of steel bars to be joined are provided with threads, and a coupler is used to join rebars end-to-end, which transfers the loads on the rebar across the connection. They are more efficient than lap splices because they do not depend on the concrete for load transfer.

When would you use a mechanical coupler?

Mechanical couplers are widely used in the present construction industry to joint two reinforcement bars together. The lapping of reinforcement is very difficult and time-consuming. Further, some costs also can be saved with mechanical couplers.

What is the difference between Type 1 and Type 2 coupler?

A Type 1 mechanical splice is capable of transferring a stress of 1.25 fy, while a Type 2 mechanical splice is capable of transferring a stress of 1.25 fy and the specified tensile strength of the bar, but a lap splice is only able to transfer a stress equal to fy of the steel.
