The horn relay is the electronic component that is a part of the vehicle's horn circuit. It serves as the relay that controls power to the vehicle's horn. Most relays are located in the fuse box underneath the hood.

Where can I find the horn relay?

Typically, the horn relay is found in the engine compartment junction or fuse box.

How do I know if my horn relay is bad?

1. Non-functioning horn. One of the first symptoms of an issue with the horn relay is a non-functioning horn. ...
2. Clicking sound from the relay. Another symptom of a potential issue with the horn relay is a clicking sound from underneath the hood. ...
3. Burning smell from underneath the hood.

Which relay is for the horn?

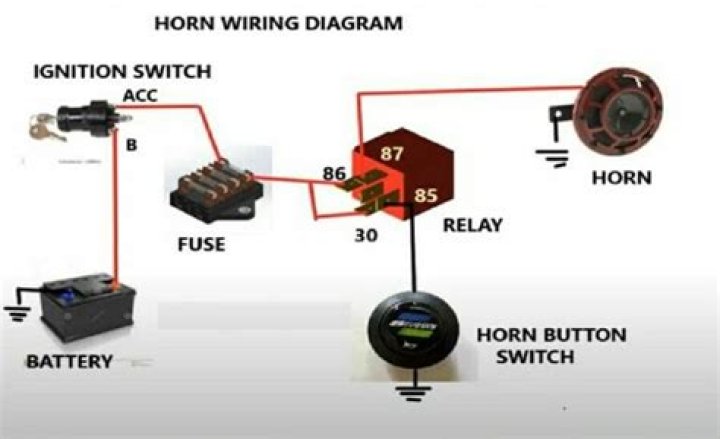

The horn relay switches a large current to the horns at a signal from the low-current horn button in the steering wheel. It's a simple, inexpensive single-pole single-throw (SPST) relay, packaged in a small metal or plastic box with five spade-lug connectors.

How do you check a horn relay on a car?

Test the relay switch - Remove the relay and set your digital multimeter to the Ohms setting. Touch one meter lead to the switch relay socket and the other to the battery negative post. Have another person push the horn button to test the reading.

Fixing a non clockspring horn problem

Does car horn need relay?

You need a horn relay. It serves as the relay that controls power to the vehicles horn. Usually their will be one wire coming into the horn button and to close the circuit the switch grounds that wire. ... When current is applied to the relay, the horns power circuit is completed, allowing the horn to function and ring.

What can cause a car horn not to work?

But an inoperative car horn can also be caused by a bad horn switch in your steering wheel, a broken “clock spring” under the steering wheel, a bum horn relay, a broken wire, or a corroded ground. Here's how to check the most likely suspects: Start by checking the fuse. Refer to the owner's manual for its location.

How do you change a horn relay?

1. Find the section in the owner's manual that lists the location and function of each fuse and relay. ...
2. Open the fuse box cover. ...
3. Remove the horn relay. ...
4. Insert the new horn relay into the socket.

Where is the horn relay on a 2010 Jeep Patriot?

The 2010 Jeep Patriot houses a horn relay inside the main fuse box, located in the engine bay. To find the relay, You will need to first open the hood of Your suv. Next, You will need to locate the long, black boxAt the front of the engine compartment.

Can bad horn relay drain battery?

yes your horn relay is energized and draining your batt.

Can AutoZone test a relay?

A relay can be checked with a jump cable, a voltimeter, an ohmimeter or a test light. If the terminals are accessible and the relay is not controlled by a computer, the fastest method will be a jump cable and a test light. If the voltage is not present, the relay coil is defective.

What happens if I remove the horn relay?

If you remove the horn fuse and don't replace it, that circuit will be “broken,” so the horn won't work. If you removed the fuse for the radio, the radio wouldn't work.

How do you remove a horn relay?

How do I disconnect my car horn? The easiest way to do this is to pull the horn fuse, usually located in the fuse panel under the steering wheel. Look for a cover on the underside of the dashboard; when you remove it, you should see a grid of small, colorful plastic rectangles with numbers printed on them.

How do you wire a 12V relay in a circuit?

1. Connect wires to the coil of your relay. ...
2. Connect the "common" (C) terminal of the relay to a battery supply. ...
3. Connect the power input lead from the equipment you want to operate with the relay to the "normally open" (NO) terminal of the relay.

Is there a fuse for a car horn?

Horn works using electric power and, just like any other electrics-dependant part, it has a fuse. If the fuse is blown, you'll simply need to replace it.

Is it illegal for your car horn not to work?

In New South Wales there's no exact legislation prohibiting driving without a horn but there are offences for driving a vehicle that doesn't comply to standards of roadworthiness. ... Likewise, the Northern Territory's traffic and penalties information page is limited and doesn't refer to driving without a horn.

Why would you use a relay?

Relays control one electrical circuit by opening and closing contacts in another circuit. ... Relays are generally used to switch smaller currents in a control circuit and do not usually control power consuming devices except for small motors and Solenoids that draw low amps.

What happens if you don't use a relay?

This can cause premature failure of the switch. Another required use for relays is when you're installing an electric cooling fan. If you wire direct, without a relay, all of the additional stress from the fan will be placed on the switch, leading again to early failure.

What is the purpose of a relay in a car?

Relays are switches controlled by electrical power, like another switch, computer or control module. The purpose of an automotive relay is to automate this power to switch electrical circuits on and off at particular times.
