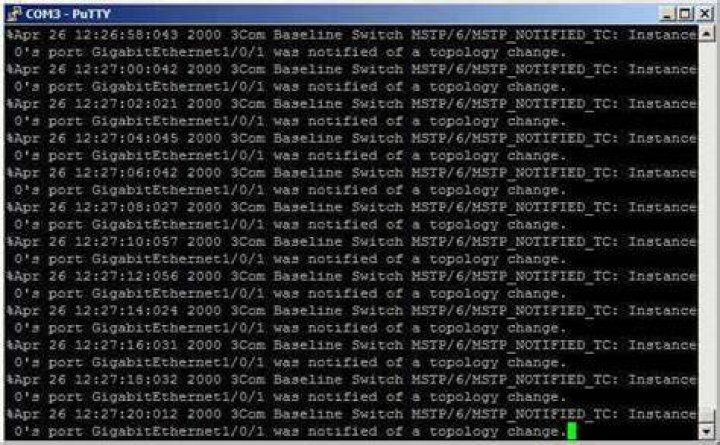

Was notified a topology change?
Rachel Hickman When a non-root switch detects a topology change it will generate a topology change notification and send it on its root port towards the root bridge. When a switch receives the topology change notification it will send a (TCA) topology change acknowledgement on its designated port towards the downstream switch.
What is a topology change?
A topology change occurs when a switch either moves a port into the Forwarding state or moves a port from the Forwarding or Learning states into the Blocking state. In other words, a port on an active switch comes up or goes down.
Which event causes STP to detect a topology change?
The network topology can happen in a network due to different reasons like a link failure, a Switch (Bridge) failure, or a port transitioning to forwarding state. The Root Switch (Bridge) bridge broadcasts the topology change information into the whole network.
What is Spanning Tree topology change?
When a change in the topology occurs on a spanning tree protocol activated network, it has an affect on all switches in that topology. The switch that detects a link status change on one of its links will send out a topology change notification (TCN) BPDU towards the root bridge out of its root port.
How does the topology change notification process differ between 802.1 D and RSTP?
When an 802.1D bridge detects a topology change, the bridge first notifies the root bridge using a reliable mechanism. ... RSTP bridge flushes the MAC addresses associated with all these non-edge designated ports.
Topology Change with STP
30 related questions foundWhat is difference between RSTP and MSTP?
RSTP provides rapid convergence of the spanning tree. MSTP, which uses RSTP to provide rapid convergence, enables VLANs to be grouped into a spanning-tree instance, provides for multiple forwarding paths for data traffic, and enables load balancing.
What message is sent when the STP downstream device notifies the upstream device of topology change?
When the status of the port at point T changes, a downstream device continuously sends TCN BPDUs to the upstream device.
How do you change network topology?
In the left navigation of the Microsoft Teams admin center, go to Locations > Network topology, and then click the Network sites tab. Select the site by clicking to the left of the site name, and then click Edit. Make the changes that you want, and then click Save.
How do I check my Spanning Tree loop?
Action Plan:- Implement Spanning Tree PortFast and BPDUGuard on all edge ports.
- Verify that currently the proper switch is STP root for all VLANs. ...
- Enable loop guard on all distribution/access layer switches*
- Enable BPDU guard on all distribution/access layer switches*
- Enable UDLD on all fiber uplinks*
What is STP and how it works?
STP uses the Spanning-Tree Algorithm (SPA) to create a topology database of the network. To prevent loops, SPA places some interfaces in forwarding state and other interfaces in blocking state. ... all switches in a network elect a root switch. All working interfaces on the root switch are placed in forwarding state.
What is backup port in RSTP?
• Backup Port. Root Port is the port on a switch that is the closest way (Lowest Cost) to the Root Bridge. Designated Port is the port, that can send the best BPDU on its segment. Alternate Port is a blocking port that receives better BPDU from another switch.
What is difference between STP and RSTP?
The main difference between Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) and Spanning Tree Protocol (STP IEEE 802.1D) is that Rapid Spanning Tree Protocol (RSTP IEEE 802.1W) assumes the three Spanning Tree Protocol (STP) ports states Listening, Blocking, and Disabled are same (these states do not forward Ethernet ...
What is BPDU packet?
Acronym for bridge protocol data unit. BPDUs are data messages that are exchanged across the switches within an extended LAN that uses a spanning tree protocol topology. BPDU packets contain information on ports, addresses, priorities and costs and ensure that the data ends up where it was intended to go.
What is spanning tree topology?
The Spanning Tree Protocol (STP) is a network protocol that builds a loop-free logical topology for Ethernet networks. The basic function of STP is to prevent bridge loops and the broadcast radiation that results from them. ... RSTP was designed to be backwards-compatible with standard STP.
What triggers spanning tree?
Spanning tree in a nutshell
Spanning tree recalculations are performed automatically when the network changes but cause a temporary network outage. Newer protocols, such as TRILL, prevent loops while keeping links that would be blocked by STP in service.
Which routing protocol is better in handling topology change?
OSPF has the following advantages over RIP: Network topology changes converge faster.
What do you mean by broadcasting in networking?
In computer networking, broadcasting refers to transmitting a packet that will be received by every device on the network. ... Broadcasting may be performed as all scatter in which each sender performs its own scatter in which the messages are distinct for each receiver, or all broadcast in which they are the same.
What is the access point in a wireless LAN?
An access point is a device that creates a wireless local area network, or WLAN, usually in an office or large building. An access point connects to a wired router, switch, or hub via an Ethernet cable, and projects a Wi-Fi signal to a designated area.
What is max age timer in STP?
Default max age timer is 20 seconds. You can tune the Spanning Tree Protocol (STP) max age timer to any value between 6 and 40 sec.
What is TCN STP?
When the switches receive this message they will reduce the aging time of the MAC address table from 300 seconds to 15 seconds (this is the forward delay timer). This message is called the TCN (Topology Change Notification).
What is protocol 802.1 D used for?
802.1D is the IEEE Media Access Control (MAC) Bridges standard which includes the Spanning Tree Protocol (STP) and Bridging. It details linking to other 802 projects, including the Ethernet and Wi-Fi standards.
What do you understand by routing?
Routing is the process of selecting a path for traffic in a network or between or across multiple networks. ... The routing process usually directs forwarding on the basis of routing tables. Routing tables maintain a record of the routes to various network destinations.
On which of the following operation of an image the topology of the region changes?
8. On which of the following operation of an image, the topology of the region changes? Explanation: If a topological descriptor is defined by the number of holes in an image, then the number of holes will not vary if the image is stretched or rotated.
What are the end network devices?
Some examples of end devices are: computers (workstations, laptops, file servers, and web servers) nsetwork printers. VoIP phones.
