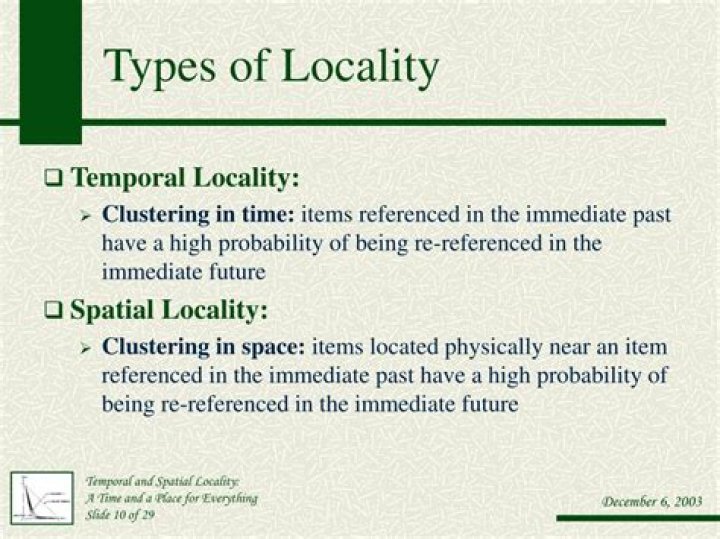

There are two basic types of reference locality – temporal and spatial locality. Temporal locality refers to the reuse of specific data and/or resources within a relatively small time duration. Spatial locality (also termed data locality) refers to the use of data elements within relatively close storage locations.

What is an example of temporal locality?

The principle of Temporal locality states that two instructions reference the same location within a relatively short timeframe. For example, in the code given, a[i] is referenced frequently, with instructions like a[i] = a[i] * 2 and a[i] = a[i] * 3 being executed very close together.

What are the three forms of locality?

There are three kinds of locality of reference: temporal, spatial, and network.

What are the 3 locality principles?

It is a package of three ideas: (1) computational processes pass through a sequence of locality sets and reference only within them, (2) the locality sets can be inferred by applying a distance function to a program's address trace observed during a backward window, and (3) memory management is optimal when it ...

What is temporal locality caching?

Temporal locality means current data or instruction that is being fetched may be needed soon. So we should store that data or instruction in the cache memory so that we can avoid again searching in main memory for the same data.

L-3.11: Locality of Reference in Cache Memory | Spatial Vs Temporal Locality | Computer Organisation

What is temporal vs spatial locality MIPS?

1. In Spatial Locality, nearby instructions to recently executed instruction are likely to be executed soon. In Temporal Locality, a recently executed instruction is likely to be executed again very soon. ... It refers to the tendency of execution where memory location that have been used recently have a access.

What is the distinction between spatial locality and temporal locality in cache?

Spatial locality refers to the tendency of execution to involve a number of memory locations that are clustered. Temporal locality refers to the tendency for a processor to access memory locations that have been used recently.

Which one memory is fastest?

• Fastest memory is cache memory.
• Registers are temporary memory units that store data and are located in the processor, instead of in RAM, so data can be accessed and stored faster.

What are the strategies for exploiting spatial locality and temporal locality?

Spatial locality is generally exploited by using larger cache blocks and by incorporating prefetching mechanisms (fetching items of anticipated use) into the cache control logic. Temporal locality is exploited by keeping recently used instruction and data values in cache memory and by exploiting a cache hierarchy.

Is cache a memory?

cache memory, also called cache, supplementary memory system that temporarily stores frequently used instructions and data for quicker processing by the central processing unit (CPU) of a computer. The cache augments, and is an extension of, a computer's main memory.

Can a program exhibit both spatial and temporal locality?

Nearly every program exhibits spatial locality, because instructions are usually executed in sequence—if we execute an instruction at memory location i, then we will probably also execute the next instruction, at memory location i+1. Code fragments such as loops exhibit both temporal and spatial locality.

Which of the following data exhibits spatial locality?

• statement: Which of the following types of data exhibits spatial locality ?
• Answer: C. Array.
• Explanation: In computer language, an array is for of particular data arranged in a column. It displays information of different frequency in a very coherent manner.

What is locality with example?

locality Add to list Share. Use the noun locality when you need an official-sounding way to say "area" or "region." For example, you might say, "I am so pleased to finally have a doughnut shop in my locality." You're most likely to come across the word locality in a news story or business report.

What is the principle of spatial locality?

The principle of spatial locality says that if a program accesses one memory address, there is a good chance that it will also access other nearby addresses.

How does a data cache take advantage of spatial locality?

To exploit spatial locality, a cache uses larger blocks to hold several consecutive words. The advantage of a block size greater than one is that when a miss occurs and the word is fetched into the cache, the adjacent words in the block are also fetched.

What is hit time in cache?

Two other terms used in cache performance measurement are the hit time—the time it takes to access a memory location in the cache and the miss penalty—the time it takes to load a cache line from main memory into cache.

What are the three fields in a set associative cache address and how are they used to access a location in cache?

In set associative cache mapping, a memory reference is divided into three fields: tag, set, and word, as shown below. As with direct-mapped cache, the word field chooses the word within the cache block, and the tag field uniquely identifies the memory address.

What is the definition of temporal locality quizlet?

Temporal Locality refers to the reuse of specific data,and /or resources with in a short time duration.

How is cache memory organized?

With the associative mapping of the contents of cache memory, the address of a word in the main memory is divided into two parts: the tag and the byte index (offset). ... The cache is divided into lines. In each line one block can be written together with its tag and usually some control bits.

Which is the smallest memory?

A byte is the smallest unit of memory used in today's computing. Bytes consist of eight bits, and a byte is used to encode a single number, letter, or symbol.

Which type of memory is ROM?

Read-only memory (ROM) is a type of non-volatile memory used in computers and other electronic devices. Data stored in ROM cannot be electronically modified after the manufacture of the memory device.

What is cache speed?

Cache memory operates between 10 to 100 times faster than RAM, requiring only a few nanoseconds to respond to a CPU request. The name of the actual hardware that is used for cache memory is high-speed static random access memory (SRAM).

What is cache locality in array?

See my answer about spatial and temporal locality. In particular, arrays are contiguous memory blocks, so large chunks of them will be loaded into the cache upon first access. This makes it comparatively quick to access future elements of the array.

What is branch locality?

Branch locality is another interesting result from execution. It's what happens when code jumps going to one of very few targets (and does this regularly). This isn't necessarily closeby (spatial), depending on the size of the code and amount of outcomes.

What is coma in computer architecture?

Cache only memory architecture (COMA) is a computer memory organization for use in multiprocessors in which the local memories (typically DRAM) at each node are used as cache. This is in contrast to using the local memories as actual main memory, as in NUMA organizations.
