Explanation: Hub/switch is the central device in star topology.

Is a central unit in star topology?

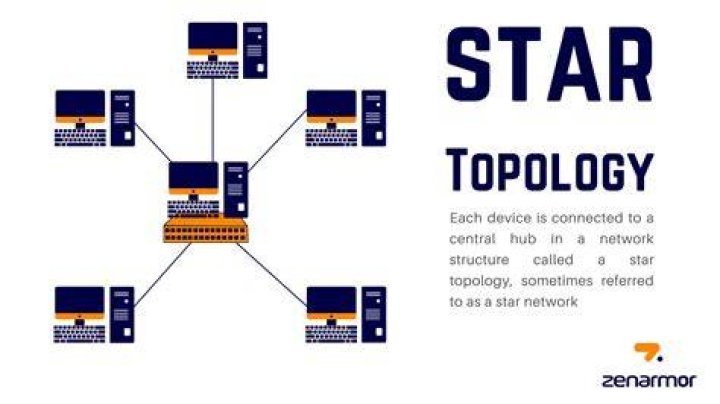

Star topology is a network topology where each individual piece of a network is attached to a central node (often called a hub or switch).

Which device is used in star topology?

A star topology is the most commonly used network configuration. In this type of topology, nodes are connected to a central device like a switch or a hub with the help of coaxial cable, optical fiber, or twisted pair cable.

What is central device in star topology?

Explanation: Hub/switch is the central device in star topology.

What is the central computer in star topology?

A central computer surrounded by one or more satellite computers is called a star network. A star network consists of one central hub which acts as a conduit to transmit messages. In the star topology, every host is connected to a central hub.

Computer Networking Tutorial - 14 - Star Topology

What is router computer?

A router is a networking device that forwards data packets between computer networks. Routers perform the traffic directing functions on the Internet. ... Then, using information in its routing table or routing policy, it directs the packet to the next network on its journey.

How is star topologies are connected?

A star topology is designed with each node (like workstations, printers, laptops, servers etc.) connected directly to a central device called as a network switch. Each workstation has a cable that goes from its network interface card (NIC) to a network switch.

What is a logical topology?

A logical topology is a concept in networking that defines the architecture of the communication mechanism for all nodes in a network. Using network equipment such as routers and switches, the logical topology of a network can be dynamically maintained and reconfigured.

Which network topology requires a central controller or hub?

Which network topology requires a central controller or hub? Explanation: In star topology, no computer is connected to another computer directly but all the computers are connected to a central hub.

Which type of network topology requires a central controller?

Explanation : Star topology and tree topology requires central controller or hub.

Is Ethernet a logical topology?

The Ethernet operates on a logical bus topology. All the components on the network share the same medium and are detected based on the MAC address. Due to the shared component, the multiple components transfer at the time of data collisions.

Why use a router in a star topology?

A star topology WAN with point-to-point transmission facilities is much more scalable than a peer-to-peer or ring network. ... The star topology rectifies the scalability problems of peer-to-peer networks by using a router to interconnect, or concentrate, all the other networked routers.

What equipment will usually be found at the Centre of a star network?

The center of the star uses a multiport connecting device that can be either a hub or a switch. Although both hubs and switches can connect the network—and can have several features in common—only switches are normally used today.

Is switch a network device?

Switches are networking devices operating at layer 2 or a data link layer of the OSI model. They connect devices in a network and use packet switching to send, receive or forward data packets or data frames over the network.

How do routers forward packets?

Similar to switches, routers forward packets from source to destination. However, routers forward packets based on the global routing header (GRH). ... Each router forwards packets to the next router using subnet information and routing tables. Routing is performed until the packet reaches the destination subnet.

Is firewall a networking device?

A firewall is a network security device that monitors incoming and outgoing network traffic and decides whether to allow or block specific traffic based on a defined set of security rules. ... A firewall can be hardware, software, or both.

How computers are Organised on a star network?

In a star topology all nodes indirectly connect to each other through one or more switches . The switch acts as a central point through which all communications are passed. Large networks using a star topology are usually controlled by one or more servers . Hence, the client-server model usually uses a star topology.

Can I use router in star topology?

In a star network, every host is connected to a central hub. In its simplest form, one central hub acts as a conduit to transmit messages. ... The star configuration is commonly used with twisted pair cable and optical fiber cable. However, it can also be used with coaxial cable as in, for example, a video router.

Is a router a star topology?

The star topology has a central connection point, which is normally a device such as a hub, switch, or router. Each host on a network has a cable segment that attaches the host directly to the central connection point. The advantage of a star topology is that it is easy to troubleshoot.

Which of the following topologies connects each device to a neighboring device?

Which of the following topologies connects each device to a neighboring device? Answer: In ring topologies, each device is connected to a neighboring device, until a ring is formed.

What are the types of logical topology?

Logical Topologies. The two logical topologies are broadcast (also known as bus) and sequential (also known as ring). In a broadcast topology, all devices on the network receive every message transmitted.

Is bus topology physical or logical?

Types of Physical Topology

Some commonly used physical topologies are the bus, ring and star.

What is logical network?

A logical network is a virtual representation of a network that appears to the user as an entirely separate and self-contained network even though it might physically be only a portion of a larger network or a local area network.
