Equipotential lines at different potentials can never cross either. This is because they are, by definition, a line of constant potential. The equipotential at a given point in space can only have a single value. ... Note: It is possible for two lines representing the same potential to cross.

Is it possible for two equipotential lines to cross two electric field lines explain?

It is not possible for two different equipotential lines or two electric force lines to cross because equipotential lines has fixed values by definition. If they were to cross then it would create two different values which is meaningless.

Why do two equipotential surfaces never intersect?

they cannot intersect each other because two different equipotential surface have different electric potential, so if they intersect then the point of intersection will have two different potentials at the same point which is not possible.

Can equipotential surfaces touch or intersect?

Two equipotential surfaces can't intersect. The direction of the electric field at any point on an equipotential surface is perpendicular to the surface at that point.

Why can't two electric field lines cross?

Answer: Electric field does not direct in two directions that is why electric field lines never cross over each other. ... When two lines intersect each other, tangents are drawn at that point indicating two directions of electric field lines, which is impossible therefore electric field lines cannot cross over each other.

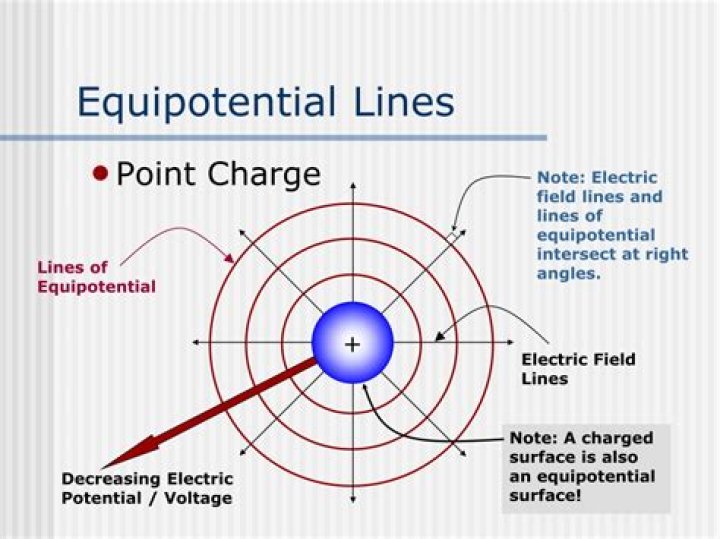

Equipotential Lines

Is it possible for two different electric field lines to cross explain hint remember field lines have a direction?

Electric field lines cannot cross. If they did, they would be telling you that the force on a charge at that location would point in two different directions, which does not make any sense at all. ... Note: It is possible for two lines representing the same potential to cross.

Why the two field lines can never intersect each other give reason?

The magnetic field lines never intersect each other because if two or more lines intersect each other than it means that at that point of intersection, the magnetic field has two directions at the same point. This is not possible for a magnetic field to point in more than one direction at the same point.

Can two equi potential surfaces intersect each other give reasons?

They cannot intersect each other because two different equipotential surfaces have different electric potential. ... It means the electric field intensity is perpendicular to the surface.

Can two equi potential surfaces intersect explain?

No, it is not possible for two equipotential surfaces to intersect. This is because if two equipotential surfaces intersect, then there will be two values of potential at the point of intersection, which is not possible.

Are equipotential lines always closed?

Equipotential lines in the cross-sectional plane are closed loops, which are not necessarily circles, since at each point, the net potential is the sum of the potentials from each charge.

What is the relationship between the equipotential and the field line?

An equipotential surface is a three-dimensional version of equipotential lines. Equipotential lines are always perpendicular to electric field lines. The process by which a conductor can be fixed at zero volts by connecting it to the earth with a good conductor is called grounding.

Can equipotential surfaces be imaginary spheres?

They can be imaginary spheres.

What is the relation between electric field and potential gradient?

The relationship between potential and field (E) is a differential: electric field is the gradient of potential (V) in the x direction. This can be represented as: Ex=−dVdx E x = − dV dx . Thus, as the test charge is moved in the x direction, the rate of the its change in potential is the value of the electric field.

Do electric field lines exist?

Electric field lines never intersect. In an uniform electric field, the field lines are straight, parallel and uniformly spaced. ... If the electric field in a given region of space is zero, electric field lines do not exist. The tangent to a line at any point gives the direction of the electric field at the point.

Can electric field lines form closed loops?

Since electric field lines originate and terminate on charges of opposite polarity, electric field lines can never form closed loops as to form a closed loop, the electric field lines must originate and end at the same charge.

Do any field lines cross one another Why or why not?

Electric field lines never cross each other. Electric field lines are most dense around objects with the greatest amount of charge. At locations where electric field lines meet the surface of an object, the lines are perpendicular to the surface.

Do two equipotential pages intersect each other write the reason for your answer?

No they cannot intersect each other because two different equipotential surface have different electric potential, so if they intersect then the point of intersection will have two different potentials at the same point which is not possible.

Can two Equipqential surfaces intersect each other two ways QP Metricq are located when moving a point p7 0 0 to Q p <UNK> <UNK>Q 3?

(i) No, if two equipotential surfaces intersect then at the point of intersection two tangents can be drawn and there will be two directions of electric field intensity which is not possible. (ii) Since both the points are in the equatorial line of the dipole and V = 0 at every point on it, work done will be zero.

Can two equipotential surfaces Interefcting two ways QAND QICE locations at 0 0 A metrica respectively how much work is done in moving a test charge from point P 7 0?

Answer: (i) No, two equipotential surfaces cannot intersect each other because two normals can be drawn at intersecting point on two surfaces which give two directions of E at the same point which is impossible.

Why do the equipotential surfaces get closer to each other near the point charges?

The relationship between the electric field and potential due to charge is given as E = dV/R. Thus if dV is constant and R is inversely proportional to E. Therefore, all equipotential surfaces are closer at a higher value of E. For any charge E is higher near load thus equipotential surfaces are closer to the charge.

What is angle between electric field and equipotential surface?

The angle between the electric field and the equipotential surface is always 90⁰. The equipotential surface is always perpendicular to the electric field.

Why electric field is always perpendicular to equipotential surface?

An equipotential surface is circular in the two-dimensional. Since the electric field lines are directed radially away from the charge, hence they are opposite to the equipotential lines. Therefore, the electric field is perpendicular to the equipotential surface.

Can magnetic field lines cross each other?

Magnetic field lines can never cross, meaning that the field is unique at any point in space. Magnetic field lines are continuous, forming closed loops without beginning or end.

Can electric field lines intersect in free space?

Question: Can electric field lines intersect in free space? Answer a. Yes, but only at the centroid of an equilateral triangle with like charges at each corner.

Can two magnetic lines of force intersect justify your answer?

No, two magnetic lines of force cannot intersect each other. If two field lines intersect, there would be two directions of magnetic field at that point which is not possible.
