For a flow which does not change with time, the streamline, streakline, and pathline are the same line. A flow which does not change with time is called a steady-state flow .

What are streamlines and Pathlines?

Streamlines are a family of curves that are instantaneously tangent to the velocity vector of the flow. These show the direction in which a massless fluid element will travel at any point in time. ... Pathlines are the trajectories that individual fluid particles follow.

Are streamlines parallel to flow lines?

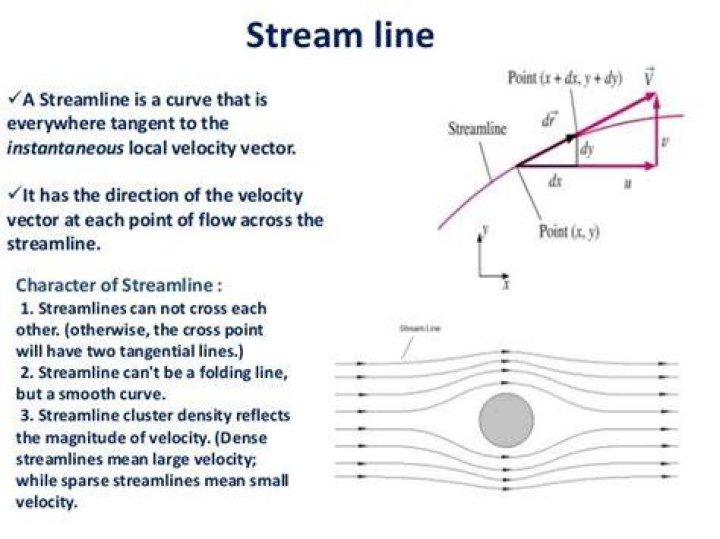

In physics, a handy way of visualizing the flow of a fluid is through streamlines. You draw a fluid's streamline so that a tangent to the streamline at any point is parallel to the fluid's velocity at that point. In other words, a streamline follows the fluid flow. A streamline shows the directions of flow.

Is streamline and steady flow same?

streamline, In fluid mechanics, the path of imaginary particles suspended in the fluid and carried along with it. In steady flow, the fluid is in motion but the streamlines are fixed.

Under what conditions streamline Pathline and streakline remains same?

In unsteady flow, streamlines, pathlines and streaklines are all different, but in steady flow, streamlines, pathlines and streaklines are identical.

What is the difference between Pathline, Streakline and Streamline

What are streamlines physics?

A streamline is a path traced out by a massless particle as it moves with the flow. ... Since the streamline is traced out by a moving particle, at every point along the path the velocity is tangent to the path.

What is the difference between streamlines and Streaklines?

A streamline is a line which smoothly connects velocity vectors at an instance in time. In other words, an image of the flow characterized by streamlines is like a snapshot of the flow at one moment in time. A streakline is a curved line formed by a string of fluid particles which have passed through a certain point.

What is the part represented by the streamlines?

What is the path represented by the streamlines? Explanation: The streamlines represent a path along which the water flows through the subsoil. Every particle entering the upstream will trace its own path and represents its own streamline. 3.

What is the definition of a streamline what do streamlines indicate?

A streamline is a curve that is everywhere tangent to the instantaneous local velocity vector. The streamlines can indicate the direction of flow of the fluid instantaneously in a flow field.

Can streamlines intersect?

Two streamlines cannot cross each other, because there will be two velocities at the point of intersection, which is not possible.

Is the streamlines of the particles in a flow are parallel to each other what type of flow can it be?

In they are all parallel to each other than we can assume the flow is uniform throughout with no turbulence occurring. The flow would then be assumed laminar.

What is not associated with the streamlines in the following?

9. Which of the following is not related to the streamlines? Explanation: Mass is not related to the streamlines because the velocity does not have normal component, it flows in a straight direction and does not have any normal components either and hence, the mass cannot cross the streamline.

Under what condition do streamlines of a flow coincide with the streak lines?

In steady flow (when the velocity vector-field does not change with time), the streamlines, pathlines, and streaklines coincide. This is because when a particle on a streamline reaches a point, a0, further on that streamline the equations governing the flow will send it in a certain direction →x.

What is a flow net .define and explain velocity potential and stream function?

Velocity potential function and stream function are two scalar functions that help study whether the given fluid flow is rotational or irrotational. Both the functions provide a specific Laplace equation. The fluid flow can be rotational or irrotational flow based on whether it satisfies the Laplace equation or not.

What is steady flow of fluid?

A steady flow is the one in which the quantity of liquid flowing per second through any section, is constant. ... The exact term use for this is mean steady flow. Steady flow may be uniform or non-uniform. Uniform flow. A truly uniform flow is one in which the velocity is same at a given instant at every point in the fluid ...

Why are streamlines important?

Streamlines are VERY important to swimming, as EVERY single swimmer needs to be proficient at it. This is because streamlines are universal and are required in ALL races–no matter the distances the swimmers swim, strokes they perform, their age, or ability level.

What are streamlines in aerodynamics?

streamlining, in aerodynamics, the contouring of an object, such as an aircraft body, to reduce its drag, or resistance to motion through a stream of air.

How many types of fluid flow are Characterised in the streamlines?

Laminar and Turbulent Flow. Compressible and Incompressible Flow. Rotational and Irrotational Flow. One, Two and Three -dimensional Flow.

Do streamlines and timelines coincide in steady flow?

Timeline is generated by drawing a line through adjacent particles in flow at any instant of time. ... 3.10 shows a typical timeline. In a steady flow the streamline, pathline and streakline all coincide. In an unsteady flow they can be different.

Which of the following is correct in steady flow path lines and streamlines are identical?

Explanation: A streamline is defined as an imaginary line within the flow such that the tangent at any point on it indicates the velocity at that point. In a steady flow, the velocity of the particles is constant with time. Hence, the streamlines remain the same even after sometime.

What is the equation of Pathline?

Find the equations of the pathlines for a fluid flow with velocity field u = ay i + btj, where a, b are positive constants. definition of the derivative of a vector function.

What are the differences between laminar and turbulent flow?

Laminar Flow: the flow of a fluid when each particle of the fluid follows a smooth path, paths which never interfere with one another. One result of laminar flow is that the velocity of the fluid is constant at any point in the fluid. Turbulent Flow: irregular flow that is characterized by tiny whirlpool regions.

What is steady flow and unsteady flow?

A flow that is not a function of time is called steady flow. Steady-state flow refers to the condition where the fluid properties at a point in the system do not change over time. Time dependent flow is known as unsteady (also called transient). ... This roughly means that all statistical properties are constant in time.
