In n type semiconductor?
Daniel Avila An n-type semiconductor is an Intrinsic semiconductor - Wikipedia
Is n-type semiconductor positive or negative?
Donor impurities donate negatively charged electrons to the lattice, so a semiconductor that has been doped with a donor is called an n-type semiconductor; "n" stands for negative.
Which of the following is n-type semiconductor?
Ge(Group 14) doped with As(Group 15) is an n-type semiconductor.
Is n-type semiconductor is electrically neutral?
n-type and p-type semiconductors it is known that from pure or intrinsic germanium or silicon in what type of crystal the semiconductors will be formed will depend on the number of valence electrons of impurities.
What are acceptors and donors?
Donor / Acceptor Defined
A donor is a high energy orbital with one or more electrons. An acceptor is a low energy orbital with one or more vacancies: A donor is an atom or group of atoms whose highest filled atomic orbital or molecular orbital is higher in energy than that of a reference orbital.
Semiconductors, Insulators & Conductors, Basic Introduction, N type vs P type Semiconductor
43 related questions foundWhat are the majority carriers in N-type semiconductors?
In n-type semiconductors, electrons are the majority carriers and holes are the minority carriers.
How is n-type semiconductor neutral?
An n-type material by itself has mainly negative charge carriers (electrons) which are able to move freely, but it is still neutral because the fixed donor atoms, having donated electrons, are positive.
What type of charge is on n-type semiconductor?
It is a common mistake to think of the semiconductor as negatively charged since electrons are the majority charge carriers in n-type semiconductor however we must remember that the net charge of the semiconductor will still be zero (hence neutral) since the impurity ion's positive charge will balance the charge of the ...
Why there is more electrons in an n-type semiconductor?

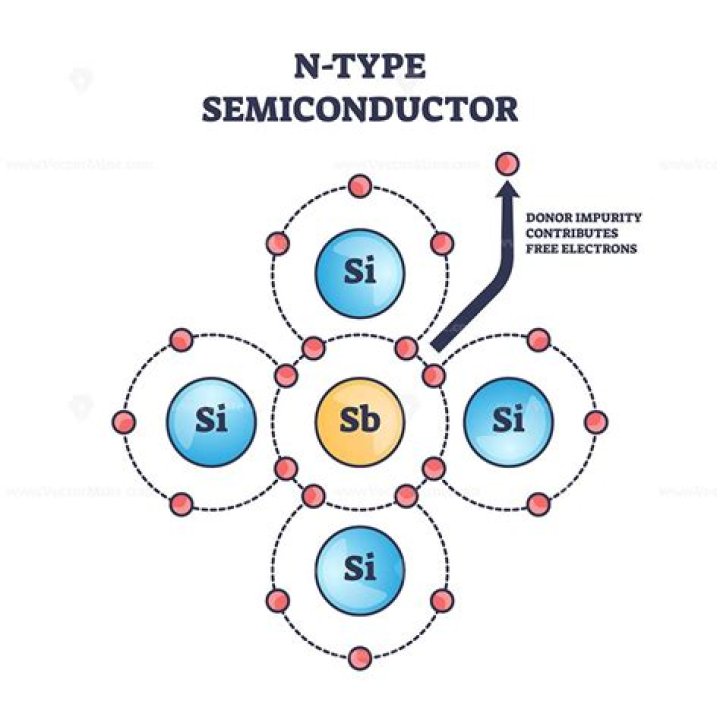

An n-type semiconductor results from implanting dopant atoms that have more electrons in their outer (bonding) shell than silicon. The resulting semiconductor crystal contains excess, or free, electrons that are available for conducting current.
Which one of the following materials would be in an n-type semiconductor?
Arsenic doped Silicon, Phosphorus doped Silicon, Arsenic doped Germanium, Phosphorus doped Germanium etc. are the examples of n-type semiconductor.
What type of semiconductor is formed when silicon is doped with AS?
As it is given in the question that silicon is doped with arsenic, which is a group 14 element therefore, it will be a n-type extrinsic semiconductor. Therefore, the correct answer is doping of arsenic to silicon gives us an extrinsic semiconductor of n-type.
What are valence bond and conduction band?
The conduction band is the band of electron orbitals that electrons can jump up into from the valence band when excited. ... This movement of electrons creates an electric current. The valence band is simply the outermost electron orbital of an atom of any specific material that electrons actually occupy.
Is n-type semiconductor positively charged?
Where, n represents negative charge. But even though n-type semiconductor has a valence electron, it is an electron of a neutral atom. So n-type semiconductor is in an electrically neutral state. Therefore, from the above explanation the correct option is (C) Electrically neutral.
How does n-type semiconductor differ from P-type semiconductor?
In a N-type semiconductor, the majority of charge carriers are free electrons whereas the holes are in minority. In a P-type semiconductor, the majority of charge carriers are holes whereas the free electrons are in minority. ... The donor energy level is close to the conduction band in the case of N-type semiconductors.
What is P-type semiconductor and n-type semiconductor?
In a p-type semiconductor, the majority carriers are holes, and the minority carriers are electrons. In the n-type semiconductor, electrons are majority carriers, and holes are minority carriers. ... In an n-type semiconductor, the donor energy level is close to the conduction band and away from the valence band.
Why is the electric charge on an n-type of semiconductor is zero?
In an N-type semiconductor, current conduction is due to holes. Whereas in a P-type semiconductor,current conduction is by excess free electrons. ... The electrons and holes generated in pairs due to thermal energy are also balanced by their equal and opposite charge. Thus, the net charge will be zero.
What type of charge is on n-type semiconductor and on p type semiconductor give reason?
When a pentavalent impurity atom is added to a pure semiconductor to make it n-type semiconductor, it donates one free electron to the crystal, leaving a positive charge on the donor atom, the donated electron remains in the crystal in free state.
Why is N-type preferred over p-type material?
Since the minority carriers are electrons and holes in p-type and n-type semiconductors, respectively, the order of increase in electron density in p-type semiconductor and hole density in n-type one are more sensible than increase in hole density in p-type semiconductor and electron density in n-type one, respectively ...
How is the sample of an n-type semiconductor electrically neutral though it has excess negative charge carriers?
Because in a sample of n-type semiconductor, the number of conduction electrons is high as compared to the number of holes but the semiconductor material is electrically neutral.
What is bandgap energy in a semiconductor?
The band gap of a semiconductor is the minimum energy required to excite an electron that is stuck in its bound state into a free state where it can participate in conduction. The band structure of a semiconductor gives the energy of the electrons on the y-axis and is called a "band diagram".
What are the majority and minority carriers in n-type semiconductor?
semiconductor devices
On the n side the electrons are the majority carriers, while the holes are the minority carriers.
What are majority carriers?
noun. the entity responsible for carrying the greater part of the current in a semiconductor. In n-type semiconductors the majority carriers are electrons; in p-type semiconductors they are positively charged holesCompare minority carrier.
What type of charge carriers are there in ap type semiconductor?
The charge carriers in p-type semiconductor are both holes (majority carriers) and electrons (minority carriers).
What are donors and acceptors in semiconductors?
In physics of semiconductors, an electron donor is a dopant atom (impurity) that, when added to a semiconductor, can form a n-type semiconductor. An electron acceptor is a dopant atom (impurity) that, when added to a semiconductor, can form a p-type semiconductor.
