The Numerical Aperture (NA) of a fiber is defined as the sine of the largest angle an incident ray can have for total internal reflectance in the core. Rays launched outside the angle specified by a fiber's NA will excite radiation modes of the fiber. A higher core index, with respect to the cladding, means larger NA.

What is the significance of numerical aperture in optical fibers?

The numerical aperture is a measure of the acceptance angle of the fiber. It is very important because it determines how strongly a fiber guides light, and so how resistant it is to bend-induced losses.

What is numerical aperture explain?

Numerical aperture is a measure of the highly diffracted light rays captured by the objective. ... Higher numerical apertures can be obtained by increasing the imaging medium refractive index (n) between the specimen and the objective front lens.

How does numerical aperture affect the dispersion of light in optical Fibre communication?

The effects of dispersion become more severe the longer the fiber, because different modes tend to spread out and disperse further. ... Fiber with a lower numerical aperture (NA) has a smaller acceptance cone, preventing light from entering at shallow angles.

What is the concept of fiber optic?

Fiber optics is the technology used to transmit information as pulses of light through strands of fiber made of glass or plastic over long distances. ... It is this technology that provides homes and businesses with fiber-optic internet, phone and TV services.

Acceptance Angle and Numerical Aperture NA (basics, definition & derivation) in optical communicatio

What are optical Fibres Class 12?

Optical fibres are fabricated such that light reflected at one side of inner surface strikes the other at an angle larger than the critical angle. Even if the fibre is bent, light can easily travel along its length. Thus, an optical fibre can be used to act as an optical pipe. They are made up of plastic.

What is Fiber Optic made of?

The optical fibers used in fiber optics are sometimes made of plastic but most often are made of glass. A typical glass optical fiber has a diameter of 125 micrometers (μm) or 0.125 mm (0.005 inches). Plastic fibers are made of polymethylmethacrylate, polystyrene, or polycarbonate.

What is numerical aperture in engineering physics?

Numerical aperture represents the light-gathering capacity of an optical fibre. Light-gathering capacity is proportional to the acceptance angle, θ ₀. So, numerical aperture can be represented by the sine of acceptance angle of the fibre i.e., sin θ ₀.

What is numerical aperture in microbiology?

The numerical aperture of a microscope objective is the measure of its ability to gather light and to resolve fine specimen detail while working at a fixed object (or specimen) distance.

What do you understand by numerical aperture and acceptance angle of an optical fibre also derive expressions for these?

Derivation for Numerical Aperture of Optical Fiber

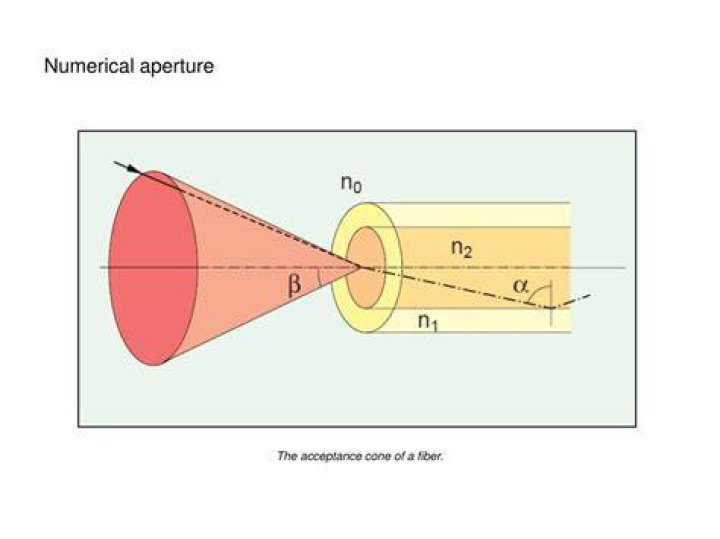

Consider a light ray XA, that incident inside the optical fiber. ... So, the ray XA is launched from denser medium to rarer medium by making an angle α with the fiber axis. This angle α is known as the acceptance angle of the fiber.

Which among the following is described by the concept of numerical aperture in an optical Fibre 1 point?

Numerical aperture is commonly used in microscopy to describe the acceptance cone of an objective (and hence its light-gathering ability and resolution), and in fiber optics, in which it describes the range of angles within which light that is incident on the fiber will be transmitted along it.

What is numerical aperture and its significance?

Numerical aperture (abbreviated as 'NA') is an important consideration when trying to distinguish detail in a specimen viewed down the microscope. NA is a number without units and is related to the angles of light which are collected by a lens.

Where is the numerical aperture found?

Numerical Aperture (N.A.): This is a number that expresses the ability of a lens to resolve fine detail in an object being observed. It is derived by a mathematical formula (n sine u) and is related to the angular aperture of the lens and the index of refraction of the medium found between the lens and the specimen.

What is numerical aperture derive its expression?

NA= √( Ƞ12- Ƞ22)

The numerical aperture of the optical fiber formula is derived above. So this is the formula for NA, where 'ƞ1'is the refractive index for core & 'ƞ2' is the refractive index for the cladding.

What is the numerical aperture of the fiber if the angle of acceptance is?

d) 0.27. Answer: d. Explanation: The numerical aperture of a fiber is related to the angle of acceptance as follows: NA = sin Ѳa.

How do you find the numerical aperture of an optical Fibre?

Numerical Aperture is defined as the Sine of half of the angle of fibre's light acceptance cone. i.e. NA= Sin θ_a where θ_a, is called acceptance cone angle.

What aperture means?

Aperture refers to the opening of a lens's diaphragm through which light passes. ... Lower f/stops give more exposure because they represent the larger apertures, while the higher f/stops give less exposure because they represent smaller apertures.

How do you find the numerical aperture?

Numerical aperture (NA) is defined as being equal to n sin θ, where n is the refractive index of the medium between the objective lens and the object (n≅1 for air) and θ is half the angular aperture (or acceptance angle of image-forming rays) of the objective lens (Jenkins and White 1957).

What is the nature of numerical aperture of a step index fiber the across the core?

Note 2: The numerical aperture (NA) is a point function across the endface of the core and depends on the refractive index at the point. In a step-index optical fiber, the NA does not vary across the endface of the core because the refractive index is constant from point to point.

How do you find the numerical aperture of a lens?

Numerical aperture (NA) is defined as being equal to n sin θ, where n is the refractive index of the medium between the objective lens and the object (n≅1 for air) and θ is half the angular aperture (or acceptance angle of image-forming rays) of the objective lens (Jenkins and White 1957).

How numerical aperture is related to the quality of microscope?

Numerical aperture determines the resolving power of an objective, but the total resolution of a microscope system is also dependent upon the numerical aperture of the substage condenser. The higher the numerical aperture of the total system, the better the resolution.

How are optical fiber created?

To make an optical fiber, layers of silicon dioxide are first deposited on the inside surface of a hollow substrate rod. This is done using Modified Chemical Vapor Deposition, in which a gaseous stream of pure oxygen combined with various chemical vapors is applied to the rod.

How does an optical fiber work?

How Do Fiber Optics Work? Light travels down a fiber optic cable by bouncing off the walls of the cable repeatedly. Each light particle (photon) bounces down the pipe with continued internal mirror-like reflection. The light beam travels down the core of the cable.

Where is optical Fibre used?

They are widely used in lighting, both in the interior and exterior of vehicles. Because of its ability to conserve space and provide superior lighting, fibre optics are used in more vehicles every day. Also, fibre optic cables can transmit signals between different parts of the vehicle at lightning speed.

What is optical Fibre Class 10?

Optical fiber is a glass or plastic core surrounded by a cladding made up of a similar material but with a lower refractive index. Also as you can see here, its diameter is much small compared to its length.
