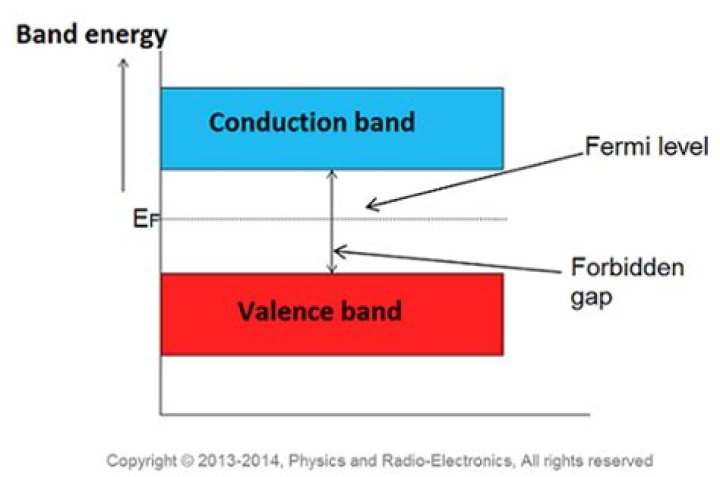

In an intrinsic semiconductor the fermi level is?
Daniel Lopez In intrinsic semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band. Hence, the probability of occupation of energy levels in conduction band and valence band are equal. Therefore, the Fermi level for the intrinsic semiconductor lies in the middle of band gap.
Where is the Fermi level in an intrinsic semiconductor?
Position of the Fermi level lies in the middle of the conduction band and valence band because the number of holes and electrons are almost equal in numbers in intrinsic semiconductors .
What is the Fermi energy of an intrinsic semiconductor?
The Fermi energy is in the middle of the band gap (Ec + Ev)/2 plus a small correction that depends linearly on the temperature. The correction term is small at room temperature since Eg ~ 1 eV while kBT ~ 0.025 eV.
What is the Fermi level in semiconductors?
What is Fermi Level? The highest energy level that an electron can occupy at the absolute zero temperature is known as the Fermi Level. The Fermi level lies between the valence band and conduction band because at absolute zero temperature the electrons are all in the lowest energy state.
Where is the Fermi level of intrinsic semiconductor at room temperature?
Thus the Fermi level for the intrinsic semiconductor lies in the middle of the forbidden band. At $0K$, the intrinsic semiconductor acts as a perfect insulator.
Fermi level of intrinsic and extrinsic semiconductors
15 related questions foundWhat is intrinsic level in semiconductor?
An intrinsic (pure) semiconductor, also called an undoped semiconductor or i-type semiconductor, is a pure semiconductor without any significant dopant species present. The number of charge carriers is therefore determined by the properties of the material itself instead of the amount of impurities.
Where is the Fermi level?
Fermi level is a kind of measure of equilibrium electronic energy of a solid material. It is thought that Fermi level is located just below the CB bottom and above the VB top for n-type and p-type semiconducting materials (13), respectively.
What is Fermi level in semiconductor Class 12?
The highest energy level in the conduction band filled up with electrons at absolute is called Fermi level and the energy corresponding to the Fermi level is called Fermi energy. In other words, it can also be defined as the probability by which electrons occupy energy levels in the valence band and conduction band.
Why is Fermi level important in semiconductor?
The Fermi level determines the probability of electron occupancy at different energy levels. The closer the Fermi level is to the conduction band energy, the easier it will be for electrons in the valence band to transition into the conduction band.
What are extrinsic and intrinsic semiconductors?
Intrinsic semiconductors are composed of only one kind of material. Extrinsic semiconductors are made of intrinsic semiconductors that have had other substances added to them to alter their properties (they have been doped with another element).
What is intrinsic Fermi level?
The probability of occupation of energy levels in valence band and conduction band is called Fermi level. In intrinsic or pure semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band. ...
Do the Fermi energy level changes in a semiconductor?
2. In an intrinsic semiconductor (with no doping at all), the Fermi level is lying exactly at the middle of the energy bandgap at T=0 Kelvin. ... If not then the Fermi level will shift away from midgap position with increasing temperature and will move towards the band with the smaller effective mass.
What is Fermi energy level in physics?
Fermi energy is often defined as the highest occupied energy level of a material at absolute zero temperature. In other words, all electrons in a body occupy energy states at or below that body's Fermi energy at 0K. The fermi energy is the difference in energy, mostly kinetic.
What is the value of Fermi level?
It is important in determining the electrical and thermal properties of solids. The value of the Fermi level at absolute zero (−273.15 °C) is called the Fermi energy and is a constant for each solid. The Fermi level changes as the solid is warmed and as electrons are added to or withdrawn from the solid.
Why Fermi level is close to conduction band in n-type semiconductor?
The addition of pentavalent impurity creates large number of free electrons in the conduction band. At room temperature, the number of electrons in the conduction band is greater than the number of holes in the valence band. ... Therefore, the Fermi level in the n-type semiconductor lies close to the conduction band.
What is Fermi energy level and location of semiconductor?
Fermi energy level is defined highest energy level below which all energy levels are filled at ok. But in the case of a semiconductor there is no allowed energy level between the valence band and the Fermi energy level.
What is meant by Fermi energy and Fermi level?
The Fermi energy is only defined at absolute zero, while the Fermi level is defined for any temperature. ... The Fermi energy is an energy difference (usually corresponding to a kinetic energy), whereas the Fermi level is a total energy level including kinetic energy and potential energy.
How will you convert an intrinsic semiconductor into an N type semiconductor?
In order to convert into n-type semiconductor, the concentration of electrons must be greater than number of holes, electrons are introduced by doping the intrinsic semiconductor with elements like Phosphorous Antimony Arsenic which have 5 electrons in their last orbit and can give one electron thereby increasing theAn ...
What is intrinsic semiconductor Class 12?
A pure semiconductor, free from impurities is called intrinsic semiconductor. The electrical conductivity of pure semiconductor is called intrinsic conductivity.
How are intrinsic semiconductors formed?
An intrinsic semiconductor is an undoped semiconductor. This means that holes in the valence band are vacancies created by electrons that have been thermally excited to the conduction band, as opposed to doped semiconductors where holes or electrons are supplied by a “foreign” atom acting as an impurity.
How is Fermi energy level calculated?
Fermi energy: Ef = ħ² * kf² / (2 * m) Fermi velocity: vf = ħ * kf / m. Fermi temperature: Tf = Ef / k.
What will happen in the position of Fermi level of an intrinsic semiconductor with increase in temperature?
As the temperature increases, the Fermi level shifts towards the conduction band. In p-type semiconductor, trivalent impurity is added which creates hole in valance band and is ready to accept an electron. This creates large no. of holes in the valance band.
What is the intrinsic energy level?
In intrinsic semiconductor, the number of holes in valence band is equal to the number of electrons in the conduction band. Hence, the probability of occupation of energy levels in conduction band and valence band are equal. Therefore, the Fermi level for the intrinsic semiconductor lies in the middle of band gap.
What is ap type semiconductor?
A p-type semiconductor is an extrinsic type of semiconductor. When a trivalent impurity (like Boron, Aluminum etc.) is added to an intrinsic or pure semiconductor (silicon or germanium), it is said to be a p-type semiconductor. ... A p-type semiconductor has more holes than electrons.
What is n-type semiconductor material?
An n-type semiconductor is an intrinsic semiconductor doped with phosphorus (P), arsenic (As), or antimony (Sb) as an impurity. Silicon of Group IV has four valence electrons and phosphorus of Group V has five valence electrons.
