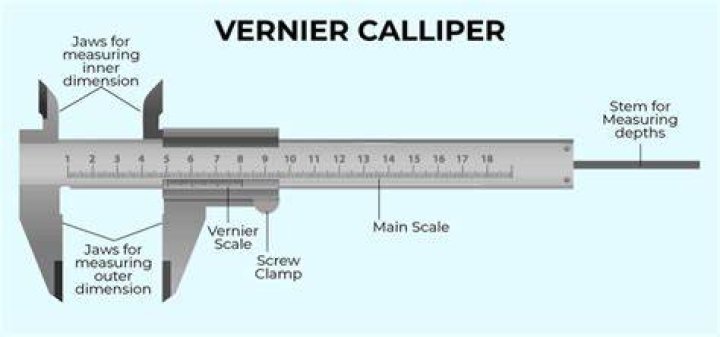

In a vernier callipers, ten smallest divisions of the vernier scale are equal to nine smallest division on the main scale.

What is the smallest division of a vernier calliper?

The least count of the Vernier caliper is 0.1 mm. That is, 0.1 mm is the smallest scale reading that can be made without estimation.

What does the smallest division on the main scale of the vernier caliper correspond to?

The smallest division on main scale of a vernier callipers is 1mm and 10 vernier divisions coincide with 9 scale divisions. While measuring the length of a line, the zero mark of the vernier scale lies between 10.

What is the minimum least count of vernier caliper?

Least count = Smallest reading on main scaleNumber of divisions on Vernier scale=1mm10 = This is the least count for Vernier Callipers. Hence, the least count for Vernier Callipers is 0.1mm.

What would be the least count of a vernier caliper having 19 divisions on the main scale and 20 divisions on the vernier scale?

A vernier callipers has 20 divisions on the vernier scale which coincide with 19 divisions on the main scale. The least count of the instrument is 0.1 mm.

In a vernier callipers, ten smallest divisions of the vernier scale are equal to nine smallest divis

What is the least count of the vernier calliper having 50 divisions in vernier scale?

The vernier consists of 50 divisions, meaning that 0.1 cm is divided into 50 parts and the final least count is 0.1 cm/50 = 0.002 cm = 1/50 mm.

What is the least count of a vernier calipers of principle 20 VSD 18 MSD and 1 MSD 1 mm?

Problem from IIT JEE 2013

The least count of the given Vernier Calipers is LC = 1 MSD - 1 VSD = 0.001 cm.

Why the least count of vernier caliper is 0.01 mm explain?

When the two jaws of the instrument touch each other the 5th division of the Vernier scale coincides with a main scale division and the zero of the Vernier scale lies to the left of the zero of the main scale.

Is 0.02 least count of vernier caliper?

Each of the 50 graduations on the upper scale indicates 0.02 mm. (Given in this case but you should know how to get it). 0.02 is LEAST Count of the Vernier caliper.

How do you find least count?

How to Calculate Least Count ? Mathematically a measurement instrument Least Count is calculated by dividing main scale reading by the total number of divisions on the main scale. And if the instrument also has a Secondary scale.

What does one division on the barrel of the micrometer correspond to?

The micrometer sleeve is divided into forty equal parts. Each division is indicated by a vertical line that represents one-fortieth of an inch or . 025". Each fourth line is marked by a longer line and a number which designates one hundred-thousandths.

How many divisions does the main scale of micrometer caliper has?

Some of the micrometer calipers have half-millimeter marks etched below the linear scale. The circular scale has 50 divisions, and one complete revolution moves the thimble 0.5 mm along the the linear scale. Thus, one division corresponds to (0.5 mm : 50) = 0.01 mm.

What is the smallest measurement that a micrometer caliper can measure?

A micrometer caliper can be used to measure lengths directly to 0.01 mm, and by estimating tenths of a circular scale division, it can be used to estimate lengths to 0.001-0.002 mm.

How do you find the smallest division?

The smallest scale division is a tenth of a centimeter or 1 mm. Therefore, the uncertainty Δx = smallest increment/2 = 1mm/2 = 0.5mm = 0.05cm. Note that a measurement made with this ruler must be stated to a tenth of a centimeter since the uncertainty is stated to a tenth of a centimeter.

What is the smallest division on the micrometer?

The smallest division represents 0.5mm and marked with a shorter line and no numbers positioned on the lower side. The biggest division represents 1mm and marked with a long line and numbers positioned on the upper side. Thimble Scale. It acts as the second scale and has 50 equivalent divisions.

What is the smallest division on Main scale?

The smallest division on the main scale of a vernier calliers is 1 mm, and 10 vernier divisions coincide with 9 main scale divisions. While measuring the diameter of a sphere, the zero mark of the vernier scale lies between 2.0 and 2.1 cm and the fifth vernier scale coincide with a scale division.

What is LC of vernier caliper?

The LC of vernier calliper is the difference between one smallest main scale reading and one smallest vernier scale reading of 0.1 mm 0r 0.01 cm. ... The Least Count measuring instrument is determined mathematically by calculating the main scale reading by the cumulative number of divisions on the main scale.

What is the reading of vernier caliper with the least count of 0.1 mm?

Vernier calipers with positive zero error. The least count of given Vernier calipers is. LC = MSD -VSD =1 - ( 9/ 10 ) = 0.1 mm. The main scale reading is MSRo = 0 mm and the Vernier scale reading is VSRo = 3.

How can the least count of a vernier caliper be decreased?

Answer: If we use a metre scale for measurement of length, it may have graduations at 1 mm division scale spacing or interval. A vernier scale on caliper may have a least count of 0.01 mm while a micrometer may have a least count of 0.001 mm. ..... Instruments of higher precision can reduce the least count error .

What is the smallest reading a vernier caliper can have if it has 20 divisions in the Vernier scale?

A Vernier caliper has 20 divisions on the Vernier scale, which coincide with 19 on the main scale. The least count of the instrument is 0.1mm. .

What is least count of spectrometer?

the smallest distance, which can be measured by this screw is 0.5mm/50=0.01mm or 1mm/100=0.01mm; and this is called the least count (L.C.) of the instrument.

What is the ratio of the least count of an ordinary vernier caliper to that of an ordinary screw gauge?

The least counts of a vernier calipers and a screw gauge are in the ratio of 5: 1 . The main scales of both the instruments are marked in mm. The zero error on the vernier calipers is +0.15 mm where as that on screw gauge is -0.06 mm.

What is the principle of 50 Division Vernier?

The vernier or vernier has fifty rooms, so it divides the lower division of the main scale of fifty (0.050 in / 50 = 0.001 in) [| i | i | i | i | i | ] – Figure 2.

What is the smallest measurement that can accurately be made with a metric vernier caliper?

In the case of the caliper shown in Fig. 1, the smallest measurement on the main scale is 0.1 cm or 1 mm. The vernier scale can read to 0.05 mm. So using both scales, the width can be read to the nearest 0.005 cm (or 0.05 mm).

What is the smallest division of a screw gauge?

Least count of screw gauge

A screw gauge of 100 divisions will move the cap scale along the main scale by 1/100 of mm-0.01 mm. This is the minimum value up to which a screw gauge can measure and is known as its least count.
