How voltmeter and ammeter are connected in a circuit?

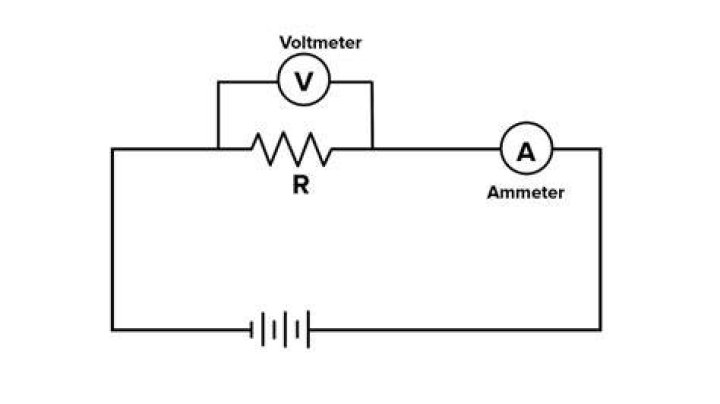

William Rodriguez Key Points An ammeter is a measuring device used to measure the electric current in a circuit. A voltmeter is connected in parallel with a device to measure its voltage, while an ammeter is connected in series with a device to measure its current.
How is a voltmeter connected in a circuit?
A voltmeter is a device that measures the potential difference across two points in the circuit. It is connected in parallel to the two points in the circuit. It must be connected in parallel and not to be connected in series because we want to measure the potential difference across two difference points.
How do we connect voltmeter and ammeter in an electric circuit class 10?
Class 10 Question
Voltmeter is always connected in parallel with the the circuit. Ammeter is always connected in series with the circuit. If the positions of these two are interchanged, the ammeter will be destroyed by high amount of current given that it is of low resistance.
How do we connect ammeter and voltmeter in a circuit and why?
An ammeter will be always connected in series as it has a low resistance and the Voltmeter will be always connected in parallel because it will be having a high resistance. On interchanging their position, An ammeter is usually connected in parallel.
How ammeter is connected in the circuit?
An ammeter should be connected in series with the circuit for measuring current. ... Then the reading in the ammeter will give us the current flowing through the circuit. Note: An ammeter is a device used to measure current. In order to measure the current an ammeter should always be connected in series.
Voltmeters and Ammeters | Circuits | Physics | Khan Academy
42 related questions foundWhy voltmeter is connected in parallel and ammeter in series?
Ammeter is always connected in series because it has low internal resistance. The current to be measured in the circuit should not be practically affected by the Ammeter, hence the need to have a low internal resistance. Voltmeter is always connected in parallel because it has high internal resistance.
How does voltmeter work?
Voltmeter works on the principle of Ohm's law, which states that the voltage across a resistance is directly proportional to the current passing through it. In order to implement it in real time, we form the construction of a galvanometer, such that a coil is suspended in a magnetic field.
Why ammeter is not connected in parallel in a circuit?
Advertisement. An ammeter is a device which measures the amount of current flowing in a circuit. ... If it will be connected in parallel, it would draw most of the current and would get damaged. Hence, it is connected in series.
How is a voltmeter connected in an electric circuit give reason for your answer?
Answer: A voltmeter is a device that measures the potential difference across two points in the circuit. It is connected in parallel to the two points in the circuit. It must be connected in parallel and not to be connected in series because we want to measure the potential difference across two difference points.
How do we connect voltmeter and ammeter in an electric circuit what is likely to Happenif the positions of these instruments are interchanged?
Ammeter is always connected in series because it has low resistance and Voltmeter is always connected in parallel. because it has high resistance.
How is an ammeter connected to a circuit Brainly?
An ammeter is connected in series with the circuit to be measured. The ideal ammeter will have zero resistance so as not to disturb the circuit. We will find the shunt as part of the ammeter circuit. The "shunt" is nothing more than a resistor with very low resistance.
Why the voltmeter is connected to the armature directly?
We can't measune it directly because a voltmeter across the armature reads the applied voltage. ... If an armature is not rotating the current through it is equal to the voltage across it divided by its resistance. I = E/R However, as the armature begins rotating, the current drops.
What happens when ammeter is connected in parallel?
When ammeter is connected in parallel to the circuit, net resistance of the circuit decreases. Hence more current is drawn from the battery, which damages the ammeter.
What is use ammeter?
An ammeter (abbreviation of Ampere meter) is a measuring instrument used to measure the current in a circuit. Electric currents are measured in Amperes (A), hence the name.
How does an ammeter work?
Ammeters work to measure electrical current by measuring the current through a set of coils with a very low resistance and inductive reactance. ... If the ammeter were connected in parallel, the path may become short-circuited such that all the current will flow through the ammeter instead of the circuit.
How do you hook up an ammeter?
Complete the following steps to place an Ammeter:- Click the Place Indicator button in the Components toolbar. ...
- Select Ammeter from the Family list.
- Select the desired Ammeter from the Component list. ...
- Click OK to close the dialog box.
- Click in the desired location on the workspace to place the Ammeter icon.
How do you use a voltmeter as an ammeter?
The first step to convert a voltmeter to an ammeter is to determine the resistance Rm of the voltmeter. Make the circuit connections as shown in Fig 2(a). 2. Keeping R = 0, adjust the supply voltage E so that the voltmeter shows large readings Vm.
What happens when voltmeter is connected in series in a circuit?
IF VOLTMETER OR VOLTAGE IS CONNECTED IN SERIES THEN DUE TO HIGH RESISTANCE NO CURRENT WILL FLOW THROUGH CIRCUIT SO NO VOLTAGE DROP OCCUR.
When an ammeter is connected in series the resistance of circuit is?
To measure the current of a circuit, the ammeter is connected in series in the circuit so that the current to be measured must pass through it. Since, the resistance of ammeter is low, so its inclusion in series in the circuit does not change the resistance and hence the main current in the circuit.
When measuring voltage in a circuit should you place the voltmeter in series or parallel with the resistors?
Voltmeters. Resistors in parallel have the same voltage across them. If you want to measure the voltage across a circuit element, such as a resistor, you place the voltmeter in parallel with the resistor. The voltmeter is shown in a circuit diagram as a V in a circle, and it acts as another resistor.
What is the function of voltmeter in an electric circuit?
The function of a voltmeter is used for measuring the potential difference between two points in an electric circuit. This instrument is connected in parallel and has a high resistance.
How is voltmeter connected in a circuit to measure potential difference?
To measure the potential difference between two points, the voltmeter must be connected in parallel across the given points. Voltmeter always connected parallel across the ends in the circuit to measure the potential difference between two points.
Why does electrical circuit always connected in parallel?
In order to measure a device's voltage, a voltmeter is connected in parallel to a device. This setup is important as objects in parallel usually tend to experience the same potential difference. It is connected in parallel with the circuit mainly because the same voltage drop occurs across it.
