To measure the length of a hip roof you will need to hook your measuring tape up to the eave at the ridge rafter, run it up all the way up the ridge rafter, over the length of the entire ridge, and then back down the opposite ridge rafter down to the opposite eave.

How do you measure shingles for a hip roof?

1. Measure the length and width of each plane on the roof (including dormers) then multiply length times width.
2. Add the square footage of each of the planes together.

How do you calculate rafter length for a hip roof?

Divide the span of the roof by two to obtain the run of the roof. The span of the roof is 25 feet, so the run of the roof is 25 / 2 = 12.5 feet. Divide the run of the roof by the cosine of the angle of the roof to obtain the length of a common rafter.

What size should a hip rafter be?

The rule of thumb is that hips, purlins and ridge boards are at least 1.5 times the depth of the rafter.

How do you measure a roof for shingles?

To estimate how many shingles you'll need, first estimate the total square footage of your roof's surface. To do this, measure the length and width of each plane on the roof, including dormers. Then, multiply length x width to get the square footage of each plane.

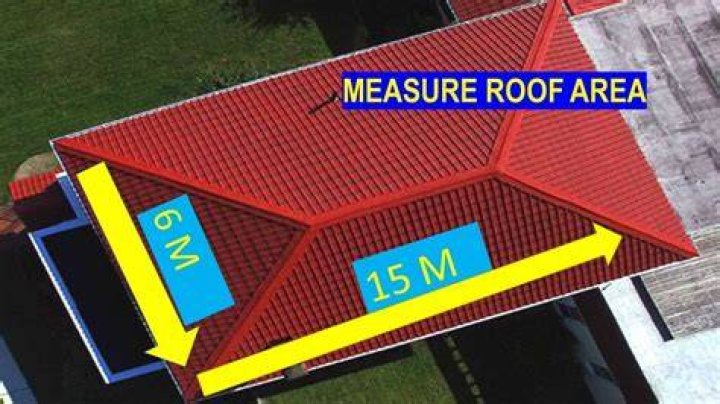

How to work out surface area of a hip roof

What is a hip roof vs gable roof?

The difference between a hip roof and a gable roof will be the overall design and functionality of each. Hipped roofs have a style where all roof sides slope downward over the walls of your home. Gable roofs have two sides or peaks that slope downward towards your home.

Whats a hip roof look like?

A hip roof has no vertical ends. It is sloped on all sides, with the slopes meeting in a peak (if the structure is square). Or with the ends sloped inward toward a ridge formed by the adjacent sides (if the structure is rectangular). The “hip” refers to the external angle formed where two adjacent sides meet.

Does a hip roof have a gable?

The main difference between a hip and gable roof are the slopes on its sides. On a hipped roof, all sides slope downward to the home's walls. Gable roofs only have two triangle-shaped slopes that extend from the bottom of the roof's eaves to the peak of its ridge.

What is hip roof type?

hip roof, also called hipped roof, roof that slopes upward from all sides of a structure, having no vertical ends. The hip is the external angle at which adjacent sloping sides of a roof meet. The degree of such an angle is referred to as the hip bevel.

How do you calculate roofing?

Multiply your house length by your house width to get the area. (For example, 40 feet x 30 feet = 1,200 square feet.) Next, multiply the area by your roof's pitch. (1,200 x 1.05 = 1,260 square feet.)

How do you calculate roof frames?

For example, if the slope is 4 in 12, and the run is 12 feet, the ridge beam height (M) will be 4 feet. The finished ridge beam height (Z) above the top of the wall will be (M) plus the Y Height. The formulas are: M = (R * X) / 12.

What is the distance between rafters on a roof?

But they do tend to space rafters in one of several industry-standard increments, typically either 12, 16 or 24 inches apart. These spacing intervals are measured "on center," meaning that the measurement is taken from the center of one rafter's horizontal surface to the center of the next rafter.

How do you figure out the pitch of a shed roof?

Remember that pitch is calculated as the height – or rise – of a roof pitch over 12 inches of horizontal run. Therefore, if your roof rises 4 inches over the course of 12 inches of horizontal run, then your roof pitch is 4:12.

What is the standard size of a roofing sheet?

Blue MS Metal Roofing Sheet, Dimensions: 8 X 4 Feet, Thickness of Sheet: 2 to 3 mm.

How do you calculate the length of a roof rafter?

If you are calculating rafter length from the center of the ridge beam (as shown below), you will need to subtract half of the thickness of the ridge beam from the top end of the rafter. For example, if the ridge beam is 1.5 inches thick, subtract 3/4 of an inch from the overall rafter length.

How do I calculate sq footage?

Multiply the length by the width and you'll have the square feet. Here's a basic formula you can follow: Length (in feet) x width (in feet) = area in sq. ft.

Is a hip roof better?

The construction strength of the hip roof can support the weight of snow on top and the pitch of a gable roof can shed rain and snow easily. However, if you are building or buying a home in a high wind region or where storms such as hurricanes are present, a hip roof is a better option.

Are hip roof stronger than gable?

A hip roof slopes inward on all sides. It is stronger than a gable roof in hurricane resistance because it doesn't have a triangular gable end wall that often fails under the pressure of high winds. Also, hip roofs are self-bracing.

Where are hip roofs most common geographically?

Hip roofs are most common in North America and are considered to be the second most popular roof styles after gable roofs. While a gable roof consists of two sloping sides that join together at the top of gable ends, a hip roof has four sloping sides with no gable ends.

What angle is a hip roof?

Parts of a Hip Roof

Hip rafters are nailed at a 45 degree angle to the ridge board down to the four outside corners of the building. Also used to nail the top of the jack rafters. Jack rafters are nailed to the hip and slope down to the exterior walls. They have the same seat and tail cut as a common.
