When testing, the aim is to apply a hydraulic force to the winch drum equivalent to the 60% of the SDMBL on the first layer of the rope (for split drum winches) and to ensure that winch brake slips (or renders) at that point. Then, the tightened brake screw must be marked at the point it slips.

What is brake holding capacity of mooring winches?

Winch brakes are normally designed to hold 80% of the line MBL and are set in service to hold 60% of the mooring line MBL. ... Brake holding capacity may be expressed either in tones or as a percentage of the line MBL.

What is a winch brake?

The brake is the heart of the mooring winch, since the brake secures the drum and consequently the mooring line at the shipboard end. ... This principle ensures for easy brake application, but has disadvantages such as sensivity to friction changes and sensivity to reeling direction.

What is brake rendering?

Winch brake rendering can be considered as a 'slipping' of the brake band at the points of contact between the brake band lining and the drum. As a result of rendering the brake band can be expected to wear and is a part that should be replaced whenever its condition dictates.

How do mooring winches work?

A mooring winch assembly consists of a winch drum which has cable or rope wound around it. The winch drum and warp end is driven with the help of a motor drive. ... This is done by fastening one end of the ropes or wires to the bollards on the shore and the other end around the warp end of the winch.

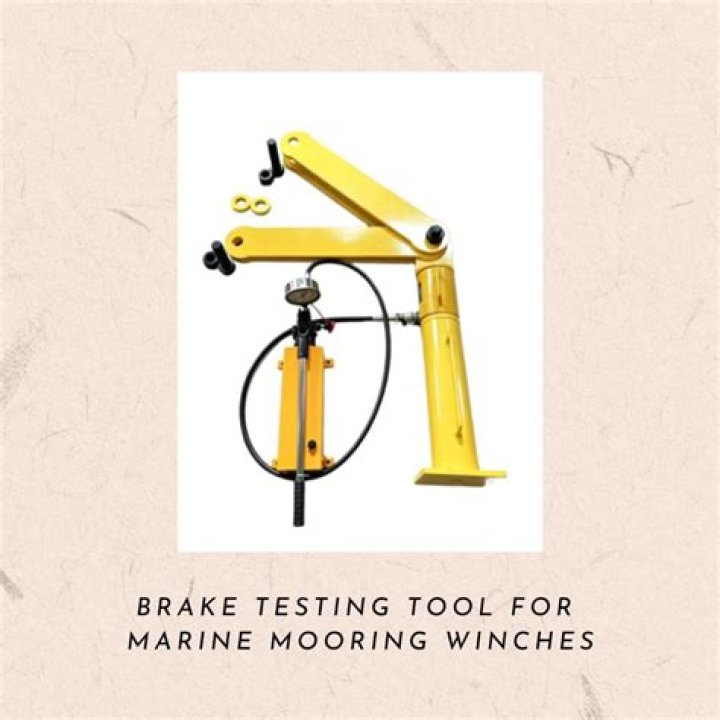

Merchant Navy Life Brake Holding Capacity Test of Mooring Winch

What is MBL in mooring?

marine. The minimum breaking load of a mooring line as declared by the manufacturer for a new line.

Do winches have brakes?

Most winches are made with dynamic brakes, meaning the gear system will automatically hold the load. ... This system features a physical brake that locks the suspended load, preventing the line from bleeding. Because hoists do not have a free spool mechanism, they are the best and safest option for lifting materials.

What are winch motors?

A winch motor is the component of the winch that actually powers the cable, rope or chain. ... As air is used to power a winch, the air is forced over gear paddles that, in turn, move other gears.

What are the two types of mooring winches?

• - Automatic tension mooring winch, self-tension winch – Winches designed to heave-in automatically whenever the line tension falls below a certain pre-set value. ...
• - Manual tension mooring winch – Manual winch always requires a person to handle the controls for heaving or rendering.

What is winches in ship?

A winch is a mechanism used to reel in, to let out, or otherwise adjust the tension of a rope, wire, or cable. Boats and ships make use of multiple winches to handle halyards, sheets, as well as anchor or mooring lines. The basic mechanism consists of a spool or winch drum to wind in and store the line.

Why is it important to keep the mooring winch greased?

Maintenance of Steel Wire Mooring Ropes – It is essential to grease and lubricate the steel wire mooring ropes at regular intervals as rust will reduce the strength of the wire in a very short period of time. Lubricating such ropes require special grease, normally oil based compounds.

What is windlass?

The windlass /ˈwɪndləs/ is an apparatus for moving heavy weights. Typically, a windlass consists of a horizontal cylinder (barrel), which is rotated by the turn of a crank or belt. A winch is affixed to one or both ends, and a cable or rope is wound around the winch, pulling a weight attached to the opposite end.

What are mooring Bitts?

Bitts are paired vertical wooden or metal posts mounted either aboard a ship or on a wharf, pier or quay. The posts are used to secure mooring lines, ropes, hawsers, or cables. ... Bitts are carefully manufactured and maintained to avoid any sharp edges which might chafe and weaken the mooring lines.

What is Sdmbl?

Ship Design Minimum Breaking Load - SDMBL. ... The SDMBL is the core parameter against which all the other components of a ship's mooring system are sized and designed with defined tolerances. Line Design Break Force - LDBF.

How do winch motors work?

The motor: As we mentioned, a winch motor will have an electric motor. The motor allows the drum to move–the heavier the object, the more power the motor will need. The way the drum gets turned is actually through magnets. The drum is set up with opposing poles on either end.

How do you wire a winch?

1. Attach the power wire to the positive post on the winch.
2. Attach the negative wire to the negative ground post on the winch.
3. Run both wires from the winch to the engine compartment, avoiding hot areas and places where the wires could get pinched.

Do winches work in both directions?

Helpful Expert Reply: Yes, the motor in the Superwinch LT3000ATV Winch, part # SW1130220, operates in both directions (both feed out and pull in).

Can you use a winch for lifting?

Can a winch be used as a hoist? Generally speaking, no. It is not safe to use a standard winch to lift loads up off the ground, as it wasn't designed for this purpose and there is a risk that the load will be dropped. One of the key differences between winches and hoists lies in their braking systems.

In what were winches or hoists used and why?

A winch is used for pulling a heavy load horizontally at a small inclined angle on a level surface. But hoist is made for lifting things vertically like cranes. Both devices hold great value in today's world. Both make our everyday tasks easier and quicker.

How is MBL calculated?

The MBL, as a weighted score, is calculated according to the formula: (number of utterances MBL1 × 1 + number of utterances MBL2 × 2 + number of utterances MBL3&4 × 3)/number of all utterances (Pharr et al., 2000;Stoel-Gammon, 1989). ... ...

How do you calculate mooring size?

Mooring Chain

Its length should be 1 1/2 times maximum water depth. The secondary (riding) chain, is connected to the ground chain with a galvanized shackle or swivel. It's usually half the diameter of the ground chain and equal in length to maximum water depth.

What is minimum breaking strength?

The minimum break strength (MBS) is defined as the minimum single value from a series of five prototype rope assembly, including terminations, break tests.
