Most current motorcycle speedometers use a sensor triggered by the teeth of a transmission gear or a similar dedicated ring or by the slots in an ABS wheel ring. These sensors send a square-wave signal to the ECU, which calculates speed from the frequency of the signal.

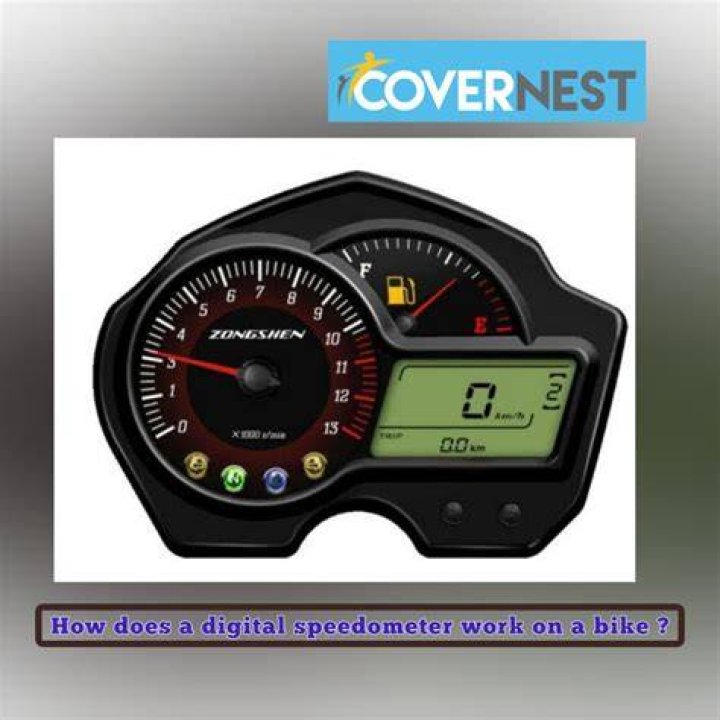

How does a digital speedometer work on a bike?

Typical bicycle speedometers measure the time between each wheel revolution and give a readout on a small, handlebar-mounted digital display. The sensor is mounted on the bike at a fixed location, pulsing when the spoke-mounted magnet passes by.

How does the speedometer work?

The speedometer cable, powered by the driveshaft, turns as well. The cable spins a magnet around at the same speed inside the speed cup. The magnet rotates continually in the same direction (in this case, counter-clockwise). ... As the speed cup turns, it turns the pointer up the dial, indicating the car's speed.

How do you read a motorcycle speedometer?

It can be electronic, mechanical or a combo of both. Whatever number it shows is the distance your bike has covered. If the right number is in a white dial, it means that it shows the meters in 100s covered. So, if it shows 22595 with 5 being in the white dial, that means the distance covered is 2259 km and 500 m.

How do I fix my bike speedometer?

Put a small amount of speedometer cable grease on the square end of the cable, and reattach it to the front wheel speedometer hub. Route the cable to the underside of the speedometer and attach the upper end to the fitting on the speedometer. Tighten the fitting with pliers. Reattach the speedometer cable guides.

Animation | How speedometer works | Eddy current type

Why is my bicycle speedometer not working?

The most common problems are fairly easy to fix. There are three basic causes of the vast majority of cyclecomputer malfunctions: Battery problems, wiring problems, and misalignment between the magnet and the sensor.

Why does my speedometer not work?

The most common causes of a speedometer that stopped working include are a faulty speed sensor, a broken gear on the speedometer, damaged wiring, or a faulty engine control unit.

Are bike speedometers accurate?

On testbikes we typically see an error of a few percent in the speedometer reading—at times up to 10 percent and always on the high side. ... Speedometer accuracy is very dependent on tire diameter, which is affected significantly on a motorcycle by pressure, load, and temperature.

What is odometer and speedometer?

The odometer is the device which is used to measure the distance travelled. The distance travelled by vehicle between any two points can be known by the odometer. The speedometer is the device which can tell us the instantaneous speed of any vehicle.

How do I calculate my bike miles?

The very basic formula of calculating mileage in KMPL is Distance travelled in Kms / Amount of fuel used in litres. For example, if you ride your bike for 100 km with 5 litres of fuel, the mileage of your bike is 100km/5 litre i.e, 20 km per litre.

Does a speedometer measure velocity?

Speedometers have been standard equipment in automobiles since 1910. For most cars, a pointer indicates the speed on a dial. Speedometers do not measure velocity. Velocity indicates how fast something is changing position.

How does a speedometer measure speed?

Operation. Mechanical speedometers measure the speed of a car by being linked mechanically with the gearbox output shaft . Since this shaft lies 'downstream' of the gear box, the speed with which it rotates is independent of gear changes and so gives a true measure of the road speed.

What is the root of speedometer?

The term “speedometer” is a good example of this. It's a compound made up of the noun “speed,” which dates back to Anglo-Saxon times, the connective “-o-,” and the combining form “-meter,” which comes from the Greek -μέτρον (-metron, or measure).

Will a bicycle speedometer work on a motorcycle?

yes you can, Halfords do a good selection, although the magnet you get will be one that clips onto the spoke of a pushbike, so get yourself to maplins and have a look in their catalogue at the shapes/sizes of magnet you can use so you can glue it to your Rim.

Which sensor is used in speedometer?

Speedometer Measurement Using Reed Sensors

In today's motor vehicles and motorcycles the driven distance is measured through an actuating shaft with gears connected to one wheel and indicated on the dashboard.

How much is a speedometer sensor?

The DIY cost for replacing a speed sensor is the cost of the sensor. Depending on the vehicle year, make and model, a speed sensor can cost as little as $7.92 or as much as $100. For most vehicles, the cost for a speed sensor is between $25 and $45.

What is RPM in speedometer?

Simply, RPM stands for revolutions per minute (or revs per minute) and this significant gauge tells the driver how fast the engine is spinning. ... Knowing how fast the engine is turning is arguably as important as the other gauge that often sits next to it - the speedometer.

What is average speed class 9th?

The average speed of any object is the total distance travelled by that object divided by total time elapsed to cover the said distance.

What is trip in speedometer?

Most modern cars include a trip meter (trip odometer). Unlike the odometer, a trip meter is reset at any point in a journey, making it possible to record the distance traveled in any particular journey or part of a journey. ... Luxury vehicles often have multiple trip meters.

Do you need a speedometer on a bicycle?

Bike speedometers are essential for all cyclists. They offer relevant data on your cycling speed, trip distance, calories burnt, and real-time location. You need to pick wisely and consider the durability, price, connectivity, and uses you are looking for in the device before you buy.

What is the most accurate bike computer?

• Garmin Edge 1030. ...
• Garmin Edge 530. ...
• Garmin Edge 830. ...
• Garmin Edge 130. ...
• Wahoo Elemnt Roam. ...
• Cateye Quick Wireless Cycle Computer. ...
• Lezyne Super GPS. ...
• Bryton Rider 420 E cycling computer. A cycling computer packed with features for a reasonable price.

Who can calibrate a speedometer?

Any reputable mechanic who records results properly and can produce a valid report may run a speedometer calibration on your vehicle. Though it costs about $75 and lasts about an hour, obtaining a calibration report could help your defense.

Can speedometer be repaired?

To solve this issue, the wiring needs to be changed, or the sensors need to be re-calibrated. The speedometer also needs to be calibrated if the tires on your vehicle have changed. Safety Restore is a professional post-accident restoration company that knows how to fix broken speedometer.

What to do if speedometer is not working?

if the wheel speed sensor is the cause of a speedometer failure, the abs and check engine lights will typically turn on as well. solution : if a bad sensor turns out to be the primary cause, the solution will most likely be to replace the wheel speed sensor.

Where is the speedometer sensor?

The Speedometer Vehicle Speed Sensor (VSS) is located in the transmission housing on the passenger side output flange. Automatic Transmission The Vehicle Speed Sensor (VSS) is located on the right side of the transmission near the output shaft.
