Storage and Shelf Life Warm the prepreg to room temperature before opening the bag to avoid excessive condensation. The prepreg can be stored at room temperature for up to 6 months, but some reduction in tack may occur. Shelf life is 1 year if stored ≤ 40°F.

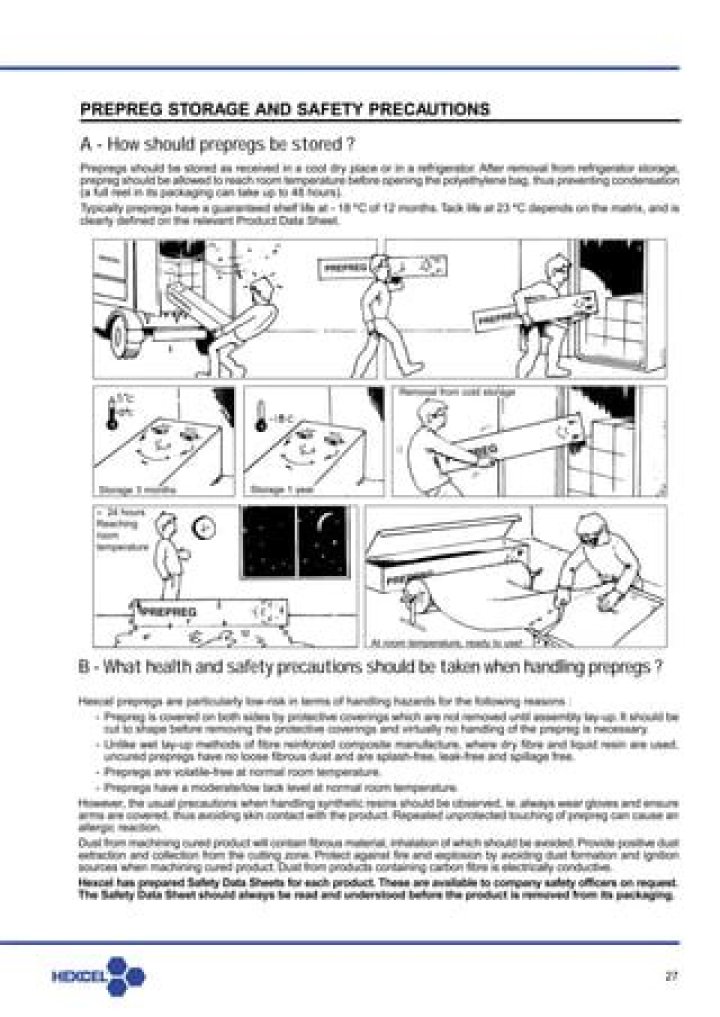

How should CF epoxy prepregs be stored?

The prepreg should be contained in a moisture impermeable wrapping (preferably also airtight) prior to freezing.

How do you store composites?

Although dental manufacturers recommend that composites be stored at room temperature10, all of the variables that include storage temperature and transportation conditions are not under control. The effect of these variables over the composite clinical performance can be minimized if properly considered.

Why should pre preg material be stored at low temperatures?

8.10.

Consequently, thermoset ballistic prepregs have limited shelf life. To minimize the rate of chemical reaction, these have to be stored in a freezer under cryogenic conditions. The prepreg rolls should be clearly marked, and should be stored in such a manner that these rolls do not touch one another.

What is the typical storage life for prepreg material?

Under ambient temperature conditions of 23°C, epoxy prepreg resins typically have a shelf life of around 3 – 8 weeks; this will vary depending on the specific prepreg grade and the amount of ambient temperature variation.

Pre-Preg Overview

What is the shelf life of a thermoplastic prepreg?

The primary difference between thermoset and thermoplastic prepreg is that thermoplastic prepregs are stable at room temperature, and generally, do not have a shelf life.

What are prepregs used for?

Prepregs are typically used by experienced fabricators who are interested in minimizing the weight of their part. Typical applications include aerospace, racing, sporting goods, pressure vessels, and commercial products. Generally, prepregs are used by fabricators who have experience with hand layup and vacuum bagging.

What are prepregs explain briefly the manufacturing process?

What is a Prepreg? Prepregs are composite materials in which a reinforcement fiber is pre-impregnated with a thermoplastic or thermoset resin matrix in a certain ratio. ... This B- stage prepreg will need to be heated in an autoclave or oven during manufacture of composite materials to achieve full polymerization.

What is pre preg material?

Pre-preg is a composite material made from "pre-impregnated" fibers and a partially cured polymer matrix, such as epoxy or phenolic resin, or even thermoplastic mixed with liquid rubbers or resins. ... Hence, composite structures built of pre-pregs will mostly require an oven or autoclave to cure.

How is carbon fiber stored?

Proper storage: Like most other materials, carbon fiber needs to be stored properly to last as long as it should. This material should not be stored in direct sunlight or in wet environments. It should also be stored in mild temperatures to avoid heating the material up to the point of deterioration.

What is vacuum bagging?

Vacuum bagging (or vacuum bag laminating) is a clamping method that uses atmospheric pressure to hold the epoxy-coated components of a laminate in place until the epoxy cures. ... With vacuum bagging, you can laminate a wide range of materials from traditional wood veneers to synthetic fibers and core materials.

How long does carbon fiber take to cure?

For the best results, we suggest a cure temperature of 80°C for a period of 10hrs. Higher temperatures will cure the prepreg much quicker but will require more specialist mould materials and may also reduce the surface finish quality of the cured parts.

What is resin content?

The amount of resin in a laminate expressed as either a percent of total weight or total volume.

What is prepreg tape?

Prepregs are pre-engineered laminating materials for reinforced plastics. Their roles and characteristics, and the properties of the two major physical types, unidirectional tape and woven fabric, are described.

What are different techniques to prepare prepreg?

The most common prepreg processing techniques are vacuum bagging and autoclave. The main difference between these two processes is in the curing method. Prepregs generally produce significantly high laminate strengths when layed up and cured using autoclave processing [5].

What is wet lay up process?

Wet Lay-up/Hand Lay-up Manufacturing Process for Composites. Simple, low cost, open mold fabrication process using liquid epoxy resin to position layers of laminations in a mold until desired shape/thickness is achieved. ... Secondary posture process will enhance/maximize composite performance capability.

How do you cure carbon fiber?

Cycom 950-1 plain weave carbon fiber prepreg was used in all studies. The recommended cure cycle for this material is a ramp at 2°C min⁻¹ to 130°C, hold for 2 h, then ramp at 2°C min⁻¹ to room temperature.

Can carbon fiber be molded?

The first is to make a traditional mold into which you will place carbon fiber sheets in multiple layers. Once cured, you remove the part from the mold. ... He created a tool that acted as both the mold for his layup and the core of the finished product.

What is a PCB core?

The core of a PCB is rigid base material laminated with copper on one or two sides. A CORE is used for manufacturing single sided and double sided boards but is also used in the production of MULTI layer PCBs.

What is prepreg thermoplastic?

Thermoplastic prepreg materials are fully impregnated and fully consolidated one-layer sheets made from carbon or glass fibre fabrics and a broad variety of thermoplastic materials as matrix materials. ... Custom matrix and fibre combinations, fibre architectures or matrix materials can be offered upon request.

What is the difference between a thermoset and a thermoplastic composite?

Thermoset polymers are polymers that are cured into a solid form and cannot be returned to their original uncured form. ... Thermoplastic matrix composites are tougher and less brittle than thermosets, with very good impact resistance and damage tolerance.

What does polyester resin need to make it into a solid plastic?

The addition of styrene in amounts of up to 50% helps to make the resin easier to handle by reducing its viscosity. The styrene also performs the vital function of enabling the resin to cure from a liquid to a solid by 'cross-linking' the molecular chains of the polyester, without the evolution of any by-products.
