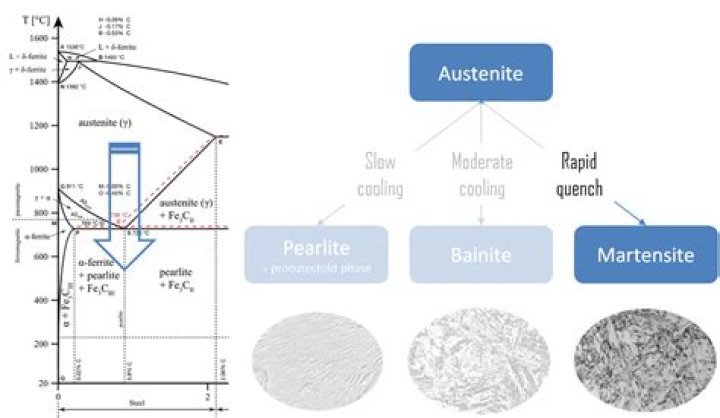

Martensite is formed in carbon steels by the rapid cooling (quenching) of the austenite form of iron at such a high rate that carbon atoms do not have time to diffuse out of the crystal structure in large enough quantities to form cementite (Fe₃C). ... A very rapid quench is essential to create martensite.

What does martensite consist of?

Martensite is a supersaturated solid solution of carbon in ferrite with a body-centered tetragonal (BCT) structure. Upon rapid cooling, carbon is trapped in the crystal structure.

How is martensite formation promoted?

Large stresses, above plastic yield, are required to form martensite at higher temperatures. ... Two reasons for the promotion are stress concentrations at obstacles [18] (e.g. grain boundaries, twin boundaries, etc.), which assist the transformation [19] and the creation of new nucleation sites by plastic straining [20].

How is tempered martensite formed?

Tempering involves a three-step process in which unstable martensite decomposes into ferrite and unstable carbides, and finally into stable cementite, forming various stages of a microstructure called tempered martensite. ... This reduces the amount of total martensite by changing some of it to ferrite.

What is martensite transformation?

The martensitic transformation is a diffusionless phase transition in the solid state with a large deviatoric component. ... This is characteristic of diffusionless transformations with large shape changes. For these reasons the transformation can be called deviatoric.

Martensite Formation and Hardening of Steel

What is martensitic microstructure?

Martensitic steels have a predominantly lath martensite microstructure, as shown in Figure 2.9, and are formed by continuous annealing in the austenite region followed by rapid quenching of the steel. Higher hardenability is achieved by increased carbon content, typically of the order of 0.25 weight percent carbon.

What determines hardness of martensite?

This is based on describing the strength contributions of the dislocation density in lath and plate martensite, precipitates and retained austenite. The strength of the matrix is the main contributor to the overall hardness, followed by precipitation, which effects increase with reducing the austenite volume fraction.

Why does martensite formation cause the hardening of steel?

The martensite transformation changes the mechanical properties of steel considerably. The hardness as well as the flow stress rises with the carbon content until a certain limit of retained austenite remains. The high strength arises primarily from the solid solution hardening and the high dislocation/twin density.

How is Cementite formed?

Cementite forms directly from the melt in the case of white cast iron. In carbon steel, cementite precipitates from austenite as austenite transforms to ferrite on slow cooling, or from martensite during tempering.

How is retained austenite formed?

Austenite that does not transform to martensite upon quenching is called retained austenite (RA). Thus, retained austenite occurs when steel is not quenched to the Mf, or martensite finish, temperature; that is, low enough to form 100% martensite. ... Retained austenite is a spe- cific crystalline form of iron and steel.

Is martensite a phase or microstructure?

By this definition, martensite is definitely a phase. Bainite would fail because it is a mixture of ferrite and carbide, i.e. of two phases. The same is true for pearlite. So bainite and pearlite would be microstructures, but martensite would be a phase.

Why 100% martensite is not formed after quenching?

Due to drastic quenching in a quenching media. Drastic cooling does not allow the complete austenite to transform to Martensite. The atoms are entrapped and BCT, Body centered tetragonal structure is formed. Some amount of austenite is retained, hence called as Retained Austenite.

Can martensite turn into austenite?

There, the martensite-to-austenite formation was found to be complete at 1223 K (950 °C). Christien et al. [33] also recently observed an A _c3 temperature of 1223 K (950 °C) for a 17-4 PH martensitic stainless steel using neutron diffraction measurements, where 5 pct of martensite was still present at 1203 K (930 °C).

What are two types of martensite?

Since the precipitation or the decomposition of martensite takes place in two steps, it is necessary to distinguish two kinds of martensite, α and β, the former being less stable, and hence more easily attacked by acid, than the latter.

What happens when you quench austenite?

If you quench a carbon steel from its austenite regime, you will have phase transformation and at high cooling rates to room temperature you will have martensite and possibly retained austenite, if the carbon content is high. If the cooling is stopped at a higher temperature, retained austenite fraction is higher.

Is martensite brittle or ductile?

Martensite is a supersaturated solution of carbon in iron. Due to the high lattice distortion, martensite has high residual stresses. The high lattice distortion induces high hardness and strength to the steel. However, ductility is loss (martensite is too brittle) and a post heat treatment is necessary.

Which is the hardest form of iron?

Steel and its alloys

Steel is a tough alloy of iron and carbon with admixtures of other elements, including silicon, manganese, vanadium, niobium, etc. Various alloying techniques can help produce steels with completely different properties. Thus, a high-carbon steel is an iron alloy with a high carbon content.

What is cast iron?

cast iron, an alloy of iron that contains 2 to 4 percent carbon, along with varying amounts of silicon and manganese and traces of impurities such as sulfur and phosphorus. It is made by reducing iron ore in a blast furnace. ... Most cast iron is either so-called gray iron or white iron, the colours shown by fracture.

Is pearlite a BCC?

The alpha phase is called ferrite. Ferrite is a common constituent in steels and has a Body Centred Cubic (BCC) structure [which is less densely packed than FCC]. Fe₃C is called cementite and lastly (for us), the "eutectic like" mixture of alpha+cementite is called pearlite.

What rate of cooling causes the formation of martensite?

Conclusions. This work shows that during the quenching process of a 50CrMo4 steel the cooling rate below 500 °C has essential influence on the resulting martensitic microstructure. Therefore, it should be chosen carefully to obtain the desired martensite properties, such as hardness, in the as-quenched material.

Why martensite is very hard?

Because the cooling rate is so sudden, carbon does not have enough time for diffusion. Therefore, the martensite phase consists of a metastable iron phase oversaturated in carbon. Since the more carbon a steel has, the harder and more brittle it is, a martensitic steel is very hard and brittle.

Why is martensite needle like?

The needlelike shapes are in fact cross sections of martensite plates. The plates etch dark after tempering and are surrounded by white-appearing retained austenite.

Does martensite increase with carbon content?

With the increase of carbon content, lath martensite will transforms to acicular martensite gradually. (2) Due to the increasing of carbon supersaturation and refinement of martensite with the increase of carbon content, the hardness increases and impact toughness decreases gradually.

Why is martensite harder than austenite?

Formation of Martensite involves a transformation from a body-centered cubic structure to body-centered tetragonal structure. The large increase in volume that results creates a highly stressed structure. This is why Martensite has a higher hardness than Austenite for the exact same chemistry…

What is the difference between martensite and pearlite?

Like martensite, pearlite is created by quenching steel, usually with water or oil. However, the key difference between it and martensite lies in the rate at which it is cooled. Pearlite is cooled more slowly than its martensite counterpart, making it softer and easier to bend.
