There's no limit. A standard GFCI will protect up to 20 amps, drawn from any combination of receptacles, either the built-in one or any number of additional ones connected to its load terminals.

Can one GFCI protect multiple outlets?

Yes, one GFCI receptacle, just like one GFCI breaker, can protect the entire circuit. To install a GFCI receptacle to protect the entire run, you need to find the first receptacle location on the circuit.

How many outlets can you daisy chain off a GFCI?

You can simply install one GFCI and daisy chain any legal number of regular grounded outlets off the LOAD terminals (not the line terminals! Those go to the supply from the panel) off of it, and it will protect them all. There is no need to use further GFCI outlets in that circuit.

Do I need GFCI on every outlet?

The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. ... In bedrooms, living rooms, and other areas where water fixtures are not found, regular outlets are fine—and they are still installed in today's new homes.

How many outlets can you put on a 20 amp GFCI circuit?

One rule of thumb is to assign a maximum draw of 1.5 amps to each receptacle, which allows for 10 receptacles on a 20-amp circuit.

How Many Ground Fault Circuit Interrupters On One Breaker

Can 15 amp outlets be used on 20 amp circuit?

15 Amp Circuits

The wire has a rating that allows it to carry up to 20 amps. In most home installations, several 15-amp receptacles connect to a 20-amp circuit breaker. This allows multiple devices to connect to a single 20-amp circuit as long as the total circuit load does not exceed 20 amps.

Can you daisy chain GFCI outlets?

With GFCI devices designed for residential installation, there is no need to daisy chain them, as they all are set to trip at around 6mA of leakage current. Daisy chaining GFCIs does not increase protection.

Do you need GFCI in garage?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

Does a refrigerator need a GFCI?

Residential Kitchen

In a dwelling unit (residential), GFCI protection is only required for kitchen receptacles that serve the countertop surfaces. There's no requirement to GFCI protect receptacles that serve a refrigerator. Unless the fridge is plugged into a countertop receptacle.

What causes a GFCI to trip repeatedly?

Circuit overload occurs when more amperage flows through an electric wire or circuit than it can handle. This may happen if you connect malfunctioning or defective appliances. Loose, corroded wires or connections may also be to blame. Once the GFCI outlet senses an overload, it trips or "breaks" the circuit.

What happens if you have 2 GFCI outlets on the same circuit?

You can use two GFCI outlets on one circuit without any problem, and it is common practice. ... That is because multiple GFCIs on the same circuit are generally wired from the load output from the original one. If you lose power to the GFCI outlet that the other outlets are wired to, they typically all go down.

Can you piggyback GFCI outlet?

To save money, you can put in a single GFCI and then wire additional standard outlets to the "LOAD" output from the single GFCI. ... This provides the same protection as having a GFCI at each location.

Does GFCI protect downstream?

One of the best features of GFCI (Ground Fault Circuit Interrupters) is their downstream protection. That means the same safety feature you get from a GFCI outlet is automatically applied to all other outlets wired further down on the same circuit, as long as the outlets are wired properly.

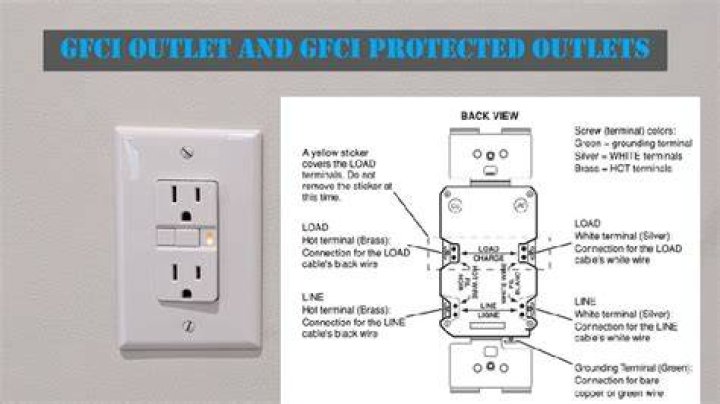

Does power go to line or load on GFCI?

The “line” wires are the incoming power from the breaker box and the “load” wires are the outgoing power that travels down the circuit to the next outlet.

Can you put GFCI at end of run?

You will need to install an end-of-line GFCI receptacle if you are installing a jacuzzi. ... Wiring an end-of-run ground fault circuit interrupter (GFCI) receptacle is necessary when wiring in a new whirlpool bath, hot tub or a small swimming pool.

Should microwave be on GFCI?

A GFI or GFCI outlet is needed if the microwave is located less than 6 feet from a water source such as the edge of the sink, toilet, shower, etc. It is also needed if located outdoors, garages, kitchen counter tops, near laundry, utility sinks, wet bar sinks and near swimming pools.

Should dishwasher be on GFCI?

GFCI protection is not required for receptacles serving appliances like dishwashers, or convenience receptacles that do not supply countertop surfaces. Receptacles installed within 6 ft of the outside edge of a wet bar sink must also be GFCI-protected [210.8(A)(7)].

Can a refrigerator share an outlet with a TV?

A fridge should not be sharing an outlet. The addition of other electrical devices to that outlet could overload the circuit, resulting in your circuit breaker being tripped and power supply being cut.

Can I use 15 amp GFCI in kitchen?

Requirement: All 15 amp and 20 amp outlets, whether GFCI or not, must be tamper-resistant in the following kitchen-related places: small appliance circuit, countertop space, wall, and hallway space. Why: If you have not done electrical work for a few years, you may be surprised by this requirement.

Are GFCI required in bedrooms?

GFCI is not required in bedrooms, but is useful.

Does an air conditioner need and GFCI breaker protection?

Per the 2020 National Electric Code, your Air Conditioner or Heat Pump will now be required to be GFCI protected. ... This is one of many changes in the 2020 Electrical Code. GFCI protection of 120 volt circuits has been required in many locations for a long time and that list of locations keeps getting longer and longer.

Can you put GFCI in series?

You only need 1 GFCI outlet per circuit (assuming it's at the beginning of the line and the rest of the outlets are loads). They are correctly wired in parallel - if they were in series, you wouldn't get the correct voltage at the other outlets when there is any type of load present.

Is there a difference between GFI and GFCI?

GFCI vs GFI. Ground fault circuit interrupters (GFCI) and ground fault interrupters (GFI) are the exact same device under slightly different names. Though GFCI is more commonly used than GFI, the terms are interchangeable.

Can you install a GFCI outlet anywhere?

GFCI outlets should be installed in any potentially wet or damp areas such as kitchens, bathrooms, laundry rooms, outdoors, basements, garages and workshops.
