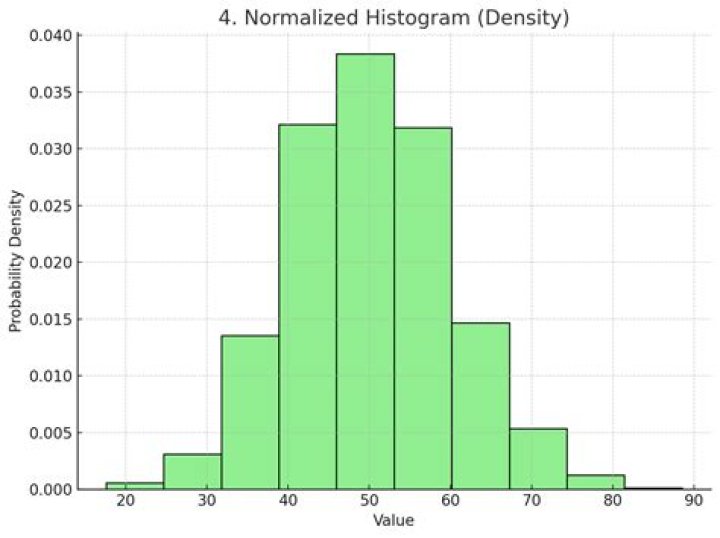

How is the expression represented for the normalized histogram? Explanation: It is common practice to normalize a histogram by dividing each of its values by the total number of pixels in the image, denoted by n. Thus, a normalized histogram is given by p(r_k )=n_k/n, for k=0,1,2….. L-1.

What is normalization in histogram?

A: Normalization of a Histogram

Normalize an histogram is a technique consisting into transforming the discrete distribution of intensities into a discrete distribution of probabilities. To do so, we need to divide each value of the histogram by the number of pixel.

What is the sum of all the components of a normalized histogram?

Note that the sum of all components of a normalized histogram is equal to 1.

What is histogram matching also called as?

The Histogram Matching (also called Histogram Specification) algorithm generates an output image based upon a specified histogram.

What is the general form of representation of log transformation?

What is the general form of representation of log transformation? Explanation: The general form of the log transformation: s=clog₁₀(1+r), where c is a constant, and it is assumed that r ≥ 0. ... Explanation: Power-law transformations have the basic form: s=cr^γ where c and g are positive constants.

Image processing (5) | Image Information | Normalized and cumulative histograms

Which of the following is the correct representation of log transformation?

Explanation: In general, log transformation can be formulized as; s=clog₁₀(1+r), where c is constant and r ≥ 0. 32) Which of the following the general representation of power transformation?

What is the use of histogram equalization?

Histogram Eq u alization is a computer image processing technique used to improve contrast in images . It accomplishes this by effectively spreading out the most frequent intensity values, i.e. stretching out the intensity range of the image.

How do you equalize a histogram?

1. Get the input image.
2. Generate the histogram for the image.
3. Find the local minima of the image.
4. Divide the histogram based on the local minima.
5. Have the specific gray levels for each partition of the histogram.
6. Apply the histogram equalization on each partition.

What is histogram equalization discuss in detail about the procedure involved in histogram matching?

While the goal of histogram equalization is to produce an output image that has a flattened histogram, the goal of histogram matching is to take an input image and generate an output image that is based upon the shape of a specific (or reference) histogram. Histogram matching is also known as histogram specification.

What is the difference between image restoration and image enhancement?

Image Enhancement: – A process which aims to improve bad images so they will “look” better. Image Restoration: – A process which aims to invert known degradation operations applied to images.

How do you express the normalized histogram Mcq?

How is the expression represented for the normalized histogram? Explanation: It is common practice to normalize a histogram by dividing each of its values by the total number of pixels in the image, denoted by n. Thus, a normalized histogram is given by p(r_k )=n_k/n, for k=0,1,2….. L-1.

What is the equation for getting a component of each RGB pixel in RGB color format?

5. What is the equation used to obtain I(Intensity) component of each RGB pixel in RGB color format? Explanation: If an image is given in RGB format then the intensity (I) component is obtained by the equation, I=1/3 (R+G+B).

What are the steps of processing assigning a label?

8. In which step of the processing, assigning a label (e.g., “vehicle”) to an object based on its descriptors is done? Explanation: Recognition is the process that assigns a label (e.g., “vehicle”) to an object based on its descriptors.

What is normalized histogram of an image?

In image processing, normalization is a process that changes the range of pixel intensity values. ... Normalization is sometimes called contrast stretching or histogram stretching. In more general fields of data processing, such as digital signal processing, it is referred to as dynamic range expansion.

How do you plot a normalized histogram?

To normalize a histogram in Python, we can use hist() method. In normalized bar, the area underneath the plot should be 1.
...
Steps

1. Make a list of numbers.
2. Plot a histogram with density=True.
3. To display the figure, use show() method.

What is Normalisation?

What Does Normalization Mean? Normalization is the process of reorganizing data in a database so that it meets two basic requirements: There is no redundancy of data, all data is stored in only one place. Data dependencies are logical,all related data items are stored together.

What do you understand by histogram equalization and histogram matching How do these processes enhance the image?

Histogram equalization is commonly used in order to enhance the contrast of the image. Accordingly, this technique can't guarantee to always improve the quality of the image. Calculating CDF (cumulative distributive function) is a common way to equalizing the histogram of an image.

What is histogram and explain about histogram equalization and specification?

In image processing, histogram matching or histogram specification is the transformation of an image so that its histogram matches a specified histogram. The well-known histogram equalization method is a special case in which the specified histogram is uniformly distributed.

What do you mean by histogram explain histogram equalization?

Histogram Equalization is an image processing technique that adjusts the contrast of an image by using its histogram. To enhance the image's contrast, it spreads out the most frequent pixel intensity values or stretches out the intensity range of the image.

What is image normalization?

Image normalization is a process, often used in the preparation of data sets for artificial intelligence (AI), in which multiple images are put into a common statistical distribution in terms of size and pixel values; however, a single image can also be normalized within itself.

What is the role of histogram equalization in image enhancement?

Histogram equalization is a technique for adjusting image intensities to enhance contrast. This method usually increases the global contrast of many images, especially when the usable data of the image is represented by close contrast values.

What is histogram stretching in image processing?

Histogram stretching involves modifying the brightness (intensity) values of pixels in the image according to some mapping function that specifies an output pixel brightness value for each input pixel brightness value. For a grayscale digital image, this process is straightforward.

What is histogram in image processing?

In an image processing context, the histogram of an image normally refers to a histogram of the pixel intensity values. This histogram is a graph showing the number of pixels in an image at each different intensity value found in that image.

What is the relation between the histogram equalized images?

The histogram equalization increases the contrast and make the gray-level difference of output image visually indistinguishable.

What is local histogram Equalisation describe it?

Histogram equalization is a widely used image contrast enhancement method. While global histogram equalization enhances the contrast of the whole image, local histogram equalization can enhance many image details by taking different transformation of the same gray level at different places in the original image.
