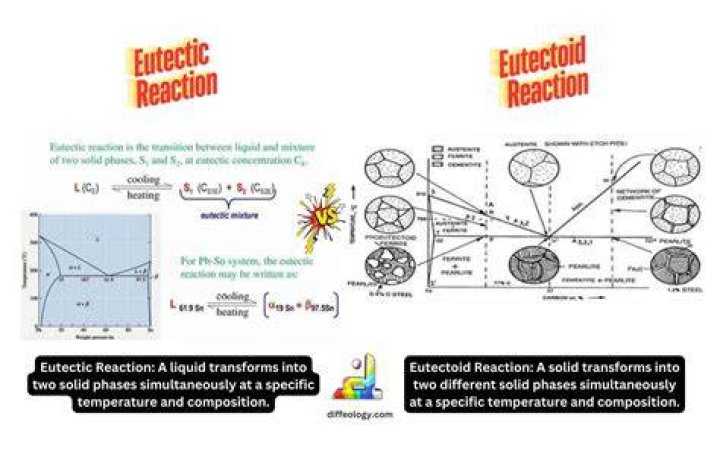

The key difference between eutectic and eutectoid reaction is that in eutectic reactions, a liquid transforms into two solid phases at the same time whereas in a eutectoid reaction, a solid transform into two other solid phases at the same time.

What is eutectoid and eutectic point?

Eutectoid is used to signify that the liquid phase in a eutectic phase diagram has been replaced by a solid phase. Otherwise the eutectoid and eutectic definitions are identical. For example, in steels the solid gamma phase undergoes a eutectoid reaction to become a lamellar mixture of alpha and cementite.

What is the difference between eutectic and peritectic?

The difference between eutectic and peritectic is that eutectic is describing the thermodynamic equilibrium conditions where a liquid coexists with two solid phases while peritectic is describes the isothermal reversible reaction of a liquid phase and a solid phase to form a second solid phase during cooling.

What does eutectic mean?

1 of an alloy or solution : having the lowest melting point possible. 2 : of or relating to a eutectic alloy or solution or its melting or freezing point.

What does eutectic mean in chemistry?

eutectic, the one mixture of a set of substances able to dissolve in one another as liquids that, of all such mixtures, liquefies at the lowest temperature.

Eutectoid, Eutectic and Peritectic | Engineering Materials

What is eutectic substance example?

Eutectic Temperature

Where a eutectoid is a stable mixture that occurs when two or more molten metals are cooled to a certain temperature. An example of eutectic temperature is, Sodium chloride and water combine to form a eutectic mixture with a eutectic point of 21.2 °C and salt content of 23.3 per cent by mass.

What is eutectoid system?

The eutectoid reaction describes the phase transformation of one solid into two different solids. In the Fe-C system, there is a eutectoid point at approximately 0.8wt% C, 723°C. The phase just above the eutectoid temperature for plain carbon steels is known as austenite or gamma.

What is a eutectoid reaction?

The Eutectoid reaction involves a single solid phase decomposing into two different solid phases: γ → α + β. The iron-carbon system shows this type of reaction. ... Because solid state diffusion is involved in the phase change reactions, these processes are slower than those in which a liquid phase is present.

What is eutectoid temperature?

The eutectoid temperature is the minimum temperature at which a material exists as a single solid solution phase or, in other words, when the alloying elements are completely soluble in the matrix phase.

Why is eutectic point important?

Ans: The eutectic system is used to make ice-creams and for melting ice and snow. The eutectic point of a mixture of ethanol and water is pure ethanol. The value indicates the maximum proof of the purity of alcohol which is obtained through distillation.

What is eutectoid mixture?

Eutectoid: Eutectoid refers to a homogeneous solid mixture that forms from cooling two or more melted metals to a certain temperature. ... Contrast this with a non-eutectic mixture, in which each component will solidify into a lattice at its own specific temperature until the whole material eventually becomes solid.

What is a eutectic transformation?

A eutectic reaction is a three-phase reaction, by which, on cooling, a liquid transforms into two solid phases at the same time. ... For example: liquid alloy becomes a solid mixture of alpha and beta at a specific temperature (rather than over a temperature range).

What is the region between liquidus and solidus lines?

Explanation: The intermediate region between liquidus and solidus lines is the two-phase region where liquid and solid coexists.

What is the eutectic composition and why is it important?

Eutectics form one single common crystal when crystallized (Hasnain, 1998). One of the most important characteristics of eutectics is their capability to melt/freeze congruently without phase segregation.

What is eutectic eutectoid and peritectic reaction?

In the solid state analog of a eutectic reaction, called a eutectoid reaction, one solid phase having eutectoid composition transforms into two different solid phases. ... Peritectic and peritectoid reactions do not give rise to micro-constituents as the eutectic and eutectoid reactions do.

What is the difference between eutectic point and triple point?

Eutectic point is the temperature at which a particular eutectic mixture freezes or melts. Triple point is when the 3 phases namely solid ice, liquid water, water vapour are simultaneously at equilibrium.

What is eutectoid steel?

Steel that in the annealed condition consists entirely of pearlite. This steel contains about 0.78 percent carbon in a pure iron-carbon alloy. Steels with more carbon are known as hyper-eutectoid and contain free cementite. ...

How do you find the eutectoid point?

The location on a phase diagram indicating the eutectoid composition and eutectoid temperature of an alloy. The eutectoid point also indicates the location at which three solid phases co-exist. In the iron-carbon phase diagram, this point indicates a temperature of 1333 F and a carbon content of 0.8%.

Which of the following is a eutectoid reaction?

A chemical reaction in which, during the cooling of a metal, one solid phase yields two different solid phases. In the iron-carbon phase diagram this reaction occurs as austenite drops below the eutectoid point, and results in austenite transforming into ferrite and cementite, in the form of pearlite.

What is eutectoid solid solution?

In contrast to the eutectic, which describes phase transitions from liquid to solid state, with eutectoids a solid high-temperature phase forms two solid phases that finely blend into each other. An example for this phase transition is the conversion of iron-carbon solid solution to pearlite.

Which of the following is eutectic substance?

Examples of Eutectic Systems Sodium chloride and water form a eutectoid when the mixture is 23.3% salt by mass with a eutectic point at -21.2 degrees Celsius. The system is used to make ice cream and to melt ice and snow. The eutectic point of the mixture of ethanol and water is nearly pure ethanol.

What is a eutectic phase and what is its significance?

A eutectic phase consists of a mixture of chemical compounds having the same composition and a single melting point temperature. Metals having such phases are also called easy-melting alloys. The microstructure of eutectic alloys is typically a lamellar structure.

What is formed when the electronegativities of atoms differ?

Elements with great differences in electronegativity tend to form ionic bonds. Atoms of elements with similar electronegativity tend to form covalent bonds. (Pure covalent bonds result when two atoms of the same electronegativity bond.)

What is the melting point of pure iron?

Iron is a chemical element with symbol Fe (from Latin word Ferrum). Its atomic number is 26 and atomic mass is 55.85. It has a melting point of 1538 deg C and boiling point of 2862 deg C.
