Hub-centric rings fill the gap between the wheel's center bore and the vehicle hub for vehicles that are lug-centric. This aligns and centers the tire and wheel assembly on the vehicle, helping to minimize vibration. Note: Hub-centric rings don't carry any load and are not required for a secure installation..

Do you really need hub centric rings?

Do I need Hubcentric Rings or Hubcentric Adapters? Yes, if your wheel center bore is a larger diameter than your hub bore, you absolutely need hubcentric rings. This is because aftermarket wheels are typically designed to fit as many cars as possible unless they are custom-made for your specific application.

How tight should hub centric rings be?

The most important thing is the tightness of the fit of the wheel on the hub. Whichever one gives a tight fit that doesn't allow any movement of the wheel. My hubcentric rings fit very snug to the wheels, but are a close/accurate fit to the hubs.

How do I choose a hub centric ring?

The Hub Centric Ring will take up the space between your Wheel Bore and Hub. For example, if the diameter of the wheel hub is 67.1 mm, and the wheel centre bore is 73 mm, a centric ring with an I.D. of 67.1 mm & O.D. of 73 mm is needed in-between, so the right part is TOC73-6710.

Where do Hubcentric rings go?

The centric ring is a device used with the rims and are installed between the car wheel hub and the rim. The purpose of the hub centric ring is to fill the empty space between the wheel hub and the center bore of the rim. Centric rings are usually made of durable industrial plastic.

Hubcentric Rings - When and Why

Is lug centric better than hub centric?

If there is a gap between the center hole of the wheel and the hub, then it is lug-centric. Automotive applications usually use the hub centric design because the support and centering of the wheel better resists impact loads from being used on typical roads.

What happens if I drive without hub centric rings?

If you don't use hub centric rings, you transfer the weight of the vehicle to the lug hardware, and the wheel studs will break. Fact is, the hub centric rings do not bear a load. The weight of the vehicle is actually supported by the friction between the wheel and its mounting surface on the axle.

Can the center bore be bigger?

Because a larger bore can be fitted to a smaller hub, but a larger hub can not be used with smaller bores, it makes sense for aftermarket specialists to make their bores as large as possible.

Do hub rings make a difference?

Hub centric rings keep the wheel centered on the axle during installation. A wheel that is mounted slightly off-center will vibrate while driving. It is possible to center the wheel by following Proper Installation Technique . However, hub centric rings make it easier to get right.

Can spacers cause vibration?

Do Wheel Spacers Cause Vibration? Many car owners worry about whether the wheel spacers will cause vibrations. In fact, wheel spacers in themselves don't cause vibration, they are just increasing the track of the wheels.

Are rough country wheel spacers hub centric?

Hub Centric Design

Made from 6061-T6 Aluminum. Spacers are corrosion resistant.

What is Hubcentric?

Hub centric wheels are centered on the axle by the center bore of the wheel being just large enough to fit over the hub pilot diameter. This means the wheel is basically centered on the axle as soon as it's put on the axle. ...

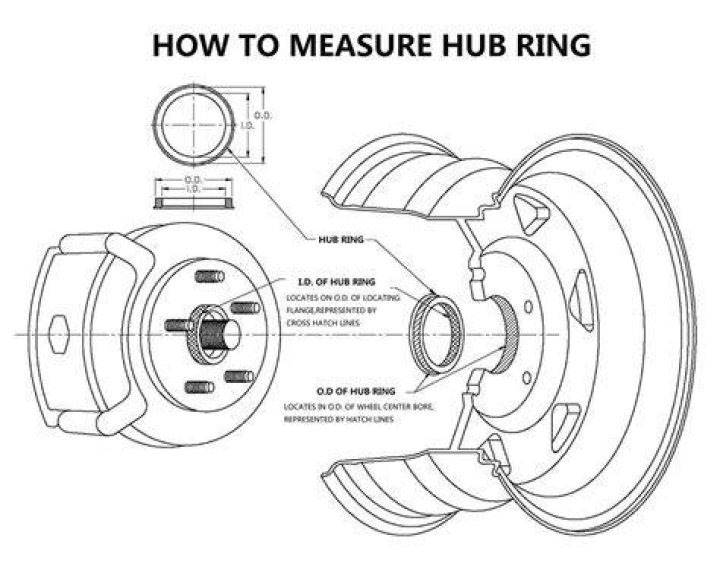

How do I find my hub centric ring size?

The size of the centric rim depends on two things: the center bore of the rim and the outer diameter of the car's wheel hub. For example, if the diameter of the wheel hub is 72.6 mm, and the wheel center bore is 74.1 mm, a centric ring with a diameter of 1.5 mm is needed in-between, so the right size is 74.1 - 72.6 mm.

What are wheel hub centric rings?

Hub rings fill the gap between the wheel's center bore and the hub pilot. This aligns and centers the tire and wheel assembly on the vehicle. Although hub rings are not required, they can play a role in minimizing vibration. Note: Hub-centric rings don't carry any load.

How do I measure my hub size?

Place a tape measure across the face of the exposed wheel hub, which it protrudes out from the center of the drum brake assembly. Take the measurement across the front of the hub, which is the diameter of the hub. Make sure your tape measure intersects the center of the hub. Write your measurement down.

Do you need hub centric rings Reddit?

You only need them for flat seat wheels. It depends on if the wheel is lug centric or hub centric. If it's hub centric, you need them. If it's lug centric, it's a good idea, but you don't need them.

What is the difference between 114.3 and 115?

The difference between 115mm and 114.3 is . 7mm. That means using the 114.3 would have each stud off center by . 35 of a millimeter.

How do you center lug centric wheels?

To ensure an accurate balance, Lug Centric wheels must be mounted on the balancer through their lug bolt pattern. Lug Centric wheels, when mounted on the vehicle, are centered by the torque of the lug bolts and not the center bore of the wheel.

How tight should spigot rings be?

Spigot rings shouldn't be loose, nor should they be popping out of the wheel. If the ring does not sit flush with the wheel's mounting face, don't fit it onto your car. This can result in incorrect fitting of the wheel, which is potentially unsafe to use.

Do fuel wheels come with hub centric rings?

Fuel Wheels do include hub centric rings on most of the wheels they offer but not all of them. In cases where Fuel Offroad Wheels will include the hub centric rings they will be provided in the common sizes mostly for 6 lug applications.
