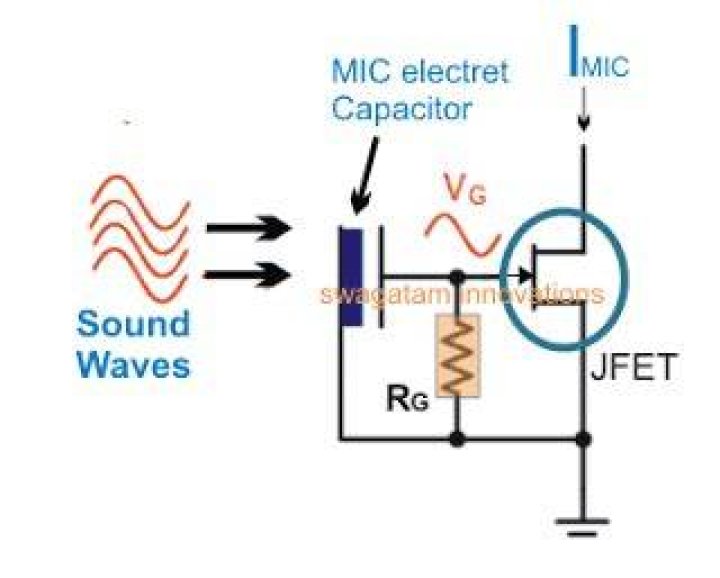

The working principle of an electret condenser microphone is that the diaphragm acts as one plate of a capacitor. Vibrations produce changes in the distance between the diaphragm and the back plate. ... This change in voltage is amplified by the FET and the audio signal appears at the output, after a dc-blocking capacitor.

Do electret microphones need power?

While the electret condenser microphone doesn't need a power supply to provide polarizing voltage, an FET impedance matching circuit inside the microphone does require some power. This may be supplied by a small low-voltage internal battery or by an external “phantom” supply.

Are electret microphones any good?

A good back-electret mic can perform every bit as well as a traditional capacitor design, and in some cases a little better, though the electrical charge sealed in the electret material can leak away very slowly over a period of several decades, resulting in a slight decrease in sensitivity.

How do I know if my electret microphone is working?

1. get a power supply, say 5V.
2. connect GND to the - of the mic.
3. connect 5V to a 22k resistor, the other side of the resistor goes to the mic.
4. connect your oscilloscope between GND and the + pin of the mic.
5. start whistling, alter two frequencies.

Is an electret microphone a condenser microphone?

An electret, or back-electret microphone, is one type of capacitor/condenser microphone. All capacitor microphones work by having an electrical charge applied. As the sound waves strike the diaphragm and make it move relative to the backplate, the electrical value of the capacitor changes.

Electret Microphones 101

How does electret condenser mic work?

The working principle of an electret condenser microphone is that the diaphragm acts as one plate of a capacitor. Vibrations produce changes in the distance between the diaphragm and the back plate. ... This change in voltage is amplified by the FET and the audio signal appears at the output, after a dc-blocking capacitor.

How do I know if my condenser mic is damaged?

One way to tell if a condenser microphone is broken is to visually inspect the electronic components and capsule inside the mic for any signs of damage. Another excellent way is to check the mic's frequency response and compare it to the microphone's expected frequency response.

How do you test a crystal microphone?

A crystal microphone is a high out microphone. If you close talk loudly, or whistle in it with an AC volt meter across the terminals you should read 3/4 volt to 1.4 volts AC. A 20,000 to 50,000 ohm per volt meter will give the higher voltage. You can also use an oscilloscope, and should get several volts peak to peak.

What is high impedance microphone?

A high impedance microphone has an impedance from 10,000 to 100,000 ohms. The most common values range between 10,000 and 50,000 ohms. ... A 50,000 ohm microphone will have lost half of its high frequencies with only 10' of cable. As a result, the sound is muffled. High impedance microphones also use unbalanced cable.

What is electret power?

An electret microphone is a type of electrostatic capacitor-based microphone, which eliminates the need for a polarizing power supply by using a permanently charged material. ... The polar molecules of the dielectric align themselves to the direction of the electrostatic field, producing a permanent electrostatic "bias".

What is the difference between an electret and condenser microphone?

This week we'll conclude with condenser microphones. ... The difference between the two is that the DC-biased condenser requires an external power supply to provide polarizing voltage while the electret condenser uses a pre-polarized diaphragm or back plate. Most condenser microphones used today are electret.

Are electret microphones bad?

Those with long experience remember when electret microphones were very cheaply made and their high frequency performance and sensitivity was compromised. They got a bad reputation in the 70s and 80s. Many early electret models went dead after a few years, mainly because they lost their electric charge.

Do condenser mics need batteries?

Introduction: Condenser Microphone Power Supply. Condenser Microphones typically sound better than dynamic microphones. ... They do not require external power such as a battery to operate. Electret condenser microphones have two little plates (capacitor), one of which vibrates in the presence of sound.

What signal does the electret condenser microphone produce?

An Electret Condenser microphone (a.k.a Condenser Microphone) is the most common type of transducer that is used to detect or measure sound signals. It functions exactly as opposite of a normal speaker, that is when a sound signal is detected it produces electrical signals.

How do you make an electret?

1. heat the electret material to the melting point and keep it hot for a while,
2. turn off the heat, heat up the top electrode (I use a heat gun), move it to above the electret material and turn on the high voltage power supply thereby placing an electric field across the electret material,

What is piezoelectric microphone?

Piezoelectric Microphones, also called Crystal Microphones, were used primarily between 1930 and 1960. ... These microphones use certain crystalline materials which can develop voltage on opposite sides when they are bent or deformed.

How does a capacitor microphone work?

A capacitor has two plates with a voltage between them. In the condenser mic, one of these plates is made of very light material and acts as the diaphragm. The diaphragm vibrates when struck by sound waves, changing the distance between the two plates and therefore changing the capacitance.

What are the limitations of crystal microphones?

The disadvantage of crystal microphone is that it is easily damaged by moisture or heat. This type of microphone is used in cassette recorders. In this type of microphone, alternating voltage is produced when sound makes the diaphragm vibrates. The impedance is very high usually in the order of 1 to 5 MegaOhm.

Can you break a microphone by yelling into it?

Can you break a microphone by yelling into it? Mics are very resistant to high sound pressure levels and would not break due to yelling. ... Although yelling is very unlikely to break a mic, plosives (which are common with yelling) may damage the mic.

Do condenser mics break easily?

Condenser mics are very delicate (remember that!) and tend to break with high SPL levels.

Are all condenser mics electret?

Probably ninety-five percent of the condenser microphones on the market are the electret type.

Do electret microphones have polarity?

1 Answer. Yes, they have polarity and it has to be right to work- the output needs to be biased positive with respect to the ground terminal. The ground/GND terminal should be common with the case, so you can check polarity with a multimeter.

What is the difference between an electret and dynamic microphones?

In addition, dynamic microphones are relatively unaffected by extremes of temperature or humidity. ... An electret condenser microphone has a permanent charge, maintained by a special material deposited on the backplate or on the diaphragm. Non-electret types are charged (polarized) by means of an external power source.
