drop forging, Process of shaping metal and increasing its strength. In most forging, an upper die is forced against a heated workpiece positioned on a stationary lower die. If the upper die or hammer is dropped, the process is known as drop forging.

Is drop forging strong?

Almong all the metal materials, most popular material is drop forged steel. It is widely used because it is a very strong and stable metal that can withstand high temperature heating by drop forging machines, thus can be shaped.

What are the advantages of drop forging?

• The production efficiency is higher. ...
• Complex shaped metal parts can be forged with this process, and the distribution of metal flow line is more reasonable. ...
• The size of drop forgings is accurate, we can also achieve better surface quality, and smaller machining allowance.

How is drop forged made?

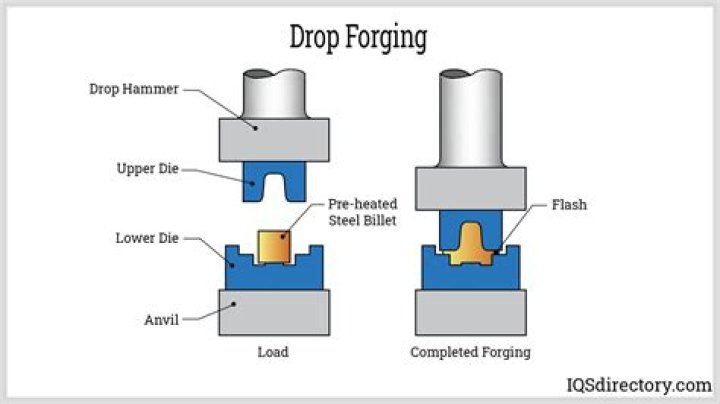

Closed die drop forging is a steel shaping process whereby a heated steel billet is placed on a lower die mould block, while an overhead, die-equipped ram hammer drives or “drops” down, forcing the metal to fill the contours of the two die blocks.

What are the disadvantages of drop forging?

Disadvantages of Drop Forging:

(1) Die preparation is a costly process. (2) Die impression requires a good skill of work. (3) Die maintenance is costly.

Drop Forging Process

What flakes off during forging?

Hammerscale, also written hammer scale, is a flaky or spheroidal byproduct of the iron forging process (for modern equivalent, see mill scale). Hammerscale is almost universally recovered from archaeological excavations in areas where iron ore was refined and forged.

Is drop forging expensive?

Cost Benefits

Customers often assume that the initial tool cost required for near net shaped forging is prohibitive. In fact, forging dies and tools are quite simple in construction and are relatively low cost, making them viable even for jobs with low production quantities.

What is smith forging?

Open-die forging is also known as smith forging. In open-die forging, a hammer strikes and deforms the workpiece, which is placed on a stationary anvil. ... The dies are usually flat in shape, but some have a specially shaped surface for specialized operations.

What is press forging?

Press forging may be defined as the process of shaping a metal that is placed between two dies by applying mechanical or hydraulic pressure. Press forging is usually done on a forge press - a machine that applies gradual pressure on the forging dies. ... Press forging is suitable for high volume productivity of forgings.

Why do tools say drop forged?

The reason why manufacturers want you to know that a tool is drop forged is because this tells you something about the strength and durability of the tool. ... The advantage of forging is that it improves the strength of the metal by aligning and stretching the grain structure.

Is chrome vanadium drop forged?

So many of our products are made of drop-forged, heat-treated Chrome Vanadium steel, which is exceptionally durable and will last for decades.

Can you drop forge stainless steel?

CFS Drop Forge is the expert in closed die drop forging, stainless steel is one of the main steel forging materials we can forge to meet special specifications. Our forging facilities can support stainless steel forgings from 0.05kg-30kg.

What is flattening in forging?

FLATTENING. Reduce the thickness of job to required shape. The flattening is carried out after drawing out, fullering or any other operation to remove the fullering marks for leveling and finishing flat surfaces.

What is the difference between drop forging and press forging?

Drop Forging – With drop forging (also called hammer forging), the metal billet is inserted into the die and hammered with multiple blows. This process continues the billet is shaped into form. ... Press Forging – Press forging uses a slower and continuous pressure to shape metal into a certain shape.

What is Rotary forging?

Rotary forging is a specific cold forging technology which uses incremental steps locally with the material to accurate, precision results. ... Rotary forging is a combination of two actions, rotational and an axial compression movement, for precise component forming that can be carried out cold or hot.

What is cold forging?

Cold forging is one of the most widely used chipless forming processes, often requiring no machining other than drilling. The commonly accepted definition is the forming or forging of a bulk material at room temperature with no heating of the initial slug or inter-stages.

What is upsetting in forging?

Upset Forging or Upsetting is defined as 'free forming', by which a billet or a portion of a workpiece is reduced in height between usually plane, parallel plates [ASM Handbook 1988]. ... Upsetting of metals is a deformation process in which a (usually round) billet is compressed between two dies in a press or a hammer.

What is the difference between upsetting and drawing down?

Upsetting is just opposite operation to drawing down. In this operation, the length of work piece decreases and its cross section area increases. In this process, a compressive force is applied at parallel direction to its length axis.

Why is drop forging stronger than casting?

Forged steel is generally stronger and more reliable than castings and plate steel due to the fact that the grain flows of the steel are altered, conforming to the shape of the part.

Are Hammers forged or cast?

Casting of hammer produces grains in it. ... Coarser grains in hammer casting have inferior mechanical properties. Forged hammer has fibrous structure, do not have grains inside. It has better mechanical properties and crack propagation is lesser.

Can you weld forged steel?

Preheating the forged part will help you get a more even weld especially if you are using something other than a tig. Due to the forging process, the steel molecules are more uniformly and tightly packed than regular cold steel, so it requires more heat to get a certain volume of material to the same temperature.

What is a blacksmith swage block?

A swage block (or swager block) is a large, heavy block of cast iron or steel used in smithing, with variously-sized holes in its face and usually with forms on the sides. The through-holes are of various shapes and sizes and are used to hold, support or back up a hot bar of metal for further shaping.

What happened to steel when hammered?

Metals have the property of malleability so when we hammer it then it will changed into thin sheet. Exception – Sodium and Potassium are the metals which is break after hammering because it does not have property of malleability.

What is blocking in forging?

The purpose of blocking (reducing the ingot cross section) in open-die press forging is to maximize the internal deformation for better structural homogeneity and soundness of material in the core of the ingot.
