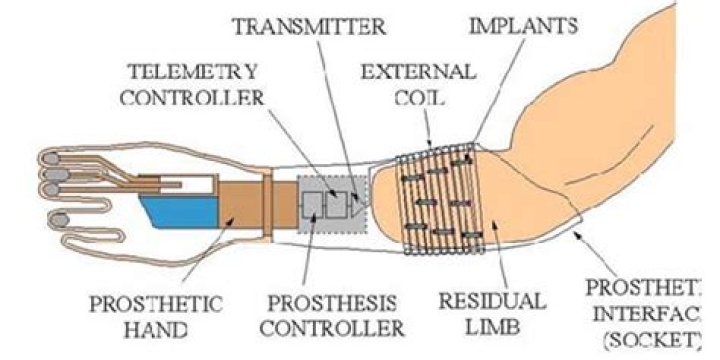

A “myoelectric” arm is operated when electrodes pick up muscle (myo is from the Greek word for muscle) impulses from the residual limb. These muscle impulses (signals) are then translated into electrical signals that are sent to the electric hand to open or close it. A battery in the prosthesis provides the power.

How do prosthetic arms stay on?

There are different methods of suspension of the prosthesis. They are: anatomical, suction, elevated vacuum, shuttle-lock (pin type) systems and lanyard systems. Anatomical suspension utilizes the contour of the bony prominences of the residual limb to hold onto.

How strong is a myoelectric arm?

It incorporates a powerful electric motor in combination with the Vario Drive clutch to help you both flex and extend your elbow—while holding up to 13 lbs!

How does a bionic arm work?

Bionic limbs typically work by detecting signals from the user's muscles. ... This sends a signal to the sensors in the bionic arm to flex the hand. Most bionic limbs have built-in computers that detect the muscle signals. Some bionic limbs require sensors to be implanted into the remaining muscles of the limb stump.

How do robotic prosthetic arms work?

Most current robotic prostheses work by recording—from the surface of the skin—electrical signals from muscles left intact after an amputation. Some amputees can guide their artificial hand by contracting muscles remaining in the forearm that would have controlled their fingers.

The Mind-Controlled Bionic Arm With a Sense of Touch

How much does a bionic arm cost?

A functional prosthetic arm can cost anywhere from $8,000 to 10,000, and an advanced myoelectric arm can cost anywhere from $25,000 to $100,000 or more. A myoelectric arm is the costliest because it looks more real and functions based on muscle movements.

What is Luke arm?

The LUKE arm is the only commercially-available prosthesis with a powered shoulder, allowing a shoulder-level amputee to reach over their head. In its shoulder configuration, the LUKE arm features ten powered joints. Shoulder Abduction and Adduction. Humeral Rotation. Elbow Flexion and Extension.

Are bionic arms stronger?

The bionic limb can lift approximately 40 pounds of weight, augmenting a user's natural strength. The arm is predominantly made of aluminum and steel components, and is powered by a DC battery.

How does a bionic arm move?

A bionic arm works by picking up signals from a user's muscles. When a user puts on their bionic arm and flexes muscles in their residual limb just below their elbow; special sensors detect tiny naturally generated electric signals, and convert these into intuitive and proportional bionic hand movement.

How much can a bionic arm lift?

The Titan Arm attaches to a user's right arm with a power motor at its elbow joint. The bionic limb can lift approximately 40 pounds of weight, augmenting a user's natural strength.

How long does it take to learn to use a myoelectric arm?

Functional training is the most intensive phase of training and can take between two weeks to two months (it may vary for children).

How much does a myoelectric arm cost?

How much does a prosthetic arm or hand cost? Without insurance, you can expect to pay around $5,000 for a cosmetic prosthetic, up to $10,000 for a functional prosthetic with a hook, and between $20,000 to $100,000 for the latest myoelectric arm technology.

What are myoelectric signals?

Myoelectric sensors are non-intrusive devices that allow the capture of electrical signals from the peripheral nervous system. ... It is based on a physiological principle that indicates that whenever a muscle in the body contracts or flexes, there is a small electrical signal (bioelectric) that produces it.

Do prosthetic limbs hurt?

Even when fitted properly, it takes some time to get used to the sensation of taking weight through your residual limb. While some initial discomfort can be anticipated as you get used to a prosthesis, pain is not an anticipated part of the process.

Why are prosthetics so expensive?

Why prostheses are so expensive

Traditionally, these prostheses are custom made to fit the particular size and need of an individual. ... They have to settle for “dumb” prostheses that don't move and have no functionality. In developing countries, even those can be difficult to afford.

Can you control a prosthetic arm?

Our results are the product of many years of work, and now we can finally present the first bionic arm prosthesis that can be reliably controlled using implanted electrodes, while also conveying sensations to the user in everyday life," continues Max Ortiz Catalan.

Are bionic arms waterproof?

The Hero Arm is splash proof but not waterproof.

How did Winter Soldier get his arm?

Given to him by Hydra after he lost his original left arm falling from Arnim Zola's train in Captain America: The First Avenger, Bucky's metal limb was one of his greatest weapons until he lost it fighting Iron Man in Captain America: Civil War.

Can bionic arms feel?

This allowed people with a prosthetic arm to feel that their fingers and hands were moving. It made the bionic arm feel more like an integrated part of the person's body, the researchers reported.

What is the strongest bionic arm?

Most Advanced Bionic Arm & Hand

Normally, we would have selected the Luke Arm from Mobius Bionics as the top bionic arm, and the Michelangelo Hand from Ottobock as the top bionic hand, but the modular Atom Touch will fill both slots when it is released in 2024.

How are bionic limbs attached?

Bionic arms attach to the body via a customized compression cup with sensors that contact the skin. Bionic arms go a step beyond traditional designs that use body-powered harnesses to move muscles, such as shrugging the shoulders to open and close a prosthetic hand.

What are bionic hands made of?

Fabrication of a prosthetic arm or prosthetic hand relies on two plastic manufacturing methods: injection molding and vacuum forming. Prosthetic limbs are made from plastic polymers, which bond fabric-based layers together to make a prosthesis that is strong yet lightweight.

Did Luke and Anakin lose the same hand?

Anakin got a robotic one because replacement-hand making technology (in-universe) wasn't that good, but film-making technology (in reality) was very advanced. For Luke, he got a realistic hand for the opposite reasons.

How did Luke get a robotic hand?

[Luke Skywalker tests his prosthetic hand. The L-hand 980 was a prosthetic hand model produced by Antilles BioGen (ABG). The model was used by medical droid 2-1B to replace Luke Skywalker's hand after it was lost on Bespin.

What is the Luke arm made out of?

The LUKE Arm

The arm itself is made of mostly metal motors and parts with a clear silicon “skin” over the hand. It is powered by an external battery and wired to a computer. It was developed by DEKA Research & Development Corp., a New Hampshire-based company founded by Segway inventor Dean Kamen.
