For parallel and series resistors?
Daniel Avila In a Series and parallel circuits - Wikipedia

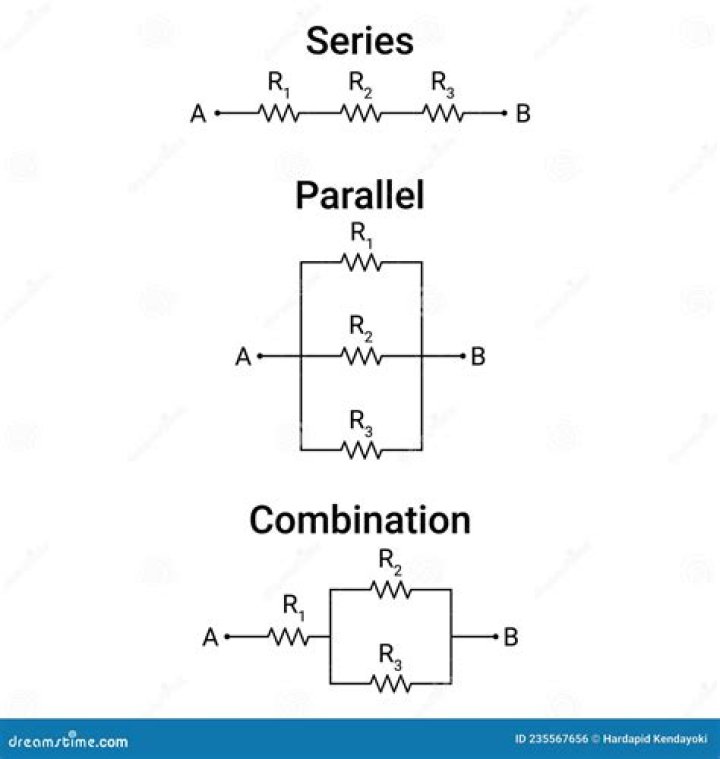

What are the rules for resistance in series and parallel circuits?
For one, the total resistance of a Parallel Circuit is NOT equal to the sum of the resistors (like in a series circuit). The total resistance in a parallel circuit is always less than any of the branch resistances. Adding more parallel resistances to the paths causes the total resistance in the circuit to decrease.
Does resistance increase in series or parallel?
In a series circuit, adding more resistors increases total resistance and thus lowers current. But the opposite is true in a parallel circuit because adding more resistors in parallel creates more choices and lowers total resistance. If the same battery is connected to the resistors, current will increase.
Which resistors are in parallel?
Resistors are in parallel if their terminals are connected to the same two nodes. The equivalent overall resistance is smaller than the smallest parallel resistor.
What are series resistors?
Resistors in Series- Resistors are said to be in series whenever the current flows through the resistors sequentially. ...
- (Figure 6.2.2)
- In Figure 6.2.2, the current coming from the voltage source flows through each resistor, so the current through each resistor is the same.
Resistors In Series and Parallel Circuits - Keeping It Simple!
24 related questions foundHow do you find the resistor in a series?
The trick is to look at the nodes in the circuit. A node is a junction in the circuit. Two resistor are in parallel if the nodes at both ends of the resistors are the same. If only one node is the same, they are in series.
Why does resistance increase in a series combination of resistors?
Resistors in series
In a series circuit, the total resistance across all of the components (the 'net resistance') increases as more components are added. The two resistors have the same current through them. The potential difference across them will be different if they have different resistances.
Why is resistance more in series combination of resistors?
In series combination of resistors, the effective length of the conducting path increase and as such resistance increase as R∝l.
Why is resistance more when resistors are joined in series?
A series circuit can be used to determine the total resistance of the circuit. Essentially, wire resistance is a series with the resistor. It thus increases the total resistance and decreases the current.
What do resistors do in a series circuit?
A resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.
How do you find the resistance of a resistor in series?
In a series circuit you will need to calculate the total resistance of the circuit in order to figure out the amperage. This is done by adding up the individual values of each component in series.
...
To calculate the total resistance we use the formula:
- RT = R1 + R2 + R3.
- 2 + 2 + 3 = 7 Ohms.
- R total is 7 Ohms.
What is the rule for resistance in a series circuit?
Resistance: The total resistance of any series circuit is equal to the sum of the individual resistances.
How do you solve 3 resistors in parallel?
Parallel Resistor Equation
If the two resistances or impedances in parallel are equal and of the same value, then the total or equivalent resistance, RT is equal to half the value of one resistor. That is equal to R/2 and for three equal resistors in parallel, R/3, etc.
How do you solve combined parallel and series circuits?
REVIEW:- To analyze a series-parallel combination circuit, follow these steps:
- Reduce the original circuit to a single equivalent resistor, re-drawing the circuit in each step of reduction as simple series and simple parallel parts are reduced to single, equivalent resistors.
- Solve for total resistance.
Why is resistance less in parallel and series combination?
why is resistance more in series combination and less in parallel combination. Resistance is directly proportional to the potential difference across the terminals of a circuit. In series, the potential difference is greater, thus offering more resistance. ... That is why lesser resistance is offered by the conductor.
What is the relationship between V and R for the series combination?
Resistance is the ability to control the flow of electrons in a circuit and the unit of resistance is ohms. Ohm's law states that V = I R. Thus I =V / R and R = V / I. There are two types of circuits, series and parallel.
Why is resistance less when resistors are joined in parallel?
Answer Expert Verified. When resistances are connected in parallel the current in the circuit gets parallel branches to go from one point to another across which the potential difference is applied. ... So, the equivalent resistance is less when resistors are connected in parallel.
When resistors are connected in parallel the effective resistance will increase or decrease?
When two resistors are connected in parallel, the effective area of a cross-section through which the current can pass, increases. Since, the resistance of a wire is given by i.e., inversely proportional to the area of cross-section. Therefore, any increase in the area of cross-section decreases the resistance.
Why resistance is added in series?
Resistors are said to be connected in “Series”, when they are daisy chained together in a single line. Since all the current flowing through the first resistor has no other way to go it must also pass through the second resistor and the third and so on.
Which type of combination should be used for increasing and decreasing the resistance?
for increasing resistence it should be connected in series and to decrease should be connected in parallel .
Which circuit is series parallel?
In a series circuit, all components are connected end-to-end, forming a single path for electrons to flow. In a parallel circuit, all components are connected across each other, forming exactly two sets of electrically common points.
How do you know if its parallel or series?
If all of the current leaving one resistor enters another resistor, the two resistors are in series. If all of the voltage across one resistor is across another resistor, the two resistors are in parallel. Two resistors on the same path are in series.
What are the 4 types of resistors?
Different Types of Resistors – Fixed, Variable, Linear and Non-Linear Resistors & Applications- Carbon Composition Resistors.
- Wire wound Resistors.
- Thin Film Resistors.
- Carbon Film Resistors.
- Metal Film Resistors.
- Thick Film Resistors.
- Metal Oxide Resistors.
- Cermet Oxide Resistors (Network Resistors)
