18. For a circuit breaker 'break time' is. Answer: (c) opening time + arc duration + resistor current duration.

What is circuit breaker time?

The opening time of a high-voltage circuit breaker refers to the total time that the circuit breaker needs from receiving a trip command (that is, the tripping coil is applied with voltage) to the time the circuit breaker is opened until the three-phase arc is completely extinguished, called the full opening time .

What is the breaking capacity of a circuit breaker?

Breaking capacity or interrupting rating is the current that a fuse, circuit breaker, or other electrical apparatus is able to interrupt without being destroyed or causing an electric arc with unacceptable duration.

What happens when a circuit breaker breaks?

This breaks the continuous pathway of the breaker and renders the circuit inactive. The circuit remains dead until the breaker lever is reset to the ON position, which also re-arms the internal spring mechanism. The circuit breaker or fuse is sized to match the load-carrying capacity of the wires in that circuit.

What is meant by breaker break?

One that breaks, as a machine for breaking up or crushing a substance, such as rock, coal, or plant fibers. 2. A circuit breaker. 3. A wave that crests or breaks into foam, as against a shoreline.

How a Circuit Breaker Works in Slow Motion - Warped Perception - 4K

What is a circuit breaker do?

Breakers are installed in an electrical panel (breaker box) and each circuit is attached to a singular breaker. The breaker will monitor the circuit and in the event of a complication such as an overload, the breaker will immediately shut off that circuit.

How does a circuit breaker operate?

Internally, circuit breakers are basically made up of pairs of metallic contacts, both fixed and moving, in addition to an operating coil. ... As the moving contacts separate, the circuit inside the CB (circuit breaker) opens, interrupting the flow of current and protecting the system from further damage.

Why is my breaker tripping?

Common reasons for your circuit breaker tripping are because of either a circuit overload, short circuit or a ground fault. ... Your circuit breaker has tripped again. Sure, you can just reset the circuit breaker each time it trips.

How many times can a breaker trip?

An electrician is coming to replace the cutoff (containing fuses) with a simple lever cutoff. In discussing this he said that a circuit breaker should not be allowed to trip more than 4 or 5 times before being replaced.

Why does the main breaker keep tripping?

There are a number of reasons why the main breaker might trip. Lightning strikes, power surges from the utility company, or an overload to the electrical panel can all cause the main breaker to trip. ... The problem may involve a short circuit in the main panel, a failed main circuit breaker, or another serious problem.

What is break current?

Breaking current is based on the ability of the contacts to interrupt the current. If the contacts are not able to interrupt the current when they open, the heat energy in the resulting arc will often destroy the device. the breaking current rating is expressed in RMS value of the current.

How do you calculate the break current of a circuit breaker?

Divide the volt-amperage running through the circuit by this voltage. For example, if the transformer runs at 78,000 volt-amperes, divide 78,000 by 1,560, giving 50 amperes. Divide this current by the components' impedance.

What is making and breaking of circuit breaker?

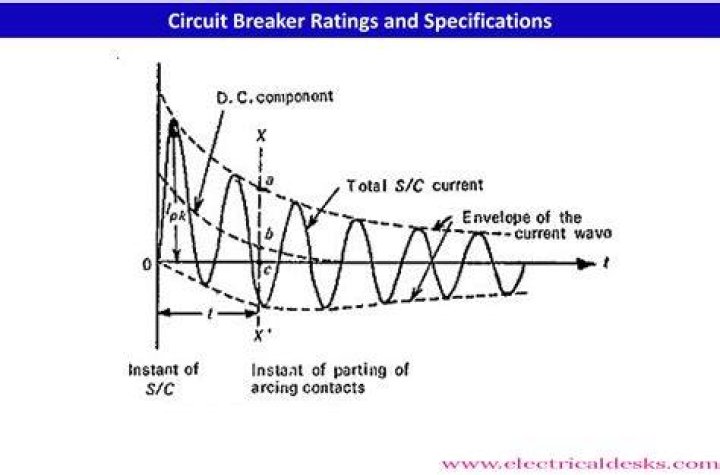

The making current of circuit breaker is the maximum peak value of the current that the breaker can interrupt without any damage if the breaker is closed at fault. The making current of the circuit breaker is always more than the breaking current. ... There are three periods of time after occurrence of the fault.

Which is circuit interrupting device?

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Its basic function is to interrupt current flow after a fault is detected.

What is short circuit breaking current?

Hence short circuit breaking capacity or short circuit breaking current of circuit breaker is defined as maximum current can flow through the breaker from time of occurring short circuit to the time of clearing the short circuit without any permanent damage in the CB.

What is circuit breaker spring?

Spring Cloud Circuit breaker provides an abstraction across different circuit breaker implementations. It provides a consistent API to use in your applications allowing you the developer to choose the circuit breaker implementation that best fits your needs for your app.

Can a breaker trip too many times?

“In actual application, high fault levels are extremely rare (less than 2% of all faults). ... Molded case circuit breakers can be expected to safely clear such faults many times and still be operable.” If it a maximum rated short has caused the breaker to trip more than once it is most likely time to replace the breaker.

How many time can you reset a circuit breaker?

Now, if you happened to plug in several appliances to that circuit AND you know the draw of the total of those appliances is greater then 15 Amps, then, and only then should you reduce the load on that circuit (unplug things), reset the breaker – only once.

How often do circuit breakers fail?

The sensors inside CAFCI, AFCI, or GFCI breakers typically fail in 15 to 20 years, at which point an electrician should replace the breaker. Testing of CAFCI, AFCI, and GFCI breakers should be performed monthly. Testing involves pressing the breaker's TEST button and resetting the breaker when it trips.

How do I know if a circuit breaker is bad?

1. Breaker Doesn't Stay in “Reset” Mode. It is possible the breaker is short-circuiting, but call an electrical professional to check it out. ...
2. Burning smell. ...
3. Hot to the touch. ...
4. Visible damage to the box or outlets. ...
5. Breaker trips frequently. ...
6. Old Age.

How does a circuit work?

An electrical circuit is composed of a source of electrical power, two wires that can carry electric current, and a light bulb. One end of both the wires is attached to the terminal of a cell while their free ends are connected to the light bulb. The electrical circuit is broken when the bulb is switched off.

Where is the circuit breaker?

Circuit breakers are found in your home's breaker box. Breaker boxes are typically found in the garage, basement, hall, utility or storage rooms. If you're having difficulty locating your breaker box, look for the electric meter outside your home. This is usually close to your breaker box for safety/distribution.

Is each breaker a circuit?

What's a circuit? When electricity enters your home, it goes to a circuit breaker box (or fuse box in older homes), where it's divided into a number of circuits. Each circuit is protected by a breaker or fuse.
