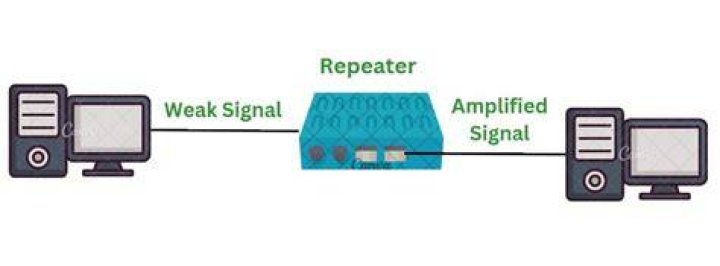

The cable length limit still applies to the cable on each side of the repeater. ... Well, technically, that's not true because the switches themselves function as repeaters. You typically see repeaters as stand-alone devices only when a single cable segment would be more than 100 meters.

Can a switch be used as a repeater?

yes the switch can work as repeater, but you have to take in consideration the delay switch time.

Is switch a multiport repeater?

Switch – A switch is a multiport bridge with a buffer and a design that can boost its efficiency(a large number of ports imply less traffic) and performance. A switch is a data link layer device.

Can you use a switch to extend an Ethernet cable?

Another option of network devices you can use is a network switch. ... So you can use the features of a switch to actually extend your ethernet cable length. If your cable can only reach just a little bit pas the wall then you can connect it to a switch and run another two or three cables to your end devices.

Which is better CAT 5 or Cat6?

The big difference between Cat5 and Cat6 cables is the amount of data that can be sent. Cat6 has a higher bandwidth compared to Cat5. You can compare this with a water pipe: more water can flow through a wide water pipe, should you compare it to a more narrow water pipe.

Routers vs. Switches vs. Access Points - And More

How can I run Cat6 over 100m?

Normal solution : Wire them with Cat6 double-shielded at 80 meters length with repeaters at intervals. Better solution : Run fibre optic in-between and end off with Ethernet Cat6 and hubs on both ends. Unless you have repeaters, it's just not going to work.

Why switch is intelligent than hub?

The reason switches are known as intelligent hubs is because they build address table in hardware to keep track of different hardware addresses and the port to which each hardware address is associated. The reason why they are compared to hubs because a switch, when started fresh, acts just like a hub.

Which device is known as multiport repeater?

An Ethernet hub, active hub, network hub, repeater hub, multiport repeater, or simply hub is a network hardware device for connecting multiple Ethernet devices together and making them act as a single network segment.

Is a bridge a switch?

A Bridge is a device that connects two LANs and controls data flow between them. A Switch is a networking device that learns which machine is connected to its port by using the device's IP Address. Bridges divide collision domain into two parts.

Why repeaters are required for LAN cables?

Repeaters enable two different types of cable segment to be used in a LAN, providing they all operate at the same transmission speed (10 Mbps). Repeaters provide isolation from failures in the cable or attached systems, protecting equipment on other cable segments from the effect of any fault.

Where should repeaters be placed?

The repeater should be located high, away from obstructions, in a central area where it'll do its best job of retransmitting the signals it receives. The external antenna may also be strategically placed for best coverage.

Is switch better than bridge?

Bridge and switch both provide the same functionality but the switch does it with greater efficiency. A bridge connects smaller network segments to form a large network, and it also relays frame from one LAN to another LAN. On the other hand, the switch connects more network segments as compared to the bridges.

Why is a switch better than a bridge?

Firstly, a bridge can connect fewer LAN, while a switch can connect more networks compared to the bridge. Bridge in networking connects two similar networks and manages the flow of network data. ... Switch in networking can perform data transmission between multiple port pairs at the same time.

What layer are switches?

Switches are one of the traffic directors on the network, and traditionally operate at Layer 2. They allow for the connection of multiple devices in a LAN while decreasing the collision domain by employing packet switching.

What is difference between hub and Switch?

KEY DIFFERENCES

A Hub is a networking device that allows you to connect multiple PCs to a single network, whereas a Switch connects various devices together on a single computer network. A Hub operates on the physical layer, whereas Switch operates on the data link layer.

Why hub is not an intelligent device?

A Hub is not an intelligent device, it forwards the incoming messages to other devices without checking for any errors or processing it. It does not maintain any address table for connected devices. It only knows that a device is connected to one of its ports.

What is the difference between switch and a hub Why is the switch called an intelligent hub?

i With a regular hub packets being sent simultaneously collide causing retransmissions and thus delays. A switch on the other hand looks at the destination address and sends the packet to that address on a separate wire so no collision. Hence it is called intelligent hub.

Is hub a Unicast device?

Answer: HUB is a Broadcast device and Switch is a Unicast device.

Which device is known as intelligent?

Explanation: network switch (also called switching hub, bridging hub, officially MAC bridge) is a computer networking device that connects devices together on a computer network by using packet switching to receive, process, and forward data to the destination device.

What is the max distance for Cat 6?

Maximum Cable Segment Distances for Cat6 or Cat6a Cable

In 10/100/1000BASE-T applications, the maximum cable distance of a Cat 6 cable is 100 metres. However, Category 6 cable segment distance drops to a maximum run length of 55 metres when used for 10GBASE-T.

What is the longest you can run Cat 6?

Maximum length

When used for 10/100/1000BASE-T, the maximum allowed length of a Cat 6 cable is 100 meters (328 ft). This consists of 90 meters (295 ft) of solid "horizontal" cabling between the patch panel and the wall jack, plus 5 meters (16 ft) of stranded patch cable between each jack and the attached device.

How do I run Ethernet over 300 feet?

If there is an existing twisted-pair copper or coax cable run, then you can extend your network with a pair of Ethernet extenders. Use one at each end to convert Ethernet to DSL (digital subscriber line) and back again to Ethernet. Extenders can deliver 50-Mbps speeds over 300 meters or about 10-Mbps at 1400 meters.

How do routers operate differently from switches?

While a network switch can connect multiple devices and networks to expand the LAN, a router will allow you to share a single IP address among multiple network devices. In simpler terms, the Ethernet switch creates networks and the router allows for connections between networks.

Are bridges more intelligent than routers?

Routers are more intelligent than bridges. ... Routers operate at the layer 3 (network layer) of the OSI model, while bridges are only at the layer 2 (Data link layer).
