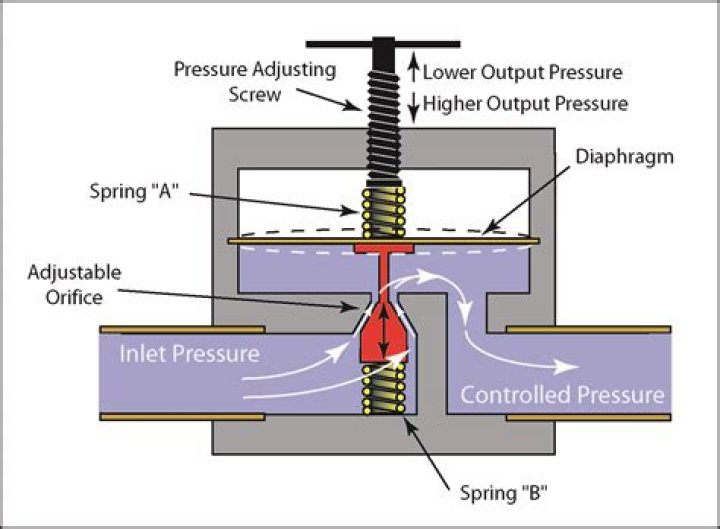

How do pressure reducing valves work? A pressure reducing valve is a valve which takes a high inlet pressure and reduces it to a lower outlet pressure. When it does this under both flow and no-flow conditions, the type of control is known as 'drop tight'.

What does the pressure reducing valve do?

Also called water pressure regulators, water pressure reducing valves are compact, inexpensive valves that perform two functions: They automatically reduce the high incoming water pressure from the city mains to provide a lower, more functional pressure for distribution in the home.

How do I know if my water pressure reducing valve is bad?

1. Low or Fluctuating Water Pressure. ...
2. No Water Pressure. ...
3. Hammering or Vibrating Noises. ...
4. A Leak in your Flower Bed. ...
5. High Water Pressure.

What happens when a pressure reducing valve fails?

The PRV can also fail by allowing high water pressure into homes. Although this won't affect your experience as much as low water pressure, this high pressure is wearing out the plumbing in your home. You may also notice water-hammer. This creates a banging noise in the walls whenever a faucet is quickly turned off.

What is normal water pressure for a house?

Normal psi for a home pipe system is between 30 and 80 psi. While you don't want the psi to be too low, it violates code to be above 80. Instead, you should aim for a psi that's between 60 and 70.

Does a pressure reducing valve reduce flow? - Let's look at high and low demand

Does reducing pressure reduce flow?

A reduction in orifice size results in decreased flow as only so much liquid can pass through the orifice. In all of the above cases, the inlet pressure is constant and the outlet pressure is, effectively, zero (atmospheric) as there is nothing to restrict flow on the exit side of the orifice.

Do I need pressure reducing valve?

If the water pressure level coming into your home from the city exceeds 80 psi, you need a water pressure regulator. Reducing the system pressure 10 to 20 psi can save thousands of gallons a year in the typical home.

Will closing valve reduce water pressure?

The mains shut off valve controls the overall flow of water into your home. However, if the shut-off valve is even partially closed, it can cause a reduction in the mains water pressure to your home. Simply inspecting the mains shut off valve, and ensuring it is fully open can help to restore normal water pressure.

How does a pressure regulator affect flow rate?

Pressure regulators are not designed to control flow rates. Although pressure regulators used in flowing systems inherently affect the flow by controlling the pressure, they are not designed to act as flow controllers. ... Once the pressure reaches the setpoint, the regulator closes and no longer allows flow.

What should a pressure reducing valve be set at?

In some cases, your pressure regulator is set too low and reduces the water pressure too much. The factory setting on a pressure regulator is normally between 45 to 55 psi. However, you may need pressure regulation between 40 and 70 psi to have proper water pressure throughout your home.

Does restricting flow increases pressure?

The same thing would happen in your sprinkler system if you used smaller pipe to increase the pressure. The smaller pipe would restrict the flow of water. The reduced flow would reduce the pressure loss in the pipes, resulting in more pressure.

Does pipe size affect flow rate?

At any given flow rate, flow velocity is inversely proportional to the t cross sectional area of the pipe. Smaller pipes will lead to higher flow speeds; larger pipes, will lead to slower flow speeds.

How do I reduce my flow rate?

1. Throttling the discharge by closing a valve in the discharge line.
2. Controlled bypassing of liquid from the pump discharge back to the suction vessel.
3. Varying the speed of the pump.

How often should you replace a pressure reducing valve?

Make sure you replace your PRV every 4-5 years to avoid problems due to age.

How much does a plumber charge to install a pressure reducing valve?

How Much Does a Pressure Reducing Valve Cost? Pressure reducing valves start at around $50. Having a new pressure reducing valve installed by a professional plumber will probably set you back around $350.

What is the difference between a pressure limiting valve and a pressure reducing valve?

A PLV is only able to reduce the pressure to a set pressure, usually 350Kpa, 500Kpa or 600 Kpa, where as a PRV can be set to a pressure usually raging from 150Kpa to 600Kpa. So the difference is a PLV has no or a set adjustment in the pressure however the PRV does.

Why does pressure decrease as flow rate increases?

Bernoulli's Principle states that as the speed of a moving fluid increases, the pressure within the fluid decreases. The Bernoulli's Principle explains the behavior of an ideal fluid passing through a pipe or enclosed passageway such a pump.

Does higher pressure mean higher flow rate?

Flow rate is the effect. Higher pressure causes increased flow rate. If the flow rate increases, it is caused by increased pressure.

How do I increase water pressure at my house?

Look on the main supply pipe near your water meter for a conical valve that has a bolt sticking out of the cone. To raise pressure, turn the bolt clockwise after loosening its locknut. Keep an eye on the gauge to make sure the pressure is within bounds, then retighten the locknut.

Is 55 PSI water pressure good?

The water pressure in a plumbing system should be between 45 and 55 psi (pounds per square inch). If the pressure rises above 60 psi, it can create problems for the plumbing, including damage to the pipes. In most cases of high water pressure, a professional must analyze the problem and find a solution.

Is 35 psi good water pressure?

Household water pressure typically falls between 40 and 60 psi (pounds per square inch) and anything under 35 psi is considered low. Thanks to the revamped pressure regulator, Nebia 2.0 now works in homes with well-below-average water pressure (as little as 20 psi) while still providing a great shower experience.

Does reducing pipe size reduce flow rate?

In a fluid passing through a pipe, a reduction in the diameter of the pipe can compress the flowing fluid. It flows faster, which increases the flow rate. And if the diameter increases, then the flow rate reduces.

How do you increase water flow rate?

1. Clear the Clogs. ...
2. Open Wide. ...
3. Replace the Regulator. ...
4. Look Out for Leaks. ...
5. Install a Water Pressure Booster Pump.

How do you increase pipe flow?

To change water flow, the opening of a pipe must be adjusted. Changing water pressure is different. To adjust pressure, the diameter or texture of the pipe must be altered using a different regulator/pump or regulator/pump setting.
