Does kirchhoff's law hold?
Emily Dawson With voltages defined as integrals of total electric field, the modern KVL indeed does not hold, because their sum equals minus net electromotive force for the circuit and this emf is arbitrary, depending on how we arrange the integration paths (or wires).
Does Kirchhoff's rule hold?
In circuits on paper, Kirchhoff's law is always true; if the real circuit behaves differently - it means the model on paper is inaccurate, and it can be fixed in this case by adding a transformer for example.
Do Kirchhoff's rules always apply?
Kirchhoff's rules can be applied to any circuit, regardless of its composition and structure. Because combining elements is often easy in parallel and series, it is not always convenient to apply Kirchhoff's rules. To solve for current in a circuit, the loop and junction rules can be applied.
Does KVL hold in changing magnetic field?
Lewin then concludes that KVL does not hold when there's a changing magnetic field. The mathematical reason that he gives is that the magnetic field is non-conservative, and KVL can be derived from Maxwell's equations only when the field is conservative.
Where does Kirchhoff's law fail?
Correct Option: A. Kirchhoff's laws fail in case of non-linear networks.
Does Kirchhoff's Law Hold? Disagreeing with a Master
37 related questions foundWhat are the limitations of Kirchhoff's laws?
Limitations of Kirchhoff's Laws
The limitation of Kirchhoff's both laws is that it works under the assumption that there is no fluctuating magnetic field in the closed loop. Electric fields and emf could be induced which causes the Kirchhoff's loop rule to break in presence of a variable magnetic field.
What is the limitation of Kirchhoff's laws support you answer with a valid reason?
The major drawback of Kirchhoff's law is that it assumes that the closed-loop has no magnetic field in it which is fluctuating. Induction of emf or any electric fields is possible in the circuit. This will eventually cause the current and voltage rule to fail. High-frequency circuits are also affected by KCL.
What is Kirchhoff's loop rule?
Kirchhoff's loop rule states that the algebraic sum of potential differences, including voltage supplied by the voltage sources and resistive elements, in any loop must be equal to zero.
Why KCL and KVL is not applicable at RF level?
Kirchhoff's current law (KCL) ceases to be valid when the electric current charging up wire surfaces ceases to be negligible when compared to current flowing along the wires. This happens when electric current in the circuit oscillates with very high frequency.
What is Kirchhoff's first law?

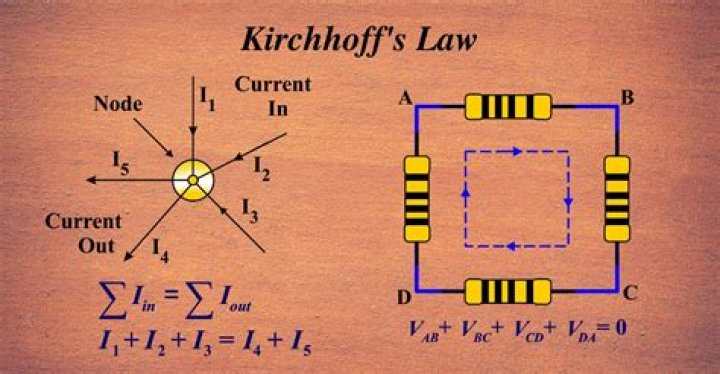

Kirchhoff's first law applies to currents at a junction in a circuit. It states that at a junction in an electrical circuit, the sum of currents flowing into the junction is equal to the sum of currents flowing out of the junction.
What does Kirchhoff's current law say?
Kirchhoff's laws quantify how current flows through a circuit and how voltage varies around a loop in a circuit. Kirchhoff's current law (1st Law) states that the current flowing into a node (or a junction) must be equal to the current flowing out of it. This is a consequence of charge conservation.
Which circuit Kirchhoff's voltage law can be implemented?
We can use Kirchhoff's voltage law when analysing series circuits. When analysing either DC circuits or AC circuits using Kirchhoffs Circuit Laws a number of definitions and terminologies are used to describe the parts of the circuit being analysed such as: node, paths, branches, loops and meshes.
What are the applications of Kirchhoff's law?
Kirchhoff's laws are used to help us understand how current and voltage work within a circuit. They can also be used to analyze complex circuits that can't be reduced to one equivalent resistance using what you already know about series and parallel resistors.
Are Kirchhoff's law applicable for AC or DC?
Kirchhoff's laws are applicable for DC as well as AC circuits. They can be accurately used for DC circuits and low-frequency AC circuits. In the case of AC though, summation of current should be done in vector form or using the instantaneous value for the AC components of the circuit.
Does Kirchhoff's voltage law apply to parallel circuits?
Two components in parallel will have the same voltage across them. We'll make this statement a bit broader and it will become Kirchhoff's Voltage Law.
Can we apply Kirchhoff's law to AC circuits?
Kirchhoff's laws are applicable to both AC and DC circuits (networks). For AC circuits with different loads, (e.g. a combination of a resistor and a capacitor, the instantaneous values for current and voltage are considered for addition.
Why is Kirchhoff's voltage law true?
KVL is true because voltage rises and drops are defined to be gains and losses, respectively, in electric potential energy of a +1\text{ C} charge. ... Therefore, the sum of the voltage rises encountered around the loop equals the sum of the voltage drops around the same loop.
Can you give two applications of Kirchhoff's law in daily life?
# The current of distribution in the various branches of a circuit can easily be found out by applying the Kirchhoff Current law at the different junction points and the nodes in the circuit. # After that Kirchhoff Voltage law is applied to each possible loop in the circuit generates algebraic equation for every loop.
What is the importance of Kirchhoff's law in daily life?
Put another way, Kirchhoff's Laws state that the sum of all currents leaving a node in an electrical network always equals zero. These laws are extremely useful in real life because they describe the relation of values of currents that flow through a junction point and voltages in an electrical circuit loop.
What are Kirchhoff's Three laws?
Figure 3.6: The three conditions that give rise to the three Kirchoff's laws for the creation of a continuous, absorption, and emission spectrum. Like Kepler's laws of planetary motion, these are empirical laws.
How do you verify Kirchhoff's law?
To verify the Kirchoff's laws for the given network with the theoretical calculations. Sum of all currents entering a node is zero. Sum of currents entering the node is equal to sum of currents leaving the node. Sum of voltages around any loop in a circuit is zero.
How do you find Kirchhoff's law using voltage?
Kirchhoff's Voltage Law Example No1- RT = R1 + R2 + R3 = 10Ω + 20Ω + 30Ω = 60Ω
- IR1 = IR2 = IR3 = ISERIES = 0.2 amperes.
- VR1 = I x R1 = 0.2 x 10 = 2 volts.
- VR2 = I x R2 = 0.2 x 20 = 4 volts.
- VR3 = I x R3 = 0.2 x 30 = 6 volts.
Does current split evenly at Junction?
No, it is not always equally split (it often is when you first meet parallel branches for simplicity.)
Can all of the currents going into the junction be positive?
According to Kirchhoff junction rule for circuit analysis, the sum of all the current flowing into the junction must be equal to the sum of all the current flowing out of the junction. ... So, in order to have net current zero at the junction, one of the current should be negative.
