It is found that the mechanical properties of aluminum alloy are affected adversely by hydrogen embrittlement. The hydrogenated counterpart of alloy has a lower degree of ductility relative to the original alloy; however, the plastic flow behavior of material remains virtually unaffected.

Which metal is the most vulnerable to hydrogen embrittlement?

On this basis, ferritic steel has been considered more susceptible to hydrogen embrittlement than alloys with different crystal structures, such as austenitic stainless steels, nickel alloys and aluminium alloys.

Does hydrogen make metal brittle?

However, for metals like steel, aluminum and magnesium - which are commonly used in automotive and energy technology – hydrogen is not quite ideal. It can make these metals brittle; the ductility of the metal becomes reduced. Its durability deteriorates. This can lead to sudden failure of parts and components.

Does stainless steel suffer from hydrogen embrittlement?

Annealed type 304 stainless steel is susceptible to hydrogen embrittlement in tension, Table 3.1. 1.1. The reduction in area (RA) of annealed type 304 stainless steel with either internal or external hydrogen can be as low as 30% compared to 75-80% for material in the absence of hydrogen.

What does hydrogen embrittlement do?

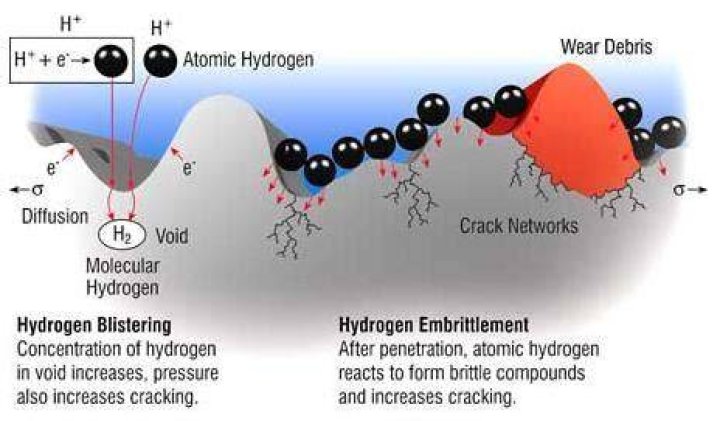

Hydrogen embrittlement is a metal's loss of ductility and reduction of load bearing capability due to the absorption of hydrogen atoms or molecules by the metal. The result of hydrogen embrittlement is that components crack and fracture at stresses less than the yield strength of the metal.

What is hydrogen embrittlement and what can be done to prevent it?

Does hydrogen embrittlement increase hardness?

Steels below these tensile and hardness levels are generally immune to hydrogen embrittlement. ... Increased hardness, most commonly by heat treating, is accompanied by a corresponding decrease in ductility. In simple terms, ductility is the ability of a material to deform under stress rather than crack or fracture.

Does electrolysis make metal brittle?

It's called hydrogen embrittlement and, as its name suggests, it makes metal brittle, and brittle metal fails prematurely. Hydrogen embrittlement isn't isolated to electrolytic processing either; pickling, or acid stripping, causes the same condition.

Is titanium susceptible to hydrogen embrittlement?

Beta titanium alloys do not tend to form hydrides due to their high hydrogen solubility and usually, especially at room temperature and low hydrogen pressures, they are considered to be fairly resistant to hydrogen embrittlement.

Is titanium subject to hydrogen embrittlement?

Titanium alloys are well known to be subject to embrittlement by hydrogen, either as internal hydrogen or as hydrogen in the environment. Most of these embrittlement studies have been conducted at or near room temperature,, and low temperature be.:.

How do you test for hydrogen embrittlement?

A hydrogen embrittlement test is a simple ambient-temperature test performed on both machined specimens and finished fasteners to determine if the material is susceptible to hydrogen embrittlement. It is performed at ambient temperature for 200 hours with a stress equal to 75% of the material yield strength.

What causes hydrogen induced cracking?

Hydrogen Induced Cracking (HIC) is a common form of wet H2S cracking caused by the blistering of a metal due to a high concentration of hydrogen. The blistering damage tends to form parallel to the surface and to the direction of hoop stress.

Is hydrogen magnetic or not?

Hydrogen gas is, in effect, only very weakly magnetic. The reason for this is that hydrogen atoms are not found in isolation. ... Due to this phenomenon, the molecule is only weakly magnetic and is considered to lack a permanent magnetic moment.

Does hydrogen leak through steel?

“Hydrogen can diffuse at relatively high rates in the metal, because it's so small,” Tasan says. “If you take a metal and put it in a hydrogen-rich environment, it will uptake the hydrogen, and this causes hydrogen embrittlement,” he says.

How do you get rid of hydrogen embrittlement?

A common way to reduce the hydrogen in the metal is to perform an embrittlement relief or hydrogen bake out cycle. This is a powerful method of eliminating hydrogen before it begins causing damage to the part. To be effective, bakeout must be performed within 1 to 2 hours after introduction of hydrogen to the material.

How can we prevent hydrogen from cracking?

To prevent hydrogen cracking, apply preheating or increase the preheating and interpass temperature. This will slow down the cooling rate and allow the excess hydrogen to diffuse before being trapped in the weld metal.

How does hydrogen affect titanium?

The titanium alloys whose microstructures contain mostly the α phase, when exposed to an external hydrogen gas environment at around room temperature, will degrade primarily through the repeated formation and rupture of the brittle hydride phase at, or very near, the gas–metal interface.

Does electrolysis work with aluminum?

Electrolysis will work on any oxidized metal, iron, brass, aluminum. The secret is how it is done. If you put aluminum into a strong basic solution such as is typically recommended then you better be ready to pull out the aluminum in a few seconds.

What is embrittlement?

noun. the act or process of becoming brittle, as steel from exposure to certain environments or heat treatment or because of the presence of impurities.

Does zinc plating cause hydrogen embrittlement?

Post-plating baking: Baking the part immediately after plating can reverse the effects of hydrogen embrittlement in most cases. ... Alloying these high-risk metals with ones exhibiting lower hydrogen diffusion rates such as nickel, zinc or molybdenum can be extremely effective in preventing hydrogen embrittlement.

Can liquid hydrogen cause embrittlement?

Hydrogen can have two main effects on materials: Page 2 1°- At low temperature for example when it is stored in liquid form it can have an indirect effect called “cold embrittlement”.

What elements make up hydrogen?

Hydrogen was first recognized as a distinct element by Henry Cavendish in 1766. Composed of a single proton and a single electron, hydrogen is the simplest and most abundant element in the universe.

What metal absorbs the most hydrogen?

At room temperature and atmospheric pressure (standard ambient temperature and pressure), palladium can absorb up to 900 times its own volume of hydrogen.

Who manufactures hydrogen storage tanks?

STELIA Aerospace Composites has produced composite tanks for hydrogen storage ranging from 2.4 to 143 liters and pressures from 100 to 700 bar.

Why is it difficult to store hydrogen?

How do you store hydrogen? Hydrogen is difficult to store because has very low volumetric energy density. It is the simplest and lightest element--it's lighter than helium. Hydrogen is 3.2 times less energy dense than natural gas and 2700 times less energy dense than gasoline.
