You need the SWiM module, a power inserter (for the SWiM module) and the HR24. Depending on the length of the run, you may need some other parts as well (especially if the cable run is very short).

Do I need a power inserter?

Using a separate power inserter has its advantages. First of all it provides enough power that the dish can not only amplify but do other tricks. ... Also, using a single power inserter means that all the receivers don't need to have power supplies big enough to power the dish.

What does a power inserter do?

A power inserter is used to back feed power to the preamplifier/distribution amplifier through one of the RF output ports. This allows the preamplifier/distribution amplifier to be mounted at a location where power is not available. ... The side marked “To Amp” should never be connected to the TV.

Does H44 need power inserter?

If you have an H44, HR44, HR54, or HS17 (Genie 2), it's easier than ever to avoid the clutter. These boxes have the ability to power a SWM dish without a power inserter and that can make your setup a lot cleaner. They supply enough voltage through the line to power the dish easily.

Do you need a SWM for DIRECTV?

It kinda, already is. DIRECTV's SWM system, in use since 2008, allows for a single wire to go to every receiver, client or DVR. Using the older “legacy” system you needed one line for every tuner, meaning a DVR would need either 2 or 5 lines to it.

Satellite Power Inserter Teardown

What does a SWM power inserter do?

DIRECTV SWM systems use a power inserter to make sure there is enough power for all the electronics down the line. Older systems relied on the receivers themselves to power the dish, but SWM equipment does a lot more than a simple dish setup.

Does Genie Lite need power inserter?

The current generation of DIRECTV's Genie, the HR54 4K Genie DVR, makes this problem go away. It can supply the 29 volts needed to power the dish if needed. That means no power inserter.

Does coax need power?

When coaxial cable lines are produced, they only provide one signal to power a singular device. This can be problematic if there's more than one device which requires a signal. Coaxial splitters are used when there's more than one device which requires a signal.

Do coax amplifiers need power?

Each drop amplifier requires a power source. A standard coaxial cable is used to deliver the electrical power through the copper wire inside the cable.

Do TV amplifiers need power?

Masthead amplifiers are connected to a power supply through an uninterrupted coaxial cable. Most domestic tv masthead amps require a 12V DC, or a 5V DC power supply to work, while non-domestic settings, like a block of flats and other communal systems, may best work with an 18V or 24V DC power supply.

What is SWiM ODU only?

SWiM stands for Single Wire Multiswitch, and it's a proven technology from DIRECTV that was first rolled out to customers in 2007. ... If you just have a dish with no multiswitch, there are SWM-equipped dishes that run one wire out instead of four. The addition of a splitter can give you as many lines as you need.

Where does the SWM power inserter go?

Power Inserters for the Single Wire Multiswitch

So the SWM-8 sits outside with the dish, and the power source is installed inside the house. The cable from the SWM goes into the power inserter, and then the power inserter has an output that carries the SWM signal on to the receivers.

What is a DC inserter?

DC inserter provides reliable and cost effective solution to power Reversed Powered Nodes or FTTx Nodes and 5 volt operated Set top box from the customer premises. It works on the principle of Power Over Cable(POC).

Does coax cable have voltage?

If your home is grounded properly the house ground will bear the Load of most of the voltage. Your RG-6 cable(COAX) will show 0.4 VAC. IF any voltage is on the center conductor then you will interfere with return path frequencies.

Can you run power over coax?

Power over Coaxial (PoC) is a standard for video and power transmission over coaxial cable. Power over Coaxial (PoC) is a technology that supports simultaneous transmission of power, high-resolution analogue video signal and OSD control signal over coaxial cable at the distance of up to 400 m.

Does cable have power?

A: Cable and phone wires don't carry current, so it's safe to remove them. However, it's critical not to cut into a power line, as you know.

Do satellite dishes require power?

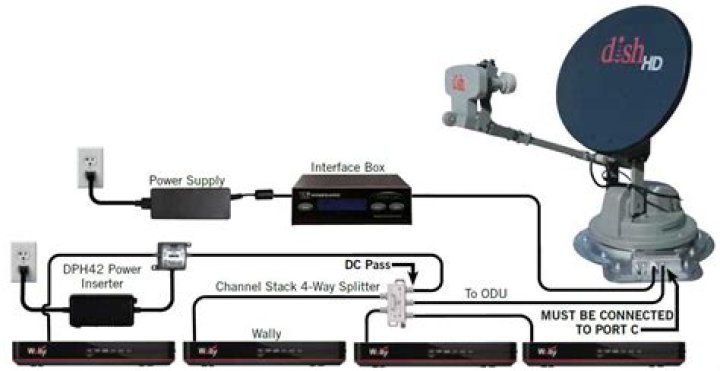

Yes, satellite dishes are frequently powered by DC current over the coax connection. The DC power comes from a "line power inserter" which will attach somewhere to the coax before it reaches the TV's.

What is a Genie Lite receiver?

Genie Lite is the perfect HD receiver. It features the same superior HD picture and. theater-quality sound of our flagship Genie HD DVR. Plus, it easily connects to your home broadband network, unlocking a ton of amazing features right on your TV.

Will directv work with a generator?

The dual voltage of your Directv system will not work right with a generator.

What is DirecTV SWM adapter?

SWM stands for "single-wire multiswitch" and the SWM8 is a single-wire multiswitch that can control up to 8 DIRECTV satellite tuners. That means a single SWM8 can control up to 4 DVRs total (2 tuners per DVR), up to 8 single-tuner receivers total, or a combination (eg. 2 DVRs and 4 single-tuner receivers).

What does the SWM box do for DirecTV?

The DirecTV Single Wire Multiswitch (SWM) is a specially designed piece of hardware that allows a DirecTV satellite dish signal to be split and used with many different tuners/receivers. The usual configurations allow 5, 8, 16, or 32 connections to a single satellite dish.

How do I reset my DirecTV SWiM adapter?

Restart the SWiM device

Unplug the SWiM's power cable. Wait 30 seconds and plug it back in.

What does towards LNB mean?

For connection to the customer's receiver. Towards LNB. • To be connected to the coax cable from the LNB.

What kind of splitter do I need for directv?

What splitter should you add? The most popular choice is this 8-way splitter from AT&T. Not only does it allow a satellite signal to be split, but it also allows the power supply to be connected to the top left (red) port. This one splitter usually gives you all the expandability you may need.
