LED is basically a current-driven device. Because of this, it always requires a resistor connected in series or some other means through which it can limit the current. ... Installing these load resistors (which are also commonly called equalizers) with your brake LED lights will help you avoid hyper flash.

Do all LED lights need resistors?

An LED (Light Emitting Diode) emits light when an electric current passes through it. The simplest circuit to power an LED is a voltage source with a resistor and an LED in series. ... If the voltage source is equal to the voltage drop of the LED, no resistor is required.

Can I put LED bulbs in my brake lights?

LED bulbs can be used as brake lights and even should be a preferred option due to the benefits they provide. LED taillights are brighter, faster to illuminate, and longer-lasting, making them a better option than halogens.

Do car LEDs need resistors?

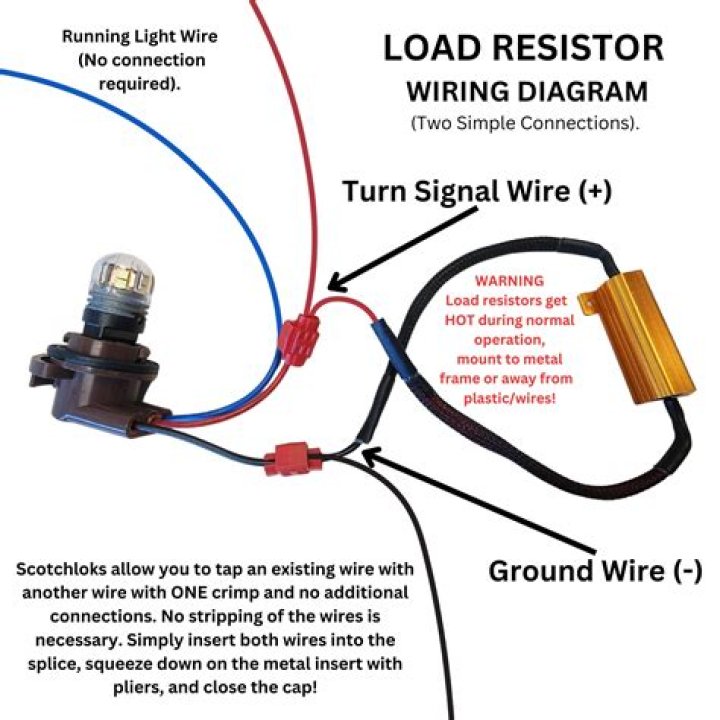

The resistors need to be installed to the wiring of the bulb at the light socket. ... Once the resistors have been installed test them by turning on the turn signals. Hazards will not hyper flash so be sure to test each side individually.

Do 12V LED lights need a resistor?

LEDs can be ran off multiple voltages, but a series resistor is required to limit the current in the circuit. Too much current in an LED will destroy the device. As with all diodes, LED's will only allow current to flow in the direction from the anode to the cathode.

How To Install LED Resistors - Everything You Need To Know | Headlight Revolution

Do LED lights work on 12V?

Quite intuitively, providing more than 12V DC on a 12V LED strip is not a good idea, because you may cause the LED strip to be over-driven, burning out the diodes or causing excessive heat buildup that can damage both the circuit and on-board components.

Do you need load resistor for LED reverse lights?

You need to fit load resistors on each indicator light and possibly stop, tail and reversing lights as well. These load resistors need special mounting to ensure the component does not overheat and cause potential fire hazards.

What size resistor do I need for LED tail lights?

If you only installed 2 LED bulbs, one for each of the tail light/turn signal/brake light for example, then you need 2 6 ohm resistors. The wattage should be 50watts.

Why are LED tail lights illegal?

If you can't see anything through your tail lights, and you can't see your turn signal when it's turned on, your tinted tail lights are illegal. This is for safety purposes. Other drivers need to be able to see when you're braking, coming to a stop, and getting ready to turn.

What happens if you don't use a resistor with an LED?

When hooking up an LED, you are always supposed to use a current-limiting resistor to protect the LED from the full voltage. If you hook the LED up directly to the 5 volts without a resistor, the LED will be over-driven, it will be very bright for a while, and then it will burn out.

What happens if I use the wrong resistor?

The equipment will cease to function in short order either by the resistor itself burning up, or by the heat it generates burning up an adjacent component or possibly the circuit board its mounted on or even foil pattern on the circuit board, or maybe all three.

How do I know what resistor to use with LED?

Determine the voltage and current needed for your LED. We'll use the following formula to determine the resistor value: Resistor = (Battery Voltage – LED voltage) / desired LED current. For a typical white LED that requires 10mA, powered by 12V the values are: (12-3.4)/. 010=860 ohms.

Do you need a load equalizer for LED lights?

A load equalizer uses electrical resistance to simulate the power requirements of traditional halogen bulbs This is required for LED lighting because the original bulbs likely required more energy to work properly, and the low energy draw of an LED bulb may signal to the system that the bulb has burned out.

Is Hyperflash illegal?

Is Hyper Flashing Illegal? The Department of Transportation requires all vehicles' turn signals to flash at a maximum of 120 times per minute. ... These are legal and may be used as they're not going to go past the 120 times/minute mark. However, you will annoy others on the road.

Do LED resistors get hot?

These resistors get very hot when under constant load but for a turn signal, it won't get as hot - still, securing to a metal surface is critical.

What is a load resistor used for?

Load resistors are used for impedance matching, maximum power transfer, to improve output stability and to ensure a minimum of current flow. in switching power supplies, they are essential for the proper operation of the psu.

What is the resistance of a 3157 bulb?

The 3157 bulb resistance is 30 ohm, and since there are three of them in parallel per side, when all are working the flash module should see 10 ohms.. When one bulb burns out, the total circuit resistance goes UP (not down as you would think) to 15 ohms, and that's how it can tell a bulb is out.

Why won't my LED tail lights work?

Battery. The first thing you will want to check is to make sure that there is electricity flowing from the battery. This may seem obvious, but it is one of the most common problems when dealing with LED tail lights that are not working. You can check the electricity flow by simply trying to use your horn.

Do LED lights run on DC power?

In most applications LEDs are driven by a DC power supply. LEDs consume DC current to produce light; with AC current the LED will only be lit when current flow is in the proper direction. AC applied to an LED will cause it to blink on and off, and at high frequency the LED will appear to be lit continuously.

Can I connect a LED directly to a battery?

Never connect an LED directly to a battery or power supply because the LED is likely to be destroyed by excessive current passing through it. resistor is suitable for most LEDs if your supply voltage is 12V or less.

Can LED lights run on DC?

LEDs are usually considered to be DC devices, operating from a few volts of direct current. In low-power applications with a small number of LEDs, this is a perfectly acceptable approach, for example in mobile phone handsets, where power is supplied by a DC battery.
