Do I need Hubcentric Rings or Hubcentric Adapters? Yes, if your wheel center bore is a larger diameter than your hub bore, you absolutely need hubcentric rings. This is because aftermarket wheels are typically designed to fit as many cars as possible unless they are custom-made for your specific application.

What happens if you don't use hub centric rings?

If you don't use hub centric rings, you transfer the weight of the vehicle to the lug hardware, and the wheel studs will break. Fact is, the hub centric rings do not bear a load. The weight of the vehicle is actually supported by the friction between the wheel and its mounting surface on the axle.

Do hub centric rings make a difference?

Hub centric rings keep the wheel centered on the axle during installation. A wheel that is mounted slightly off-center will vibrate while driving. It is possible to center the wheel by following Proper Installation Technique . However, hub centric rings make it easier to get right.

Is hub centric important?

Hub centric rings are rings that cover the spacing between the center bore of an aftermarket wheel to the hub of the vehicle. Hub rings are important because they secure the wheel in place and help prevent any type of vibration issue.

Do wheels have to be hub centric?

All original equipment manufacturer (OEM) rims are hub-centric, and it's this contact point (between the hub and the center hole of the rim) that carries the weight of the vehicle. The wheel studs or lugs are designed to resist lateral forces that are experienced when the vehicle is cornering.

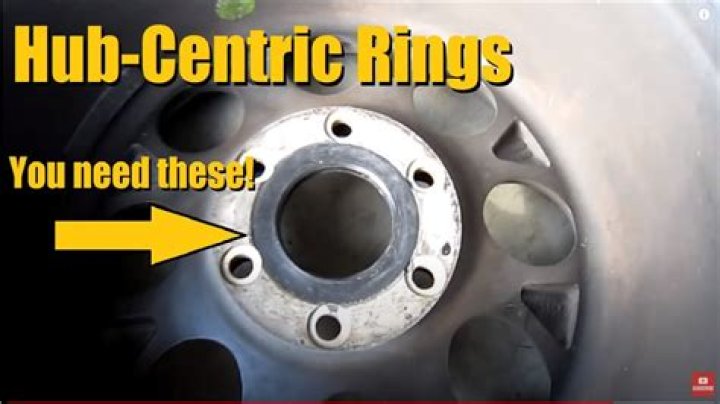

DO YOU NEED HUB RINGS? - HUBCENTRIC RINGS EXPLAINED

How do I know if my rims are hub centric?

(See figures below.) The easiest way to tell the difference between the two designs is to look at the hub of a hub and wheel assembly. If the hole in the center of the wheel fits snugly against the hub, then it is hub-centric. If there is a gap between the center hole of the wheel and the hub, then it is lug-centric.

Are Hubcentric spacers safe?

Hub-centric bolt-on wheel spacers work the same way as your regular wheels do and are completely safe to put on your vehicle. This design bolts onto your hub and slide over the wheel studs, but they also have a lip that fits around your vehicle's hub.

What hub rings do I need?

The size of the Hub Centric Rings you need depends on two things: the centre bore of your rim or "Wheel Center" (the Outer Diameter of the Hub Ring) and the diameter of your car's wheel hub or Vehicle Hub (the Inner Diameter of the Hub Ring). You need both of these measurements to order Hub Rings.

Does center bore size matter?

Therefore, in order to fit the new wheels correctly, it is important that the car's wheel hub size perfectly matches the wheel's centre bore. ... On the other hand, if the center bore is larger than the diameter of the hub, the wheel can be fitted, but unwanted diameter differences will be problematic.

What size hub rings do I need?

The size of the centric rim depends on two things: the center bore of the rim and the outer diameter of the car's wheel hub. For example, if the diameter of the wheel hub is 72.6 mm, and the wheel center bore is 74.1 mm, a centric ring with a diameter of 1.5 mm is needed in-between, so the right size is 74.1 - 72.6 mm.

Do you need hub centric rings Reddit?

You only need them for flat seat wheels. It depends on if the wheel is lug centric or hub centric. If it's hub centric, you need them. If it's lug centric, it's a good idea, but you don't need them.

How important is the center bore on a wheel?

The centerbore of a wheel is the machined opening in the center of the wheel that centers the wheel properly on a vehicle. It is important for a wheel to be "Hub Centric" because it will reduce the chance of vibration.

Will a 5x114 3 fit a 5x115?

If you take a wheel with a 5x115 bolt pattern it will fit a car with 5x114. 3 and vice versa. As long as you get hubcentric rings you should be fine.

Is it bad to drive without hub centric rings?

Yes, if your wheel center bore is a larger diameter than your hub bore, you absolutely need hubcentric rings. This is because aftermarket wheels are typically designed to fit as many cars as possible unless they are custom-made for your specific application.

What is the purpose of hub centric rings?

Hub-centric rings fill the gap between the wheel's center bore and the vehicle hub for vehicles that are lug-centric. This aligns and centers the tire and wheel assembly on the vehicle, helping to minimize vibration. Note: Hub-centric rings don't carry any load and are not required for a secure installation..

Do I need to use spigot rings?

It is highly recommended that you buy a set of spigot rings before setting out on the road with your brand-new alloy wheels, despite what some internet driving enthusiasts say. Without them, wheels can be incorrectly mounted onto the hub, causing vibrations and wobbling whenever you drive.

Can the Centre bore be bigger?

Re: centre bore too big = dangerous? Yeah as long as you don't get a vibration, you should be alright. As soon as it starts to vibrate, it's dangerous. You could also get hubcentric rings pretty cheap.

Are spigot rings safe?

Spigot rings are one of the most important products that any car enthusiast can buy, and will mean the difference between a perfectly secure wheel and a bumpy ride. They are designed to snugly hold your aftermarket alloy wheels in place and will ensure comfort and, above all, a safe driving experience.

How tight should hub centric rings be?

The most important thing is the tightness of the fit of the wheel on the hub. Whichever one gives a tight fit that doesn't allow any movement of the wheel. My hubcentric rings fit very snug to the wheels, but are a close/accurate fit to the hubs.

Do fuel wheels come with hub centric rings?

Fuel Wheels do include hub centric rings on most of the wheels they offer but not all of them. In cases where Fuel Offroad Wheels will include the hub centric rings they will be provided in the common sizes mostly for 6 lug applications.

Why are wheel spacers illegal?

Re:Why are wheel spacers illegal? they add extra load to the wheel studs. lots of extra load. normally the wheels are driven by the contact of the two surfaces.

What is a Hubcentric spacer?

Hub centric wheel spacers mean wheel spacers with small rings of metal made with specific diameters to fit the wheel hub, transforming a lug-centric wheel into a hub-centric one. ... This allows for creating a snug connection between wheel and axle hub, which is no gap, no high-speed vibration.
