If offset must be substantially different, avoid using more positive offset at all costs. If the new wheels are wider, backspacing must be calculated. The offset on the new wheels may need to be less to counteract the extra width.

Does wheel offset have to be exact?

If you decide to change your wheels, offset is a very important factor to consider. If you select an aftermarket wheel with the exact same offset, you will always have the exact same scrub radius. Suspension and handling properties will not change. ... If the wheel is too much wider, it will not fit.

Can you run different offset?

Different offsets are fine... Different width isn't because you affect the tire diameter with wheel size and diameter. AWD system requires the same diameter of tire front and back, left and right, meaning you need to use the same size tire and the same width wheels. Offset is just like using a spacer, nothing else.

What happens if you change wheel offset?

On most cars, changing offset by just 5 mm is enough to notice a change in the car's handling because it changes scrub radius by the same amount, and that might already be only a few millimeters. ... The only way to know for sure how much the new offset will affect scrub radius is to put the car on an alignment rack.

Can different wheel offsets affect the alignment?

Changing wheel size/offset will not affect the settings as they are, the wheels are aligned to the vehicle dependent upon the suspension design, which is in turn designed usually for a specific size and offset tire/rim combination and handling characteristics.

Wheel Rim Offset Explained

Do I need an alignment after replacing rims?

A wheel alignment isn't necessary when you have new tires installed, but it's a really (like, really) good idea. An alignment helps ensure that all four tires are correctly angled with each other and the road. ... A wheel alignment can help you get more miles out of a new set of tires.

How critical is wheel offset?

Proper offset assures your new package has enough clearance so nothing rubs against the suspension, brakes or vehicle body (like fenders, bumpers and mud flaps). It's also important for driving safety, since the wrong offset can reduce vehicle stability or interfere with braking.

How much wheel offset is ok?

If the new wheels are the same width, the new offset should ideally be within 5mm of the old offset in either direction. If offset must be substantially different, avoid using more positive offset at all costs. If the new wheels are wider, backspacing must be calculated.

Is 10mm offset a big difference?

10mm isn't a huge amount. On some cars it makes little difference. Tough you say. But if you want exact fit...see if the dealer still make it right.

Is too much negative offset bad?

Too much negative offset (the wheel sits too far outwards from the car) can also contribute to poor handling due to additional stresses on the suspension components. The steering wheel can flick back in hard cornering causing unstable handling and a possible accident.

Are wheel spacers safe?

Are Wheel Spacers Safe to Use? Because a vehicle's weight is not sustained by its wheel studs, the use of wheel spacers is generally considered to be safe. A vehicle's wheels are actually held to their corresponding hubs with a clamping force that is achieved through the tightening of each wheel's lug nuts.

Does negative offset cause rubbing?

The negative offset would push them out past the fenders but you don't have enough lift you prevent rubbing on the wheel wells, to go this way you would need to trim.

Does wheel width affect offset?

If you are changing the width of the wheel, the offset equation changes completely and you need to reevaluate the offset. So here you go. Since the offset is now CLOSER to the center of the wheel than it was before, this PUSHES THE OUTSIDE OF THE WHEEL 10mm FURTHER out from where it was sitting before.

Do spacers add or subtract offset?

Yes, they change offset. If you have 40mm offset wheels, a 10mm spacer would make them 30mm. This why you should ALWAYS buy a higher numerical offset when you have any doubts. A 50mm offset can become a 45mm with spacers, but until someone invents an anti-matter spacer, it isn't going to happen the other way around.

Will 0 offset wheels stick out?

If you install a wheel that is 8.5 inches wide with a zero offset and a tire that is 295 mm (11.61 inches) wide, the 8.5 inch wheel would stick out 1/2 inch more than the 7.5 inch wheel while the edge of the 295 mm wide tire would stick out 15 mm (0.59 inches) more than the 265 mm wide tire did.

Do positive offset wheels stick out?

Does positive offset stick out more? The more positive offset you have the further the wheel is going to be in from the fender. The more negative offset you have the further the wheel is going to stick out. Zero offset is your center line.

Is negative offset bad for your truck?

If the offset is negative you will get more aggressive strain in return. It will help in increasing the steering wheel back with kick along with placing additional stress on the vehicle suspension. ... It will greatly affect the wheel rub which will damage the flange located in the inner part.

How far does offset stick out?

According to this thread the offset on the OEM 20's should be 19.04mm. If you keep the rim width the same, a -12 will stick out 1.2205" farther. 0 offset will get you 0.748" farther out.

What is 12mm wheel offset?

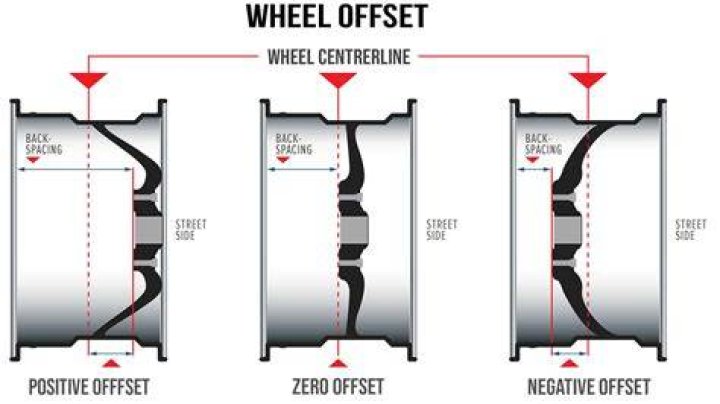

The offset of a wheel is the distance from its hub mounting surface to the centerline of the wheel. ... A wheel with a -12mm offset would have a hub mounting surface 12mm inside of the wheel centerline, or closer to the back side of the wheel lip.

What does 30mm offset mean?

A stock wheel, no matter what OEM manufacturer, is going to run a +high offset, typically in the +30mm to +40mm range. This allows the wheel to “suck-in” under the vehicle more, keeping your center of gravity under the cockpit and reducing overall machine width.

What is better negative or positive offset?

If your offset is too positive, you risk the inside of the tire hitting your suspension. To fix this, bring the offset down, so it's closer to zero. This moves the tire out. If your offset is too negative, then the outside of the tire will rub on the car's body and fenders.

What is a 10mm offset?

Well, 25.4mm is equal to 1 inch. So 3/8" is 10mm.

What is wheel offset 40?

With the declared positive offset of 40, the wheel's mounting pad is located 40mm from the center line, towards wheel's front face, being 40mm from the center line position which is at 88.9mm.

What does et stand for on wheels?

Offset is usually stamped or engraved into the wheel and is measured in millimetres of 'ET' [ET is the short form of the German word 'Einpresstiefe' which literally translates as 'insertion depth'] Positive Offset wheels have their mounting face toward the front face of the wheel.
