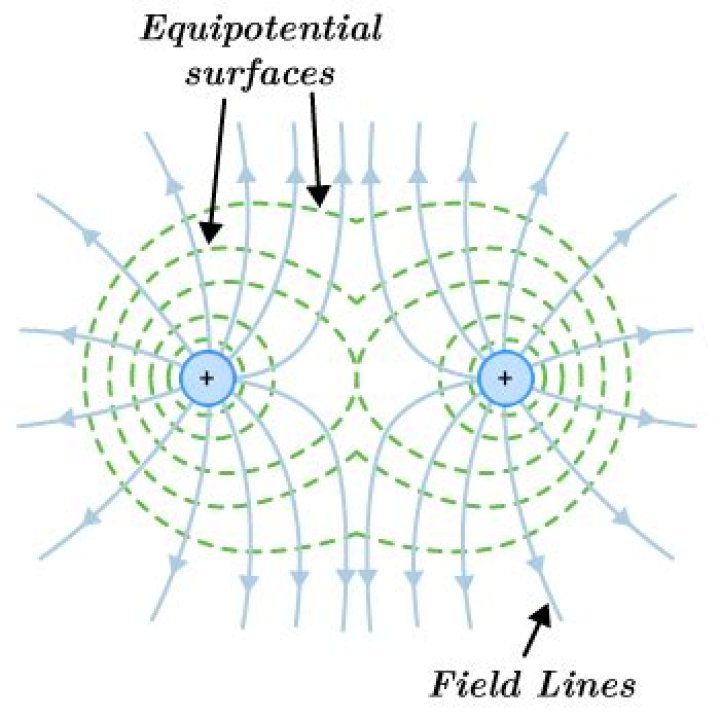

Equipotential lines at different potentials can never cross either. This is because they are, by definition, a line of constant potential. The equipotential at a given point in space can only have a single value. ... Note: It is possible for two lines representing the same potential to cross.

Can two different equipotential intersect one another Why or why not?

Can two different equipotentials intersect one another? Why or why not? No they could not because potential lines are parallel and always go from high potential to low potential. E=deltaV/deltaX equal zero.

Can two equipotential lines cross two electric field lines?

It is not possible for two different equipotential lines or two electric force lines to cross because equipotential lines has fixed values by definition. If they were to cross then it would create two different values which is meaningless.

Can equipotential surfaces touch or intersect?

Two equipotential surfaces can't intersect. The direction of the electric field at any point on an equipotential surface is perpendicular to the surface at that point.

Do equipotential surfaces and electric field lines cross?

An equipotential surface is a three-dimensional version of equipotential lines. Equipotential lines are always perpendicular to electric field lines. The process by which a conductor can be fixed at zero volts by connecting it to the earth with a good conductor is called grounding.

can equipotential lines cross eachother/Can equipotential lines intersect eachother....

Is it possible for two different electric field lines to cross explain hint remember field lines have a direction?

Electric field lines cannot cross. If they did, they would be telling you that the force on a charge at that location would point in two different directions, which does not make any sense at all. ... Note: It is possible for two lines representing the same potential to cross.

Why do electric field lines do not cross each other?

Electric field lines always point in one direction, at any point. When two lines intersect each other, tangents are drawn at that point indicating two directions of electric field lines, which is impossible therefore electric field lines cannot cross over each other.

Can two equi potential surfaces intersect explain?

No, it is not possible for two equipotential surfaces to intersect. This is because if two equipotential surfaces intersect, then there will be two values of potential at the point of intersection, which is not possible.

Are equipotential lines always closed?

Equipotential lines in the cross-sectional plane are closed loops, which are not necessarily circles, since at each point, the net potential is the sum of the potentials from each charge.

Can magnetic field lines cross each other?

Magnetic field lines can never cross, meaning that the field is unique at any point in space. Magnetic field lines are continuous, forming closed loops without beginning or end.

What is the relationship between equipotential lines and electric field?

Equipotential lines are always perpendicular to the electric field. In three dimensions, the lines form equipotential surfaces. Movement along an equipotential surface requires no work because such movement is always perpendicular to the electric field.

When can electric field lines cross?

Field lines can never cross. Since a field line represents the direction of the field at a given point, if two field lines crossed at some point, that would imply that the electric field was pointing in two different directions at a single point.

How are magnetic field lines different from electric field lines?

The electric field line induces on a positive charge and extinguishes on a negative charge, whereas the magnetic field line generates from a north pole and terminate to the south pole of the magnet. The electric field lines do not form a loop whereas the magnetic field lines form a closed loop.

Can electric field lines form closed loops?

Since electric field lines originate and terminate on charges of opposite polarity, electric field lines can never form closed loops as to form a closed loop, the electric field lines must originate and end at the same charge.

Can equipotential surfaces be imaginary spheres?

They can be imaginary spheres.

When equipotential lines are closer together?

When lines are close together, the slope is steep, e.g. a cliff, just as close equipotential lines indicate a strong electric field. Lakes are at the same elevation, in the same way conductors are at the same potential. The figure to the left shows equipotential lines.

How do you EVD?

The relationship between V and E for parallel conducting plates is E=Vd E = V d . ... For example, a uniform electric field E is produced by placing a potential difference (or voltage) ΔV across two parallel metal plates, labeled A and B.

Why are equipotentials the same distance apart?

We draw equipotential surfaces that connect points of the same potential, although in two dimensions these surfaces just look like lines. ... The difference in potential between neighboring equipotentials is constant, so the equipotentials get further apart as you go further from the charge.

Can two Equipqential surfaces intersect each other two ways QP Metricq are located when moving a point p7 0 0 to Q p <UNK> <UNK>Q 3?

(i) No, if two equipotential surfaces intersect then at the point of intersection two tangents can be drawn and there will be two directions of electric field intensity which is not possible. (ii) Since both the points are in the equatorial line of the dipole and V = 0 at every point on it, work done will be zero.

Why equipotential surfaces are not equidistant?

The equipotential surface is not at an equal distance because the electric field due to a charge is not constant. The electric field is inversely proportional to the square of the distance of the point from the charge and electric potential is inversely proportional to the distance of the point from the charge.

Can two equipotential surfaces Interefcting two ways QAND QICE locations at 0 0 A metrica respectively how much work is done in moving a test charge from point P 7 0?

Answer: (i) No, two equipotential surfaces cannot intersect each other because two normals can be drawn at intersecting point on two surfaces which give two directions of E at the same point which is impossible.

Do electric field lines exist?

Electric field lines never intersect. In an uniform electric field, the field lines are straight, parallel and uniformly spaced. ... If the electric field in a given region of space is zero, electric field lines do not exist. The tangent to a line at any point gives the direction of the electric field at the point.

What does q1 q2 signify in electrostatics?

Given that the charge q1, as well as the other charge q2, is equal to zero. The equation indicates that one charge is positive and the second is negative. The magnitude of both charges is equal. This means the two given charges on the system in totality will account for zero.

Why do electric field lines not form closed loops?

If the electric field lines form a closed loop, these lines must originate and terminate on the same charge which is not possible because electric field lines always move from positive to negative. ... Therefore, we say electrostatic field lines never form closed loops.

Is it possible for the electric field between two positive charges?

Is it possible for the electric field between two positive charges to equal zero along the line joining the two charges? Yes, regardless of the magnitude of the two charges.
