Most aluminum casting can be readily welded but die casters take into account two aspects to determine the casting's joinability. ... Other casting alloys such as AlMg 535.0 are not heat-treatable, but they can be welded using filler alloy 5336 serving as the filter.

Can cast metal be repaired?

Metal stitching is the most widely used, accepted and successful method for repairing cracks and attaching new pieces to repair cast iron parts. ... Fusion welding involves re-casting areas of the part by melting a deep puddle and adding molten filler iron.

Does Die Cast mean metal?

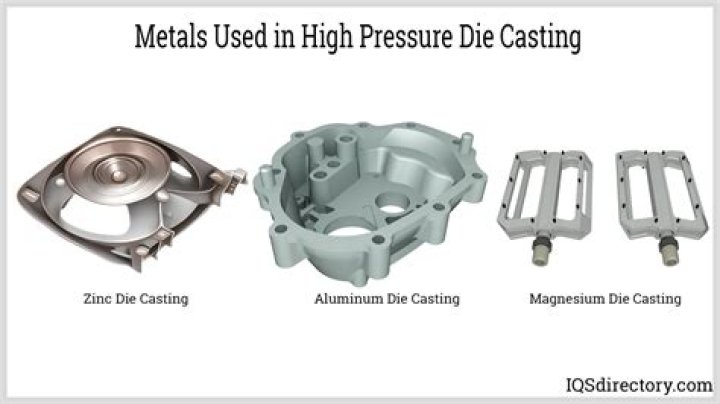

Die casting is a metal casting process that is characterized by forcing molten metal under high pressure into a mould cavity. ... Most die castings are made from non-ferrous metals, specifically zinc, copper, aluminium, magnesium, lead, pewter, and tin-based alloys.

Is die cast better than steel?

In addition, die casting is much more efficient, allowing for the production of many copies of the same part in a short amount of time. Also, you can produce much better-defined and more refined parts through die casting than you can with metal forging.

How accurate is die casting?

Zinc die casting can produce components with a high degree of accuracy and volume. More often than not this rivals machining tolerances and can be used to cast closer tolerances than any other metal or moulded plastic. Due to this, there are no other processes that can easily achieve the same net shape performance.

TFS: Cast Aluminum Weld Repair

Can you weld cast aluminum with a MIG welder?

TIG welding cast aluminum should always be done with pure argon gas, not an argon/CO2 mix, as is common with MIG welding. For welds needing deeper penetration, an argon/helium mix is recommended.

Can u stick weld cast aluminum?

Yes, it is possible to weld aluminum with a stick welder. Since it can be messy, the best methods are: AC TIG.

Can you solder diecast metal?

Depends on the die-cast metal grade and type, but assuming Mazak, or Zamak, (zamac), then, yes, it will solder with ordinary tin lead solder, and an acid flux. But, most people have really extreme difficulty getting it to work, because not enough heat is used, and not the right type of flux.

Can you weld or solder white metal?

Often, the oxyacetylene flame or plasma cutting is too hot for white metals, as such, select a very small tip. Alternatively, go for a low-temperature solder or look for a superalloy. When using the torch, be extra careful as the spelter can melt and heat up to melt the solder.

Does JB Weld work on cast iron?

Purchase a tube of epoxy putty such as JB Weld or Quick Steel at your local hardware store. These types of epoxies act as glue that will adhere to cast iron, filling the crack with a safe seal.

Can cast iron be welded or brazed?

Cast iron is used for water pipes, machine tool castings, transmission housing, engine blocks, pistons, stove castings, etc. The metal can be brazed or bronze welded, gas and arc welded, hardened, or machined. In terms of limitations, the cast iron must be preheated prior to welding. It cannot be worked cold.

Can I MIG weld cast iron?

Although cast iron can be welded with the MIG process and specialised flux-cored electrode wires, the resulting welded joint won't be as strong as with MMA arc welding.

How hard is it to weld cast aluminum?

Cast aluminum welding is sometimes difficult because castings have impurities. Oil soaked castings like crankcases from motorcycles, machinery parts, or even cookware, can give you fits. As soon as you strike an arc, you can see crap boiling to the surface.

Can you fix broken cast aluminum?

You can actually use Aluminum braze to repair cracks, holes, leaks, rivets, broken ears, threads or fabricate aluminum, cast aluminum, and cast iron quickly, easily, and stronger than new. It's not hard at all. ... The melting point of the brazing filler metal is relatively close to that of the material being joined.

Can you solder 2 pieces of metal together?

Here is the short video to show you the basics of soldering two pieces of metal together. After your pieces have been soldered, let your metal cool. Once it has cooled, scrape off any excess solder beads. And you are finished!

How do you fix broken metal without welding?

Another option for gluing metal is Loctite Epoxy Weld Bonding Compound. A convenient alternative to welding, it's the strongest solution for bonding most metals, including iron, steel, aluminum, brass, copper, and pewter.

How strong is J-B Weld?

J-B Weld™ has a tensile strength of 5020 PSI and sets to a hard bond overnight. It can withstand temperatures up to 550ºF when fully cured.

What are the disadvantages of die casting?

• Not applicable for high melting point metals and alloys (eg. steels)
• Large parts can not be cast.
• High die cost.
• Too long lead time.
• Some gases my be entrapped in form of porosity.

Which is better sand casting or die casting?

Sand Casting Advantages

Any high volume job would fall under the die casting category, based on the quick turnaround time this process offers. For a job that requires a strict budget that will be producing larger pieces and parts, such as a furniture maker, sand casting would be ideal.

Can steel be die cast?

Most die cast parts are made from non-ferrous metals like zinc, aluminum, and magnesium. Investment casting is capable of casting cast those metals along with ferrous metals, including stainless steel. If you are looking to use a non-ferrous material, both processes offer comparable features.
