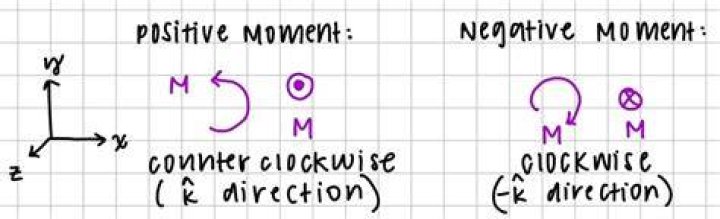

By convention, the clockwise moments are taken as negative and the anticlockwise moments are taken as positive.

What are clockwise moments?

Moments act about a point in a clockwise or anticlockwise direction. The point chosen could be any point on the object, but the pivot - also known as the fulcrum - is usually chosen. The anticlockwise moment acts downward on the left, and the clockwise moment acts downwards on the right.

What is the sign convention for clockwise and anticlockwise moment?

The convention is that: clockwise moments are positive. anti-clockwise moments are negative.

What is the sum of clockwise moments?

The Principle of Moments

If an object is balanced, the total clockwise moment about a point is equal to the total anticlockwise moment about the same point. This is called the Principle of Moments. Total clockwise moment = Total anticlockwise moment.

Is a clockwise moment positive or negative?

If a moment is moving ANTICLOCKWISE it is considered a POSITIVE moment. If a moment is moving CLOCKWISE it is considered a NEGATIVE moment.

How to determine clockwise and anti clockwise moment?

How do you calculate moments?

1. The Moment of a force is a measure of its tendency to cause a body to rotate about a specific point or axis. ...
2. The magnitude of the moment of a force acting about a point or axis is directly proportinoal to the distance of the force from the point or axis. ...
3. Moment = Force x Distance or M = (F)(d)

What do you mean by clockwise and anti clockwise moments What are the signs assigned to them?

As a matter of convention, an anticlockwise moment is taken as positive and a clockwise moment is taken as negative. The direction of a moment depends upon the axis of rotation with respect to which you are measuring the turning effect.

What do you understand by the clockwise and anticlockwise moment of force when is it taken positive?

If the effect on the body is to turn it clockwise, moment of force is called the clockwise moment and it is taken as negative, while if the effect on the body is to turn it anticlockwise, moment of force is called the anticlockwise moment and it is taken as positive.

What does clockwise mean?

: in the direction in which the hands of a clock rotate as viewed from in front or as if standing on a clock face. Other Words from clockwise Example Sentences Learn More About clockwise.

Is clockwise left or right?

Clockwise involves a turn to the right, following the direction of the hands of a clock. It is a negative rotation direction. Anticlockwise involves a turn to the left, against the direction of a clock's hands.

Why are clockwise moments considered negative?

Clockwise moments are considered negative when summed with counterclockwise moments because they are opposites of each other, but also because counterclockwise moments are positive since when acting upon an object, they move the object up on the Y-Axis.

Why is anti clockwise moment positive?

This is because of the right hand screw rule. If u move ur fingers in anti clockwise direction the thumb points upwards indicating positive direction. If u move ur fingers in clockwise direction the thumb points downwards indicating negative direction.

What is meant by counter clockwise direction?

: in a direction opposite to that in which the hands of a clock rotate as viewed from in front.

When the clockwise moment on the left of the section or anticlockwise moment on the right to the section is considered as?

Bending moment is said to be positive (sagging) moment at a section when it is acting in an anticlockwise (ACW) direction to the right and negative (hogging) moment when acting in a clockwise (CW) direction (Figure 4.14).

Is anti-clockwise and counterclockwise the same?

Clockwise motion (abbreviated CW) proceeds in the same direction as a clock's hands: from the top to the right, then down and then to the left, and back up to the top. The opposite sense of rotation or revolution is (in Commonwealth English) anticlockwise (ACW) or (in North American English) counterclockwise (CCW).

Which way is anti-clockwise answer?

counter clockwise the is rotation or movement of an object which is in the opposite direction of any clock. When we see from the top, the circular rotation moves to the left, and from the bottom rotation moves to the right. Answer: It is from left to right pattern i. e. in the opposite of rotation of clock.

What is meant by clockwise moment and anticlockwise moment?

Solution: When the movement caused by the moment of force is in clockwise direction, it is a clockwise moment of force. When the movement caused by the moment of force is in anti-clockwise direction, it is an anticlockwise moment of force.

What is the principle of moments?

The Principle of Moments states that when a body is balanced, the total clockwise moment about a point equals the total anticlockwise moment about the same point. Equation. Moment =force F x perpendicular distance from the pivot d.

What is an applied moment?

Applied Moment (M_#) Applied moment (M) is a force couple that creates a torque, a twisting force, at a point along the beam.

Which type of moment of force is taken as positive?

Answer: A moment applied to the body is positive if it tries to turn the body in a counter-clockwise direction and negative if it tries to turn the body in a clockwise direction.

What means negative moment?

A bending moment that produces compression on the bottom side of a beam and tension on the top side.

Can the moment of inertia be negative?

The polarity of Moment of Inertia

Values for center of gravity can be either positive or negative, and in fact their polarity depends on the choice of reference axis location. Values for moment of inertia can only be positive, just as mass can only be positive.

Is left hand rotation clockwise?

Left-handed coordinate system

Positive rotation is clockwise about the axis of rotation.
