drop forging, Process of shaping metal and increasing its strength. In most forging, an upper die is forced against a heated workpiece positioned on a stationary lower die. If the upper die or hammer is dropped, the process is known as drop forging.

What is drop forging used for?

In principle, drop forging is the most widely used forging method. It is used, for example, to manufacture planes, ships or car parts as well as in the design of various industrial products. In addition to cold, hot and flat forging presses, drop forging hammers are also used for this purpose.

What is the difference between forged and drop forged?

Striking a piece of hot metal with a hammer is forging, and blacksmiths have been doing this for centuries. ... Drop forging - Hammering hot metal into dies. Press forging - instead of forcing hot metal into a die with a hammer blow, it is pressed into the die with hydraulic pressure.

Is drop forged better?

Drop forgings are more reliable,less costly.

Because hot working refines grain pattern and imparts high strength, ductility and resistance properties, forged products are more reliable. And they are manufactured without the added costs for tighter process controls and inspection that are required for casting.

What are the advantages of drop forging?

• The production efficiency is higher. ...
• Complex shaped metal parts can be forged with this process, and the distribution of metal flow line is more reasonable. ...
• The size of drop forgings is accurate, we can also achieve better surface quality, and smaller machining allowance.

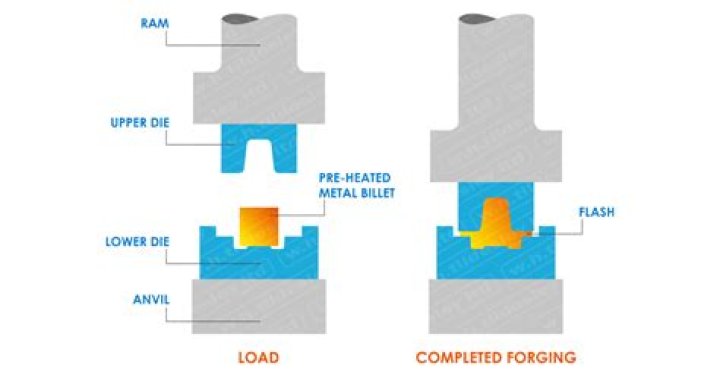

Drop Forging Process

Is drop forging expensive?

Cost Benefits

Customers often assume that the initial tool cost required for near net shaped forging is prohibitive. In fact, forging dies and tools are quite simple in construction and are relatively low cost, making them viable even for jobs with low production quantities.

What are the disadvantages of drop forging?

Disadvantages of Drop Forging:

(1) Die preparation is a costly process. (2) Die impression requires a good skill of work. (3) Die maintenance is costly.

What is the difference between hammer forging and drop forging?

Drop Forging – With drop forging (also called hammer forging), the metal billet is inserted into the die and hammered with multiple blows. This process continues the billet is shaped into form. ... Press Forging – Press forging uses a slower and continuous pressure to shape metal into a certain shape.

Is chrome vanadium drop forged?

So many of our products are made of drop-forged, heat-treated Chrome Vanadium steel, which is exceptionally durable and will last for decades.

What flakes off during forging?

Hammerscale, also written hammer scale, is a flaky or spheroidal byproduct of the iron forging process (for modern equivalent, see mill scale). Hammerscale is almost universally recovered from archaeological excavations in areas where iron ore was refined and forged.

Are Hammers forged or cast?

Casting of hammer produces grains in it. ... Coarser grains in hammer casting have inferior mechanical properties. Forged hammer has fibrous structure, do not have grains inside. It has better mechanical properties and crack propagation is lesser.

What is cold forging?

Cold forging is one of the most widely used chipless forming processes, often requiring no machining other than drilling. The commonly accepted definition is the forming or forging of a bulk material at room temperature with no heating of the initial slug or inter-stages.

What are the advantages of press forging over drop forging?

The main advantage of press forging, as compared to drop-hammer forging, is its ability to deform the complete workpiece. Drop-hammer forging usually only deforms the surfaces of the work piece in contact with the hammer and anvil; the interior of the workpiece will stay relatively undeformed.

Which is better forged or cast?

Forged steel is generally stronger and more reliable than castings and plate steel due to the fact that the grain flows of the steel are altered, conforming to the shape of the part. ... The tight grain structure of forgings making it mechanically strong.

What is upsetting in forging operation?

Upset forging process

Upset forging involves holding pre-heated material between grooved dies, also known as 'grip dies'. Pressure is then applied to the end of the bar in the direction of its axis. The heading tool upsets the end of the bar by displacing the heated metal within a cavity.

How is drop forging done?

Drop forging is a manufacturing process whereby a hammer is lifted and then 'dropped' onto a heated piece of metal to reshape it into the shape of the die/tool. Pre-heating the metal softens the structure of the metal. This means it can be deformed in a controlled manner into the desired shape.

Which is stronger chrome vanadium or carbon steel?

Chromium-vanadium steel(Cr-V)

It has better strength and toughness than carbon steel, so it is a great material for high quality tools. Commonly used for wrenches, screwdrivers, manual sleeves generally use 50BV30 chrome vanadium steel.

Can you forge chrome vanadium steel?

"Chrome Vanadium" describes 80CrV2, but it also describes 4340, 410 SS, and so on. Yes, they are hardenable (or they'd be terrible wrenches), but that doesn't mean they're cutlery grade steel. Also: Never ever forge plated steel.

Is Chrome Vanadium stainless?

These knives are constructed with our Chrome Vanadium (CV) steel which is known for their edge-holding ability and easy re-sharpening. ... However, they are less resistant to rusting, pitting and discoloration than stainless steel.

What is press forging?

Press forging may be defined as the process of shaping a metal that is placed between two dies by applying mechanical or hydraulic pressure. Press forging is usually done on a forge press - a machine that applies gradual pressure on the forging dies. ... Press forging is suitable for high volume productivity of forgings.

What for swage block is used in smithy shop?

The swage block is supported on a cast iron base. It is specified according to size of block or by weight. cutting edge at the top of body. During cutting or shearing operations, chisels are used in conjunction with this bottom cutting tool.

Why press forging is preferred over hammer forging?

There are many advantages of press forges but the biggest is its ability to deform the workpiece. Hammer forging can only affect the surface of the workpiece whereas press forging can change the shape and interior of the workpiece at the same time. ... Another advantage of press forging is that it is more efficient.

Why is drop forging used to make spanners?

Because of the high speed of forging hammer and the high variation of wrench shape, the internal structure of wrench is fully changed and the forging density is increased. Therefore, the spanner wrench forged by CNC closed die drop forging hammer has high hardness and strong wear resistance.

What are drop hammers?

A steam hammer, also called a drop hammer, is an industrial power hammer driven by steam that is used for tasks such as shaping forgings and driving piles. ... In the 20th century steam hammers were gradually displaced in forging by mechanical and hydraulic presses, but some are still in use.

How are spanners manufactured?

Most types of spanner are made using the drop forging process. Steel rods are cut into short lengths, called billets, and each one is passed through an induction heating coil which uses electromagnetism to heat the metal to about 1000 degrees Celsius. ... The upper die drops onto the billet, forcing it into shape.
