The most common type is the K type thermocouple which uses chromel and alumel metal alloys for the two types of metal. Well, it turns out that most grades of chromel used in thermocouples. ... It matters, because thermocouples are DC, so there is a polarity.

What is thermocouple sensitive to?

It can be used for cryogenic applications (1.2–300 K and even up to 600 K). Both the sensitivity and the temperature range depend on the iron concentration. The sensitivity is typically around 15 µV/K at low temperatures, and the lowest usable temperature varies between 1.2 and 4.2 K.

What happens if you connect a thermocouple backwards?

Problems Related to the Thermocouple Extension Wire

If you accidentally reverse the polarity of the thermocouple lead wires, the measured temperature will be incorrect by the difference in temperature of the two ends of the leads.

Which side of thermocouple is positive?

The insulation on thermocouple wire is color coded for identification. Common guidelines include that the negative lead in insulated thermocouple wire is red. The positive lead has the color of the thermocouple as well as the overall color of insulated extension grade wire.

How do you determine the polarity of a thermocouple?

You can easily test the polarity of a Type K thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.

How Thermocouples Work - basic working principle + RTD

Do thermocouples have a polarity?

It matters, because thermocouples are DC, so there is a polarity.

Are thermocouples polarized?

Thermocouples are polarized and will not give an accurate reading if the leads are switched.

Which wire on a thermocouple is magnetic?

Positive (iron) wire is magnetic (white), negative is non-magnetic (red).

How are thermocouples wired?

A thermocouple is composed of two wires made from dissimilar metals. These two wires are joined to form a temperature measurement junction. Each wire is made of a specific metal or metal alloy. ... Wire used to make a thermocouple junction is called thermocouple wire.

What will happen if a thermocouple compensating cable is connected with the wrong polarity?

Thermocouple/Compensating Cable

If you mistakenly connect polarity from the terminal box etc to the terminal of the receiving instrument, the difference between the temperature of the terminal box part and the temperature of the receiving instrument terminal affects the error.

Can you parallel thermocouples?

Multiple thermocouple junctions can be connected in parallel with each other to generate a voltage signal representing the average temperature between the junctions. ... It is imperative that current in a thermocouple circuit be kept as low as possible for good measurement accuracy.

Can a thermocouple touch metal?

No. The thermocouple is a selfcontained generator and the current is carried by the internal wire. If the tip gets too hot, or not hot enough, that will disrupt the current and cause the pilot to go out, but it has nothing to do with when the thermostat turns off or on.

Which type of thermocouple is more sensitive?

Type E Thermocouple (Nickel-Chromium/Constantan): The Type E has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.

Is thermocouple active or passive?

A thermocouple is instance of active transducer. Active transducer generates output in form of voltage and electric powered signals. 2. ... Strain gauges, capacitive transducer, thermistors are examples of passive transducer.

What color is positive on a thermocouple?

Thermocouple Wire Identification

You will see in the table below, that commonly, negative wires are red, the outer sheath for thermocouple grades is brown and the positive lead is color coded according to thermocouple type.

How do you identify a thermocouple type?

To determining whether a sensor may be a thermocouple or an RTD is to measure the resistance using a Volt Ohm Meter. If the sensor has two lead wires, measure the resistance between the two leads. If the sensor is a thermocouple, you are just measuring the resistance of that length of wire.

How accurate is K type thermocouple?

The accuracy of a K type Thermocouple is typically a maximum of +/- 2.2°C or +/- 0.75%, whichever is greater.

How does type K thermocouple work?

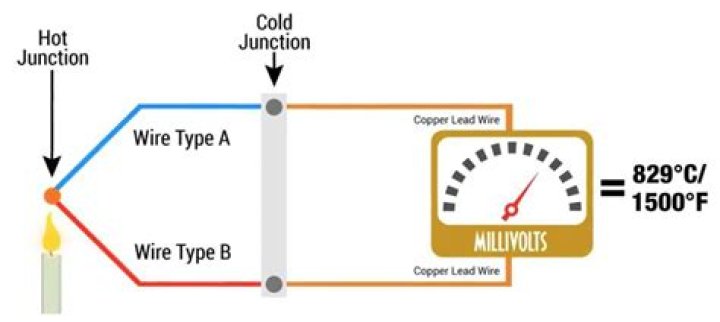

A thermocouple circuit contains the two alloy junctions, wire sand connectors and a voltage measuring device. When the two junctions are experiencing different temperatures, measurable current flows through the circuit. ... The other junction, the "hot junction," is exposed to the environment to be measured.

Are thermocouples linear?

The potential produced by a thermocouple as a function of temperature difference between its two ends is very nearly linear, over a very wide range. The following curve is the "standard response curve" for a type-K thermocouple. The deviations from perfect linearity are significant, however.

What is the limitations of thermocouple?

Even though a thermocouple probe is the perfect choice for many applications, there are some limitations including the following: Thermocouples are not as accurate as RTDs in a certain set temperature range. Thermocouples are susceptible to drift over time. Thermocouples, when badly insulated, are vulnerable to ...
