A turning point could be an inflection point, but it could also refer to a sudden change. Inflection points are generally gradual. Also, there is nothing about a turning point that implies that things will be going in the opposite direction, whereas inflection points do have that kind of implication.

Are turning points the same as points of inflection?

Note: all turning points are stationary points, but not all stationary points are turning points. A point where the derivative of the function is zero but the derivative does not change sign is known as a point of inflection, or saddle point.

How do you find the inflection points and turning points?

Finding Stationary Points and Points of Inflection

Differentiating once and putting f '(x) = 0 will find all of the stationary points. Examining the gradient on either side of the stationary point will determine its nature, i.e. Maximum, minimum or point of inflection.

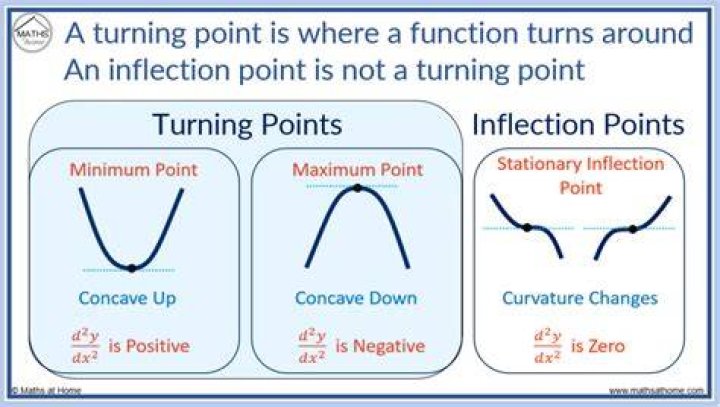

What are turning and inflection points?

Inflection points that are not horizontal points of inflection represent the largest gradient between two stationary points. It represents the point where the concavity changes, such as a transition from a minimum turning point to a maximum turning point.

What do inflection points indicate?

Inflection points are points where the function changes concavity, i.e. from being "concave up" to being "concave down" or vice versa. They can be found by considering where the second derivative changes signs.

Concavity, Inflection Points, Increasing Decreasing, First & Second Derivative - Calculus

What is inflection point in titration?

An inflection point in the titration curve: occurs during a titration when one equivalent of base is added to a weak acid solution. is a point near which more base can be added without changing the pH significantly.

Do inflection points have to be in the domain?

Explanation: A point of inflection is a point on the graph at which the concavity of the graph changes. If a function is undefined at some value of x , there can be no inflection point. However, concavity can change as we pass, left to right across an x values for which the function is undefined.

Are all points of inflection stationary points?

A point of inflection occurs at a point where d2y dx2 = 0 AND there is a change in concavity of the curve at that point. For example, take the function y = x3 + x. ... This means that there are no stationary points but there is a possible point of inflection at x = 0.

What is turning point in calculus?

A turning point is a point at which the derivative changes sign. A turning point may be either a relative maximum or a relative minimum (also known as local minimum and maximum). If the function is differentiable, then a turning point is a stationary point; however not all stationary points are turning points.

What are turning points?

A turning point is a point of the graph where the graph changes from increasing to decreasing (rising to falling) or decreasing to increasing (falling to rising). A polynomial of degree n will have at most n – 1 turning points.

Do points of inflection have a gradient of 0?

Not all points of inflection (inflection points) are stationary points. The gradient of the tangent is not equal to 0. At the point of inflection, f′(x)≠0 f ′ ( x ) ≠ 0 and f′′(x)=0 f ′ ′ ( x ) = 0 .

What is difference between point of inflection and saddle point?

Saddle Point: A point of a function or surface which is a stationary point but not an extremum. Inflection Point: An inflection point is a point on a curve at which the sign of the curvature (i.e., the concavity) changes.

How many points of inflection does a cubic polynomial have?

The graph of a cubic function always has a single inflection point. It may have two critical points, a local minimum and a local maximum.

What is a non stationary point of inflection?

Categorization of points of inflection

A stationary point of inflection is not a local extremum. ... An example of a non-stationary point of inflection is the point (0, 0) on the graph of y = x³ + ax, for any nonzero a. The tangent at the origin is the line y = ax, which cuts the graph at this point.

Is Vertex and turning point the same thing?

The vertex is the turning point of the graph. We can see that the vertex is at (3,1) ( 3 , 1 ) . The axis of symmetry is the vertical line that intersects the parabola at the vertex.

How do you tell if a turning point is maximum or minimum?

The location of a stationary point on f(x) can be identified by solving f'(x) = 0. To work out which is the minimum and maximum, differentiate again to find f''(x). Input the x value for each turning point. If f''(x) > 0 the point is a minimum, and if f''(x) < 0, it is a maximum.

What is a minimum turning point?

A minimum turning point is a stationary point that has a gradient of 0 and has a negative gradient on the left side of the stationary point and a positive gradient on the right side of the stationary point. ​ We can use the sign test to prove (0,0) is a minimum turning point in the graph y=x^2.

Is stationary point the same as critical point?

Notice how, for a differentiable function, critical point is the same as stationary point. ... This means that the tangent of the curve is parallel to the y-axis, and that, at this point, g does not define an implicit function from x to y (see implicit function theorem).

Why is it written d2y dx2?

It is now perfectly legal to divide on both sides by (dx)2, obtaining d2fdx2=f″(x). The d is meant to represent the "change in". And the Leibniz notation is meant to remind you that you are computing the ratio between the change in y and the change in x.

Do inflection points have to be continuous?

A point of inflexion of the curve y = f(x) must be continuous point but need not be differentiable there.

What is point of inflection in maxima and minima?

An inflection point is a point on a curve at which the sign of the curvature (i.e., the concavity) changes. Inflection points may be stationary points, but are not local maxima or local minima. For example, for the curve plotted above, the point.

Where do inflection points exist?

An inflection point is a point on the graph of a function at which the concavity changes. Points of inflection can occur where the second derivative is zero. In other words, solve f '' = 0 to find the potential inflection points.
