A hip roof is self-bracing, requiring less diagonal bracing than a gable roof. Hip roofs are thus much more resistant to wind damage than gable roofs. Hip roofs have no large, flat, or slab-sided ends to catch wind and are inherently much more stable than gable roofs.

What supports a hip roof?

The connections between the hip rafters and the bearing at the corners are critical. The International Residential Code (IRC) does not address the requirements for such a roof and instead requires that hip (and valley) rafters be supported at the ridge by a "brace to a bearing partition" (paragraph R802. 3).

Do hip roofs have load bearing walls?

Hip Roofs. ... In hip roof designs, all four exterior walls support the ends of roof rafters, so all exterior walls bear a weight load from the roof above them. Interior load-bearing walls may also support the roof as they do in gable roof designs.

Is a hip rafter load bearing?

In general the hip valley rafter needs to be one to two sizes larger than the jack rafters, if you can add a few support braces. However there is typically no load bearing wall under the hip valley rafter needed for support.

Does a hip roof need ceiling joists?

The thrust to worry about is at the tails of the common rafters. If you build a square hip roof, you can do it without ceiling joists.

How does a hipped roof work?

What is the advantage of a hip roof?

Pros: Hip roofs are more stable than gable roofs. The inward slope of all four sides is what makes it sturdier and more durable. Hip roofs are excellent for both high wind and snowy areas. The slant of the roof allows snow to easily slide off with no standing water.

Is a hip roof strong?

Hip roofs in regions prone to high winds or strong storms should have an angle between 18.5° and 26.5°. Because of the slope of the sides, hip roofs are extremely sturdy. They're more stable than the average gable roof.

What are 3 advantages of a hip roof?

• High Wind Performance. Hips roofs are a solid choice for high winds. ...
• Hip Roof vs. Gable Roof for Insurance. ...
• Easy to Build. From a builder's perspective, hip roofs are easier to construct. ...
• Snow Performance. ...
• Attic Space. ...
• Expense. ...
• Less Expensive. ...
• Ventilation.

Does a hip roof need rafter ties?

A hipped roof can be designed without rafter ties or internal columns by using the wall plates as tension members and the roof deck for stability. Without roof deck, the four hip members together with a four foot long ridge beam form an unstable structure when hinged at all six nodes.

Can you vault a ceiling with a hip roof?

When well-executed, a hip roof on a detached porch can provide a dramatic vaulted ceiling.

Do hip roofs have trusses?

A hip roof is a kind of roof whose slides come with a gentle slope and it tends to slope down toward the walls. Hip roofs require an extremely complicated system of trusses and rafters. This kind of roof doesn't have any vertical slides or gables. ... Jack truss: The jack truss runs right into the hip truss.

Are hip roofs more expensive?

Hip roofs are more expensive to build than gable roof because it is a more complex design that requires more building materials including a complex system of trusses or rafters.

How do hip roofs work?

A hip roof design refers to a roof where the roof sides slope downwards from a middle peak, with the rafter ends meeting the exterior walls of the house. Each of the four sides of the roof slope downward, there are no upright or vertical parts, no gables, etc., on a hip roof.

What are hip rafters?

: the rafter extending from the wall plate to the ridge and forming the angle of a hip roof.

Can you turn a gable roof into a hip roof?

Existing gable roofs can be converted into a hip roof without completely dismantling the entire roofing system. Building a hip roof from scratch will cost more, as it will require more roofing materials. ... Hip roofs require more work if it will be used as an extension, as it will require the addition of dormer windows.

What is a Perling?

A purlin (or historically purline, purloyne, purling, perling) is a longitudinal, horizontal, structural member in a roof. In traditional timber framing there are three basic types of purlin: purlin plate, principal purlin, and common purlin.

What are the disadvantages of a hip roof?

• A hip roof must be at a specific pitch in windy areas. ...
• It is more expensive to build a hipped roof. ...
• Ventilation in a hipped roof is challenging to achieve. ...
• There is less room inside the roof space. ...
• Hipped roofs provide fewer opportunities to use natural light.

Are hip roofs bad?

Though hip roofs are sturdier and can be more reliable than gable roofs, they are costly in comparison to a gable roof, as the design style is complex and utilizes considerably more construction materials, and if dormers are included within a hip roof's design, there will be added seaming and other areas where water ...

Do hip roofs leak?

Heavy Risk of Leaks

Heat-welded seams will perform better, but the huge number of seams you will use will not remove the risk of leaks from your hip roof.

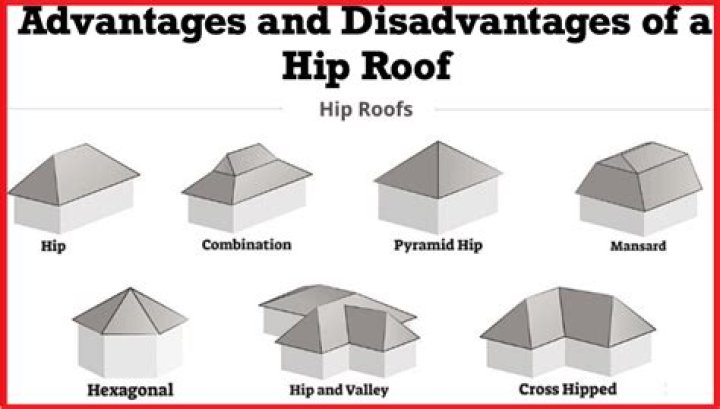

What are the advantages and disadvantages of hip roofs?

• Advantages: The four-way slope makes it much more stable than other roofing types, and allows water and snow to run off with ease. ...
• Disadvantages: Hip roofs are more complex than flat or gable roofs, making the odds of failure a bit higher.

Are hip roof stronger than gable?

A hip roof slopes inward on all sides. It is stronger than a gable roof in hurricane resistance because it doesn't have a triangular gable end wall that often fails under the pressure of high winds. Also, hip roofs are self-bracing.

Are hip roofs cheaper than gable?

Hip Roof vs Gable Roof Cost

Due to the fact that a hip roof requires a more complicated design and build, a hipped roof will cost more than a gabled roof. Hip roofs require more materials, additional seams, more planning, and more labour than the construction of a gabled roof.

Where are hip roofs used?

Half-hipped roofs are very common in England, Denmark, Germany and especially in Austria and Slovenia. They are also typical of traditional timber frame buildings in the Wealden area of South East England. Half hip roofs are sometimes referred to as "Dutch hip", but this term is easily confused with "Dutch gable".
