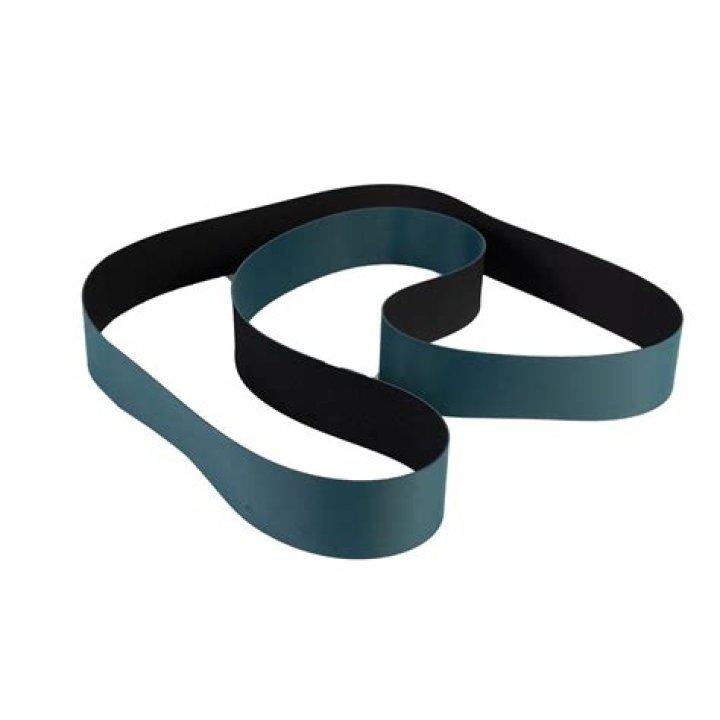

It's universal at a reasonable price. All you need to know is the size of your dryer belt. ... if you search dryer drive belts you will find out that they sell three different size belts.

Are dryer belts the same size?

Typically, a standard size belt will be a few inches longer than double the conveyor dryers length. For example, an 8 foot dryer might have a belt that is 16 feet, 3 inches (195” overall).

Is it easy to replace a dryer belt?

One of the most common causes for a clothes dryer to fail is a broken drive belt on the dryer drum. This is an easy do it yourself repair, which uses very few tools, and can save a lot of money.

What size belt does a Maytag dryer take?

Dryer drum drive belt. The belt is flat, 92-1/4 inches long, 1/4 inch wide and has 4 ribs and 3 grooves. It replaces many other belts, including some with 5 ribs and 4 grooves. If the drum does not turn, but you can hear the motor running then there is a good chance the belt has broken.

Can you use a dryer without a belt?

If the dryer drum still turns when the unit is turned on then what you pulled out is not the drive belt! On the other hand the belt could have torn in which case the motor will no longer be able to turn the drum. Clearly you would not be able to ignore and run the dryer without the belt.

How to Replace Dryer Belt on Any Front Load Clothes Dryer

How much should it cost to replace a dryer belt?

Dryer Belt Replacement

Replacing a dryer belt costs about $200 if you hire a pro, or $10 to $20 for DIY.

What size belt does a Whirlpool dryer take?

Size: Length 92-1/4", Width 1/4". 4 rib. This belt fits most Whirlpool made dryers (Whirlpool, Kenmore with prefix 110, Roper, KitchenAid, and Estate).

What size belt does a Kenmore dryer use?

Dryer drum drive belt. The belt is flat, 92-1/4 inches long, 1/4 inch wide and has 4 ribs and 3 grooves. It replaces many other belts, including some with 5 ribs and 4 grooves.

Why is my Maytag dryer squeaking?

Lint build up inside the dryer can cause some squealing and squeaking of the dryer belt and pulleys. This may require a service call to remove the back panel and to thoroughly clean the inside of the dryer. As the dryer ages, the belt and pulleys can wear, causing some squealing type sounds.

What happens if dryer belt breaks?

When Belt Breaks

Over time, wear can weaken the belt until it reaches its breaking point. When a dryer belt breaks, the drum no longer turns to tumble the clothes in the dryer's hot air. This means clothes won't dry even if the dryer's heater and electric motor continue to function.

What causes a dryer belt to break?

A dryer belt wrapped around the drum's exterior causes it to turn. Over time, the belt will wear out and eventually break, which will prevent the drum from rotating, and the dryer from functioning properly.

How do you fix a broken belt on a dryer?

1. Shut off the power. Unplug the dryer. ...
2. Raise the top panel. Pull the lint screen out of the housing in the top panel of the dryer. ...
3. Remove the front panel. ...
4. Remove the drive belt. ...
5. Install the new drive belt. ...
6. Reinstall the front panel. ...
7. Reassemble the top panel. ...
8. Restore power to the dryer.

How do you replace dryer belt?

1. Step 1: Lift the Lid, and Inspect the Belt.
2. Step 2: Remove the Front Cover.
3. Step 3: Cut the Belt, and Remove the Drum.
4. Step 4: Place the Belt Around the Drum.
5. Step 5: Set the Drum Into the Dryer.
6. Step 6: Attach the Pulley, and Replace the Front of the Dryer.

Are Kenmore and Whirlpool the same?

Whirlpool makes washing machines, dishwashers, and refrigerators that bear the Kenmore badge. In addition to Whirlpool-branded appliances, the company also manufactures Amana, Jenn-Air, KitchenAid, and Maytag kitchen and laundry appliances.

How many years does a dryer last?

The average clothes dryer lasts between eight and 12 years, according to Angie's List. But the more you use that dryer, the shorter its lifespan is likely to be. Also, a higher-quality dryer is likely to outlast a cheaper model with inferior components.

How long is a 341241 dryer belt?

The 341241 Multi Rib Belt is 1/4" wide, and 92 1/4 inches in length, features 4 ribs and 3 grooves, however it replaces a wide variety of belts including wider styles that had five ribs and four grooves.

Do dryer belts go bad?

A Bad Belt Has To Be Replaced

When the belt can't turn the drum, sometimes the motor is to blame. If the motor is fine and the belt is loose or broken, the repair person will open the dryer top and front to reach the belt and drum.

Can a dryer belt cause a fire?

The burning smell from your dryer may be lint buildup or another common problem—such as a failing thermostat, motor, or belt. ... About a third of those fires are caused by excess lint buildup inside the dryer, so it's time to investigate.

Why does my dryer sound like it has rocks in it?

The rumbling or thumping sound could be caused by worn drum support rollers. The drum rollers support the dryer drum on some models and makes of dryers (like those made by Kenmore or Whirlpool.) ... To access the two back dryer drum support rollers, you will need to remove the dryer drum from the cabinet.
