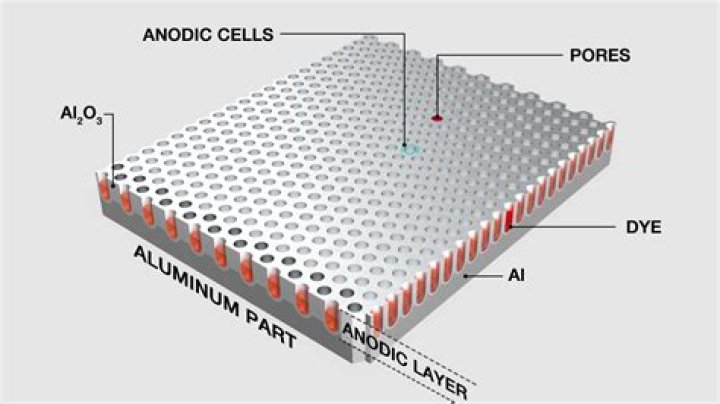

Aluminum Anodizing is an electrochemical process that creates a thin aluminum oxide film on the surface of aluminum substrates. The resulting anodized film is electrically non-conductive, protects the aluminum against corrosion and is resistant to wear.

Does anodizing affect conductivity?

No. 9 – Does Anodized Aluminum Have High Electrical Conductivity? No, it does not. Aluminum is highly conductive by itself; however, the oxide layer has physical and chemical properties resembling a ceramic.

Is anodizing thermally conductive?

Thermal conductivity of aluminum anodic oxide layer was measured. Measured thermal conductivities fell in the range of 0.53–1.62 W m⁻¹ K⁻¹. Both chemical composition and porosity were affected the thermal conductivity.

Is anodizing an insulator?

Heat Resistance

The aluminium oxide coating produced by anodising is a good insulator where good heat dissipation is required.

What are anodic coatings?

An anodic coating is a type of coating material that utilizes anodizing to provide increased thickness, color and protection to aluminum or any type of substrate. This coating consists of the oxide film that is created on metal through electrolysis, with the metal acting as an anode.

What is Aluminium Anodizing and How Does It Work | Anodizing Process Overview

What is the difference between anodic and cathodic coating?

The main key difference between anodic and cathodic metal coating is given below. Anodic means positively charged conductor and cathodic means negatively charged conductor. ... anodic coating, it protects the base metal from corrosion while in cathodic coating prevents the metal from getting corroded.

Why is anodic coating preferred over cathodic coating?

Galvanized containers cannot be used for storing acidic foodstuffs as zinc reacts with food acid forming poisonous compounds. ... Tinning is cathodic coating whereas Galvanizing is anodic coating so cathodic coating is preferred over anodic coating for manufacturing of containers to store food stuff.

Does anodizing provide electrical insulation?

The anodized surface provides increased corrosion and wear resistance, can be easily dyed a wide variety of colors, provides electrical insulation, and is an excellent basecoat or primer for secondary coatings.

Does anodizing electrically insulate?

Anodize and hardcoat anodize are very good electrical insulators. ... In practice, the coating quality and thickness, base aluminum alloy, surface finish, sealing method, racking technique, and part geometry all effect the insulating properties.

What does anodizing do to aluminum?

Anodizing is an electrochemical process that converts the metal surface into a decorative, durable, corrosion-resistant, anodic oxide finish. ... This aluminum oxide is not applied to the surface like paint or plating, but is fully integrated with the underlying aluminum substrate, so it cannot chip or peel.

Does anodized aluminum conduct heat?

The color of anodization has no impact on radiation heat transfer. A clear anodized surface has the same emissive characteristics as a black anodized surface.

Why are heat sinks anodized?

Anodization improves the corrosion resistance, wear resistance, and electrical isolation of a heat sink. It will increase surface emissivity as well. ... If your heat sink is large, the improved radiation heat transfer makes less of a difference.

Is anodized aluminum electrically conductive?

These coatings are highly adherent, transparent, and relatively inexpensive. Anodized aluminum components can be treated to make them sufficiently elec- trically conductive to suppress discharges of static electricity.

How do you make aluminum non-conductive?

To make it REALLY non-conductive, a true insulator you can powder coat with epoxy. Another option is dip coat with PVC. There are many options - what is best depends on the application requirments. Durability, UV (sun ) exposure, voltage to be applied.

Is hardcoat conductive?

Many products benefit from Hard-Coat Anodizing including Telecommunications, Medical, and Industrial. Hard Anodized aluminum is non-conductive to electricity; consequently, areas requiring conductivity will need selective masking.

Does anodizing aluminum affect the conductivity?

Aluminum Anodizing is an electrochemical process that creates a thin aluminum oxide film on the surface of aluminum substrates. The resulting anodized film is electrically non-conductive, protects the aluminum against corrosion and is resistant to wear.

What is hard anodizing?

Hard anodizing is the term used to describe the functional refinement of aluminum components as anode in special, cold electrolytes. This process is sometimes also referred to as hard coat anodizing. Hard anodizing creates very thin, non-metallic conversion coatings.

What are the different types of anodizing?

There are different types of anodizing, most commonly referred to as Type I-Chromic Acid Anodize, Type II-Sulfuric Acid Anodize, and Type III Hard Anodize or Hardcoat from the Mil-A-8625 designation. Other less common types are phosphoric acid and titanium anodize.

What is anodic and cathodic reactions?

The first is the anodic reaction, in which a metal is oxidized, releasing electrons into the metal. The other is the cathodic reaction, in which a solution species (often O₂ or H⁺) is reduced, removing electrons from the metal.

What is anodic and cathodic protection?

The cathodic protection involves reverse the flow of current between two dissimilar electrode. The anodic protection involves suppression of anodic reaction by adjusting potential of the more reactive metal. The cathodic protection can be achieved by sacrificial method and impressed current method.

What are cathodic and anodic inhibitors?

Cathodic inhibitors are used for slowing down the cathodic reaction. ... Another example of a cathodic inhibitor includes nickel's catalyzed redox reaction. 2. Anodic Inhibitor. These are another category of corrosion inhibitors that helps in the formation of a thin preventive oxide layer on the metal's surface.

Which of the following is an example of anodic coating?

Zinc, aluminum, and cadmium are examples of anodic coatings.

What is an anodic site?

ANODE - the metal or site on the metal where oxidation occurs (loss of electrons). The anode has a more negative potential with respect to (wrt) the cathode and is termed less noble wrt the cathode. ... CATHODE - the metal or site on the metal where reduction occurs (gain of electrons).

What is cathodic coating?

Cathodic coatings involve coating metal, which is cathodic with respect to the substrate in an electrochemical cell. The purpose of this type of coating is to protect the substrate from corrosion. In corrosive environments accelerated corrosion of the substrate occurs if cathodic coating fails to protect the substrate.
